Description:

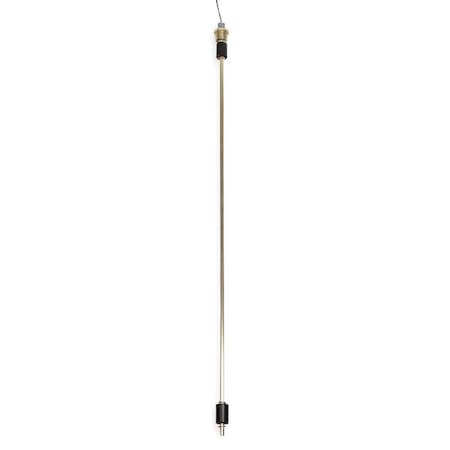

Drum Liquid Level Switch, Switch Function Selectable, Vertical Open Tank Mounting, Tank Connection Size 3/4 in NPT, Max. Pressure 150 psi, VA Rating 30, Operating Temp. Range 221 Degrees F Max, Overall Length 32.94 in, Float Material Buna N, Float Length 1.25 in, Float Dia. 0.9 in, Stem Material Brass, Stem Length 32.0 in, Height 32.0 in, Width -, Contact Form SPST, Max. Current 0.28 A, Max. Voltage 240 V, Body Material Brass, Conduit Size 3/4 in
Attributes
| Key | Value |
|---|---|
| Body Material | Brass |
| Conduit Size | 3/4 in |
| Contact Form | SPST |
| Electrical Connections | 22 AWG, Halar-jacketed, 72 in Leads |
| Float Dia. | 0.9 in |
| Float Length | 1.25 in |
| Float Material | Buna N |
| Float Specific Gravity | 0.5 |
| Float Switch Contact Form | SPST |
| Float Switch Float Material | Buna-N |
| Height | 32.0 in |
| Item | Drum Liquid Level Switch |
| Max. Current | 0.28 A |
| Max. Pressure | 150 psi |
| Max. Voltage | 240 V |
| Mounting | Vertical Open Tank |
| Operating Temp. Range | 221 Degrees F Max |
| Overall Length | 32.94 in |
| Stem Length | 32.0 in |
| Stem Material | Brass |
| Switch Function | Selectable |
| Tank Connection Size | 3/4 in NPT |
| VA Rating | 30 |
| Voltage | 240VAC |
