MAGNECRAFT 389FXBXC1-120A

B00DECXS0U

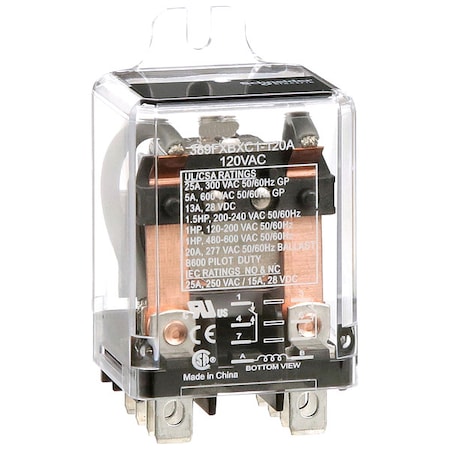

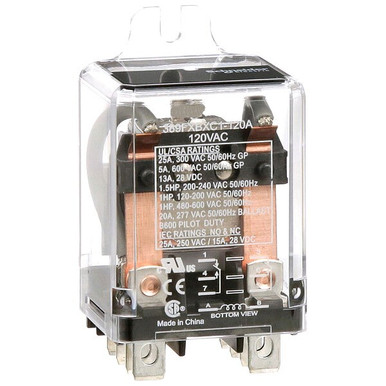

Enclosed Power Relay, 8 Pin, 120Vac, Dpdt

Enclosed Power Relay, 8 Pin, 120Vac, Dpdtzoom

Attributes

Key Value
AC Contact Rating - Rel.25A @ 300V
Alternate Mfr Part Numb.I897186
Alternate Part No.528-389FXBXC1-120A
ApprovalsCE, CSA, UL
Bifurcated ContactNo
Body Depth1.4 in
Body Depth - Relay1.4 in
Body Height2.9 in
Body Height - Relay2.9 in
Body Width1.53 in
Body Width - Relay1.53 in
BrandSchneider Electric, Mag.
Catalog Number389FXBXC1-120A
Coil Rating3.5VA, 1.4W
Coil Resistance1.7 kOhms
Coil TerminationQuick Connect Terminal
Coil TypeNon-Latching, Power
Coil Voltage115 VAC ; 110/115/120/1.
Coil Volts120V AC
Contact Configuration2 NC + 2 NO
Contact Current Rating25 A
Contact FormDPDT, DPDT (2 Form C)
Contact Form - RelayDPDT
Contact MaterialSilver Alloy
Contact TerminationQuick Connect
Contact Voltage Rating300 VAC
ContactsDPDT
Control Voltage115
Country of OriginChina, 00 - Unknown
Current Rating25 A
Current Stock97
DC Contact Rating - Rel.13A @ 28V
Dimensions2.90"H, 1.53"W, 1.40"D
DiodeNo
Electrical Connection1/4" Tab Terminal
Electrical Connection -.1/4 in Tab Terminal
EnclosurePlastic
Family SeriesSchneider Relays, 389F .
FunctionGeneral Purpose
Gross Weight0.0022 lbs
Hz50/60
In-stock12
International ShippingNo
Item - RelayEnclosed Power Relay
Item Number389FXBXC1-120A
Item TypePower relay
Lead TimeExpected to ship in 1-2.
Made in USANo
ManufacturerSchneider, Schneider El.
Manufacturer Part No.389FXBXC1-120A
Manufacturer Part NumberC897186M
Max Current13 A
Mechanical LatchNo
MountingSide Flange, Flange
Mounting - RelaySide Flange
Mounting StyleSocket, Panel
Mounting TypePanel Mount
Mpn389FXBXC1-120A
Net Weight0.0022 lbs
Nominal Coil Voltage120 VAC
Number of Electrical Co.8
Number of Pins - Relay8
Number of Poles2
Overall Depth2.9 in
Overall Height - Relay2.9 in
Power Consumption3.5 VA/1.44 W
Power Consumption - Rel.3.5 VA
Primary TypePower Relays
ProductPower Relays
Product CategoriesRelays
Product CategoryGeneral Purpose Relays
Product Header389F Series Power Relay
Product Series389F
Published Coil Voltage110 VAC, 120 VAC
Push-to-TestNo
Rating @ 24/28/30 VDC13 A
Relay TypeElectromechanical
RoHSNo
RoHs StatusRohs
Safety GuidedNo
Series389F Series
SKUZO-G0335894
StandardsUL, CSA, CE
Status IndicatorNo
SubCategoryElectrical
Switching Voltage600 V
Termination.250 " Flat Blade, QC T.
Termination StyleQuick Connect Terminal
TypeStandard
Voltage Rating600 V
