Magnecraft / Schneider 389FXCXC1-120A

B07QBQCB7S

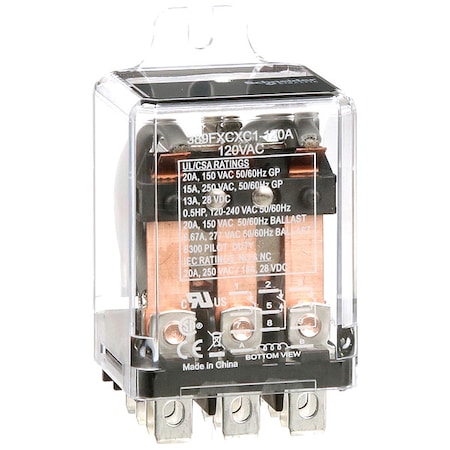

389FXCXC1-120A, Electromechanical Relay 110/120VAC 1.2KOhm 13ADC/20AAC 3PDT (73.82x38.89x35.72) mm Flange Power Relay

389FXCXC1-120A, Electromechanical Relay 110/120VAC 1.2KOhm 13ADC/20AAC 3PDT (73.82x38.89x35.72) mm Flange Power Relayzoom

Attributes

Key Value
AC Contact Rating - Rel.20 A @ 150V, 20A @ 150V
Alternate Mfr Part Numb.I897196
ApprovalsCE, CSA, UL
Bifurcated ContactNo
Body Depth1.4 in
Body Depth - Relay1.40 in, 1.4 in
Body Height2.66 in
Body Height - Relay2.9 in, 2.90 in
Body Width1.4 in
Body Width - Relay1.53 in
BrandSchneider Electric
Coil TypePower
Coil Voltage115 VAC ; 110/115/120/1.
Coil Volts120V AC
Contact Current Rating20 A
Contact Form3PDT
Contact Form - Relay3PDT
Contact MaterialSilver Alloy
Contact TerminationQuick Connect
Contact Voltage Rating300 VAC
Contacts3PDT
Control Voltage115
Country of Origin00 - Unknown
Current Rating20 A
Current Stock47
DC Contact Rating - Rel.13A @ 28V, 13 A @ 28V
DiodeNo
Electrical Connection -.1/4 in Tab Terminal
EnclosurePlastic
Family SeriesSchneider Relays, 389F .
FeaturesSide Flange and Flag In.
FunctionGeneral Purpose
Gross Weight0.2 lbs
HP @ 120V1/2 hp, 1/2
HP @ 240V1/2 hp, 1/2
Hz50/60
Hz - Electrical50 Hz, 60 Hz
In-stock45
International ShippingNo
Item - RelayEnclosed Power Relay
Item Number389FXCXC1-120A
ManufacturerSchneider
Manufacturer Part NumberC897196M
Max Current13 A
Mechanical LatchNo
MountingSide Flange, Side
Mounting - RelaySide Flange
Mounting StylePanel
Mounting TypePanel Mount
Mpn389FXCXC1-120A
Net Weight0.0022 lbs
Nominal Coil Voltage120 VAC
Number of Electrical Co.11
Number of Pins - Relay11
Overall Depth2.9 in
Overall Height - Relay2.9 in, 2.90 in
Package/Case389FSeries3PDT20
Pins11
Power Consumption3.5 VA/1.44 W
Power Consumption - Rel.3.5 VA
Primary TypePower Relays
Product CategoriesRelays
Product Header389F Series Power Relay
Product Series389F
Published Coil Voltage110 VAC, 120 VAC
Push-to-TestNo
Rating @ 24/28/30 VDC13 A
Relay TypeElectromechanical
RoHSNo
RoHs StatusLead free/RoHS Compliant
Safety GuidedNo
Series389F Series
SKUZO-G0816006
StandardsUL, CSA, CE Marked, CE .
Status IndicatorNo
SubCategoryElectrical
Switching Voltage300 V
Termination.250 " Flat Blade, QC T.
Voltage Rating150 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com389FXCXC1-120A22.3051342Magnecraft / Schneider Electric22.305 @ 1
gordonelectricsupply.com389FXCXC1120A33.591In Stock10SQUARE D33.59 @ 1
AmazonTPB00FV1T9ZA35.41In Stock2SCHNEIDER ELECTRIC35.4 @ 1
AmazonUNKB00FV1T9ZA35.41In StockSCHNEIDER ELECTRIC35.4 @ 1
thumbzoomsustainablesupply.comC120961135.641In StockSchneider Electric0.2135.64 @ 1
grainger.caWWG6CUZ739.607233421In StockSCHNEIDER ELECTRIC0.2139.60723342 @ 1
thumbzoomZoroG081600639.89164Schneider0.2139.89 @ 1
us.rs-online.com7018528841.22133Schneider Electric/Legacy Relays41.22 @ 1
Future Electronics101893543.810In StockSchneider Electric43.8 @ 10
thumbzoomNewark35M353548.051119SCHNEIDER ELECTRIC/LEGACY RELAY48.05 @ 1
thumbzoomGalco389FXCXC1-120A-MGCR48.64117Schneider0.248.64 @ 1
thumbzoomsimsupply.comZO-G081600650.57147Schneider Electric50.57 @ 1
Graybar2637401765.44161In StockSquare D (Schneider Electric)65.4416 @ 1
