- mpnE60L12DC-KO
- brandname: Magnitude
- manufacturername: Magnitude

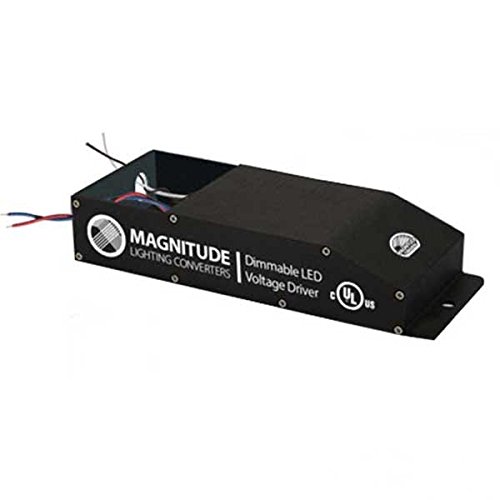

Magnitude Lighting Converters E60L12DC-KO 60W 12VDC Voltage Dimmable Class 2 LED Driver
- Brand: Magnitude
- PartNumber: E60L12DC-KO
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Magnitude
- Label: Magnitude
Attributes
| Key | Value |
|---|
| -30?C (-22?F) | Start Temp. (Min) |
| 0.61 A | Input Current |
| 0.95 | Power Factor |
| 1.0625 | Weight (lb.) |
| 1.26'' | Height (in) |
| 120VAC | Voltage (V) |
| 12V | Output Voltage |
| 2.67'' | Width (in) |
| 5.0A | Output Current |
| 50?C (122?F) | Start Temp. (Max) |
| 6.77'' | Length (in) |
| 60W Max | Output Power |
| Amps Rating | 5000 mA |
| Approval Agency | UL, FCC, CSA |
| Brand | Magnitude, Magnitude Li. |
| Case Quantity | 20 |
| Category | Power Supplies - Extern. |
| CE Certified | No |
| Constant Voltage | Type |
| Current - Output (Max) | 5A |
| Dimmable | Yes |
| Dimming | MLV, TRIAC |
| Dimming Control | MLV |
| E60L12DC-KO | Stock Code |
| Efficiency | up to 90%, 90% |
| Features | OCP, OVP, SS |
| For additional options . | Notes |
| Hard Wired LED Driver | Ballast Type: |
| Height | 1.26 in. |
| Input Current | 0.41 Amp |
| Input Voltage | 120, 120V |
| Input Wires (White \ Bl. | Lead Lengths |
| IP Rating | IP-67 |
| LED | Bulb Type |
| LED Voltage Drivers-UL . | Family |
| Length | 6.77 in. |
| Lighting Technology | LED |
| Location | Indoor, Outdoor |
| Magnitude | Brand |
| Material | Aluminum |
| Maximum Wattage | 60 Watt |
| Mfr | Magnitude Lighting |
| Mounting Type | Chassis Mount |
| MPN | E60L12DC-KO |
| MPN (Part No.) | E60L12DC-KO |
| NEMA | N/A |
| Number of Outputs | 1 |
| Operating Temperature | -30?C ~ 65?C |
| Other Certifications | Class 2 |
| Output Current | 3.5 Amps Max |
| Output Voltage | 12, 12V DC |
| Package | Box |
| Power (Watts) | 60 W |
| Power Factor | 0.95 |
| Product Category | Ballasts & Drivers |
| Product Height (in.) | 1.3 |
| Product Length (in.) | 6.77 |
| Product Rating | Wet Rated, NEMA 3R |
| Product Status | Active |
| Product Type | Power Supply |
| Product Warranty | 5 Years |
| Product Width (in.) | 2.67 |
| Ratings | NEMA 3R |
| Ratings and Certificati. | Indoor/Dry/Outdoor/UL |
| Series | E Series |
| Series/Collection | Magnitude Lighting E Se. |
| Size / Dimension | 6.77" L x 2.67" W x 1.3. |
| Standard Number | 8750, 15B, CSA C22.2 No. |
| Super compact ALUMINUM . | Housing |
| Termination Style | Wire Leads |
| Topology | Buck |
| Two Hole fl ange mounti. | Mounting |
| Type | Constant Voltage |
| UL 8750, class 2 | UL Listed |
| UL Listed | Yes |
| UPC | 857814006137 |
| Voltage - Input (Max) | 130VAC |
| Voltage - Input (Min) | 100VAC |
| Voltage - Output | 12V |
| Warranty | 5-Year Limited |
| Wattage Rating (W) | 60 |
| Weight | -, 1.1 lb. |
| Width | 2.67 in. |
| Wiring Type | Hardwired |
| Yes | Dimmable |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | beeslighting.com | E60L12DC-KO | 95.03 | 1 | 2 | | Magnitude Lighting | | 95.03 @ 1 |
| 1000bulbs.com | MAG-10003 | 96.55 | 20 | In Stock | | Magnitude | 1.1 | 96.55 @ 20 |
| Digi-Key | 16262241 | 105.45 | 1 | In Stock | | Magnitude Lighting | | 105.45 @ 1 |
 | bulbspro.com | E60L12DC-KO | 122.5 | 1 | In Stock | | Magnitude | | 122.5 @ 1 |
