Marathon Electric B607

B0042GFC0Q

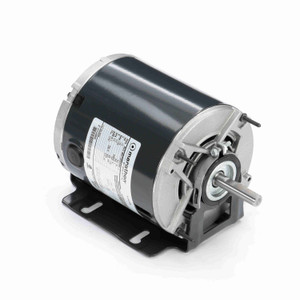

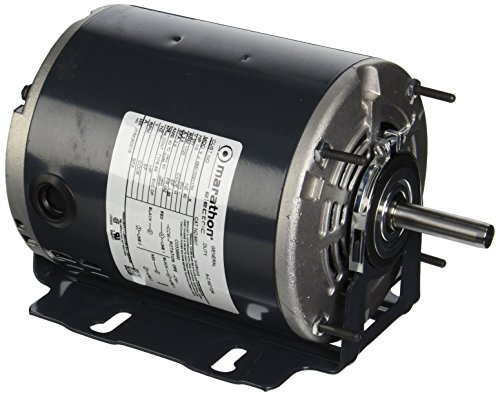

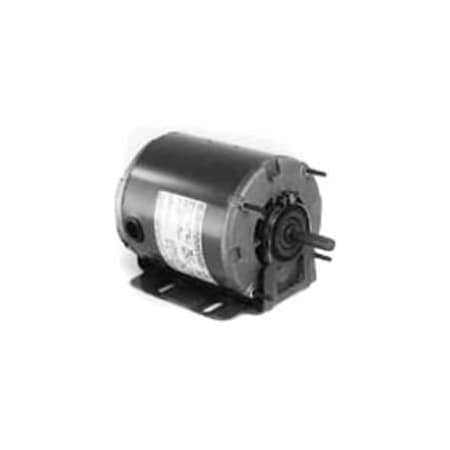

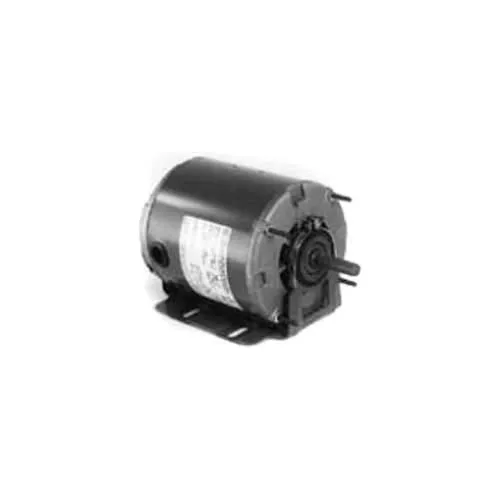

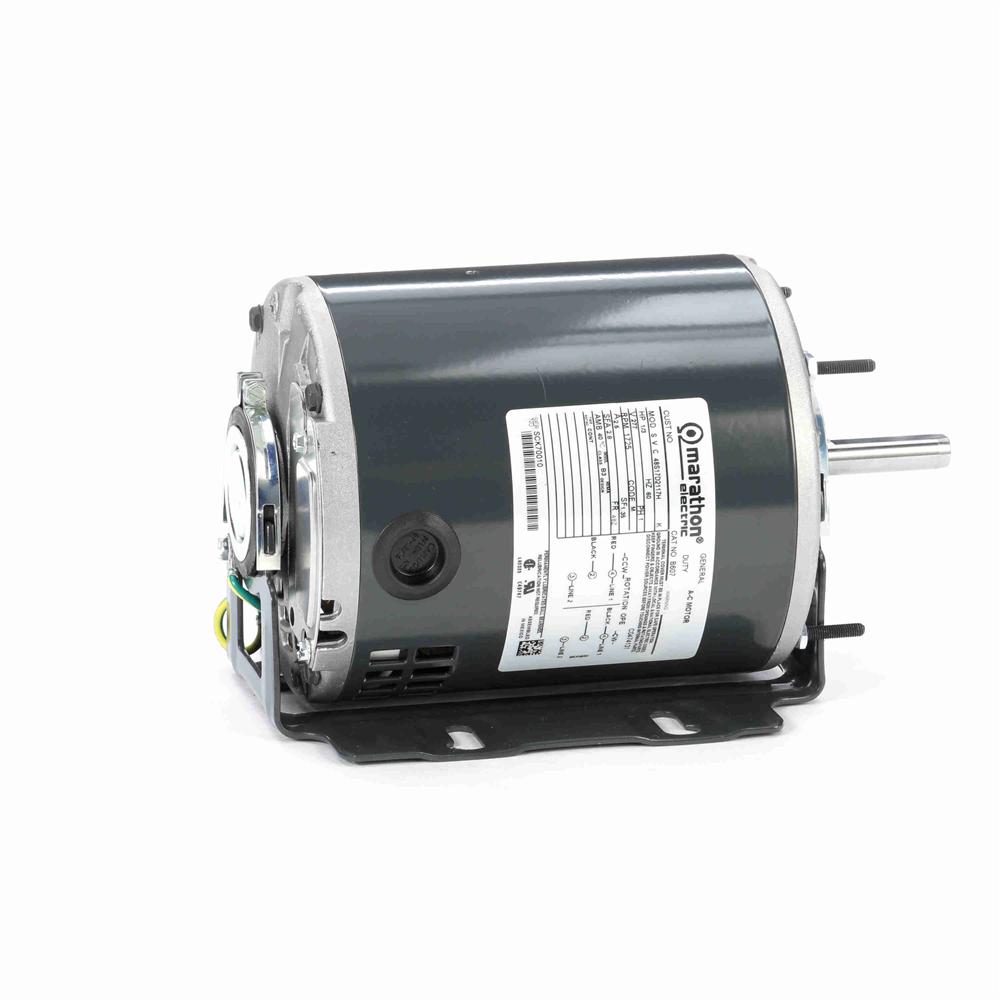

Marathon B607 48YZ Frame Open Drip Proof 48S17D2117 Belt Drive Motor, 1/3 hp, 1725 RPM, 277 VAC, 1 Split Phase, 1 Speed, Ball Bearing, Resilient Ring Mount

Marathon B607 48YZ Frame Open Drip Proof 48S17D2117 Belt Drive Motor, 1/3 hp, 1725 RPM, 277 VAC, 1 Split Phase, 1 Speed, Ball Bearing, Resilient Ring Mountzoom

Attributes

Key Value
Alternate Mfr Part Numb.048S17D2117
Amps2.5
ApprovalsCSA, UR
Bearing TypeBall
BearingsBall
BrandMarathon
C-Dimension9.72 (in.)
Catalog NumberB607
CEN
CompositionRolled Steel
Country of Origin (subj.United States
CSAY
DE Bearing TypeBall
DEM ReferenceNOHP
DutyContinuous
Duty CycleContinuous
Efficiency0.62
Efficiency %62 %
Electrical TypeSplit Phase
EnclosureODP, Drip Proof
Enclosure MaterialSteel
Enclosure TypeODP (Open Dripproof), D.
Family SeriesMarathon Electric Motors
Frame48Z
Frame MaterialRolled Steel
Frame Type48Z
Frequency60, 60 Hz
Gross Weight0 lbs
Horsepower1/3 hp
HP1/3
Hz60
Insulation ClassB
IP Code22
Item NumberB607
Kilowatts0.25 kW
KVA CodeM
ManufacturerMarathon Electric
Manufacturer Model #048S17D2117
Manufacturer Part Number048S17D2117
Max Ambient40?C
Maximum Ambient Tempera.40? C
Motor Diameter5-5/8"
Motor OrientationHorizontal
Motor Shell Length5.75"
MountingBase/Stud
Mounting OrientationHorizontal
Mounting TypeResilient Base - Extend.
NEMA Frame48Z
Net Weight15 lbs
Number of Poles4
Number of Speeds1
ODE Bearing TypeBall
Overall Length9.72", 9.72 "
Phase1
Product CategoryHVAC/R Motors > Fan an.
Product TypeSplit Phase
RotationReversible, Selective C.
RPM1725, 1700 - 1800, 1,72.
RPM (Nameplate)1725
RPM (Number of Poles)4 (1201 RPM to 1800 RPM)
Service Factor1.35
Shaft Diameter0.5 ", 1/2 (in.), 1/2"
Shaft Extension1.97 (in.)
Shaft Length1.97"
Shaft TypeSingle Special Extension
Ship Weight15 lbs.
Speeds1
Type of Overload Protec.No
ULRecognized
Voltage277
Voltage (AC)277 VAC
Volts277

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comB607165.01In StockMARATHON165.0 @ 1
thumbzoomapexindustrialautomation.comB607219.85124Marathon219.85 @ 1
thumbzoomGalcoB607-MARA225.631In StockMarathon Electric15.0225.63 @ 1
thumbzoomMRO Supply2269654228.291In StockMarathon Electric228.29 @ 1
thumbzoomcshincorporated.comMB607235.411In StockMarathon15.0235.41 @ 1
us.rs-online.com72650177254.161In StockMarathon Motors254.16 @ 1
thumbzoomDreisilkerMA-RBC-B607278.81In StockMarathon278.8 @ 1
thumbzoomemotorpro.comB607279.491In StockMarathon15.0279.49 @ 1
thumbzoommidwestapplianceparts.comB607-MT-P289.881In StockMarathon289.88 @ 1
thumbzoomGlobal IndustrialWBB871796299.951In StockMarathon Motors299.95 @ 1
thumbzoomNational Supply NetworkB871796303.941In StockMARATHON MOTORS303.94 @ 1
thumbzoomZoroG204954434511.831In StockMarathon Motors511.83 @ 1
