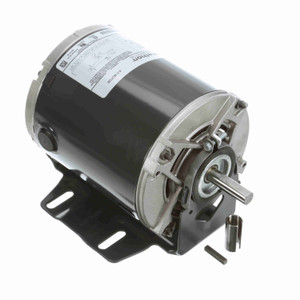

Looking for the Marathon H673 1/3 HP 1425 RPM 220 Volts General Purpose Motor? Order today!
Attributes
| Key ^ | Value |
|---|---|
| Amps | 3.5 |
| Brand | Marathon |
| C-Dimension | 9.19 (in.) |
| Catalog Number | H673 |
| CE | N |
| CSA | Y |
| DE Bearing Type, ODE Bearing Type | Ball |
| DEM Reference | NOHP |
| Duty | Continuous |
| Electrical Type | Split Phase |
| Enclosure Type | Drip Proof |
| Frame Material | Rolled Steel |
| Frame Type | 56Z |
| Frequency | 50 |
| HP | 1/3 |
| Insulation Class | B |
| IP Code, Shaft Type | - |
| KVA Code | S |
| Max Ambient | 40?C |
| Motor Orientation | ANY |
| Mounting Type | Resilient Base |
| Phase, Service Factor, Speeds | 1 |
| Product Category | General Purpose NEMA General Purpose Single Phase Motors > Single Phase ODP Motors |
| Rotation | Counterclockwise/Clockwise |
| RPM (Nameplate) | 1425 |
| RPM (Number of Poles) | 4 (1201 RPM to 1800 RPM) |
| Shaft Diameter | 1/2 (in.) |
| Shaft Extension | 1.5 (in.) |
| Type of Overload Protector | NONE |
| UL | Recognized |
| Volts | 220 |
