mpn:
brand:
manufacturer:
MPN:

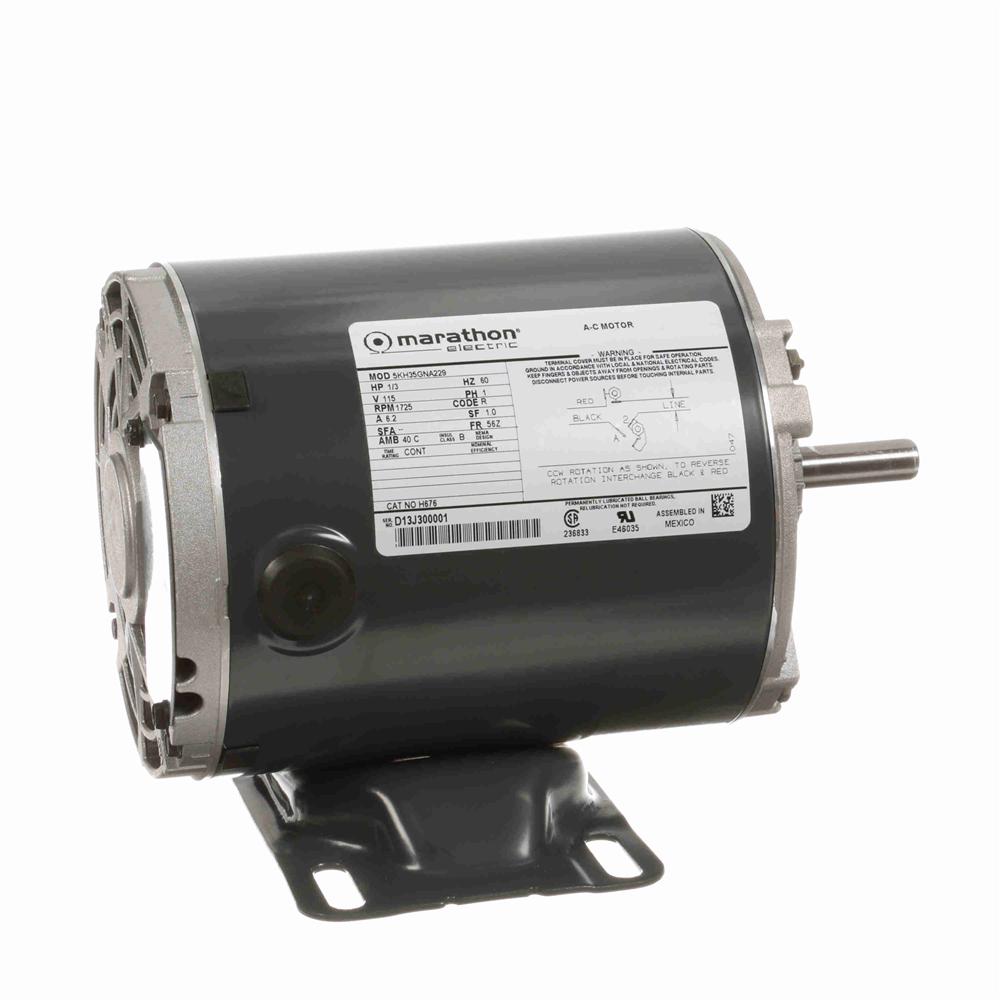

Description:
Amps: 6.2Bearings: BallDuty Cycle: ContinuousEfficiency: 0.64Enclosure Material: SteelEnclosure Type: ODP (Open Dripproof)Frame: 56ZHP: 1/3Hz: 60Insulation Class: BManufacturer Model #: 5KH35GNA229Maximum Ambient Temperature: 40? CMotor Diameter: 6-1/2"Motor Shell Length: 5.79"Mounting Orientation: AnyMounting: BaseNum
Attributes
| Key ^ | Value |
|---|---|
| Amps | 6.2 |
| Bearings | Ball |
| Duty Cycle | Continuous |
| Efficiency | 0.64 |
| Enclosure Material | Steel |
| Enclosure Type | ODP (Open Dripproof) |
| Frame | 56Z |
| HP | 1/3 |
| Hz | 60 |
| Insulation Class | B |
| Manufacturer Model # | 5KH35GNA229 |
| Maximum Ambient Temperature | 40? C |
| Motor Diameter | 6-1/2" |
| Motor Shell Length | 5.79" |
| Mounting | Base |
| Mounting Orientation | Any |
| Number of Speeds, Phase, Service Factor | 1 |
| Overall Length | 9.57" |
| Product Type | Split Phase |
| Rotation | Reversible |
| RPM | 1725 |
| Shaft Diameter | 1/2" |
| Shaft Length | 1.5" |
| Ship Weight | 14 lbs. |
| Volts | 115 |
