Description:

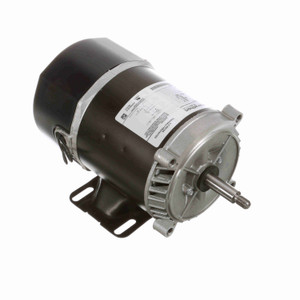

Looking for the Marathon H685 1/3 HP 3450 RPM 115 Volts Two-Compartment Jet Pump Motor? Order today!
Attributes
| Key ^ | Value |
|---|---|
| Amps | 6.2 |
| Brand | Marathon |
| C-Dimension | 11.54 (in.) |
| Catalog Number | H685 |
| CE | N |
| CSA | Y |
| DE Bearing Type | Locked |
| DEM Reference | NOHP |
| Duty | Continuous |
| Electrical Type | Split Phase |
| Enclosure Type | Drip Proof |
| Frame Material | Rolled Steel |
| Frame Type | 56J |
| Frequency | 60 |
| HP | 1/3 |
| Insulation Class | B |
| IP Code, Shaft Type | - |
| KVA Code | S |
| Max Ambient | 50?C |
| Motor Orientation | ANY |
| Mounting Type | Rigid Base |
| ODE Bearing Type | Ball |
| Phase, Speeds | 1 |
| Product Category | Pump Motors > Jet Pump Motors |
| Rotation | Clockwise |
| RPM (Nameplate) | 3450 |
| RPM (Number of Poles) | 2 (1801 RPM to 3600 RPM) |
| Service Factor | 1.75 |
| Shaft Diameter | 5/8 (in.) |
| Shaft Extension | 2.39 (in.) |
| Type of Overload Protector | AUTO |
| UL | Recognized |
| Volts | 115 |
