Marathon Electric R320A

B006KM6RPO

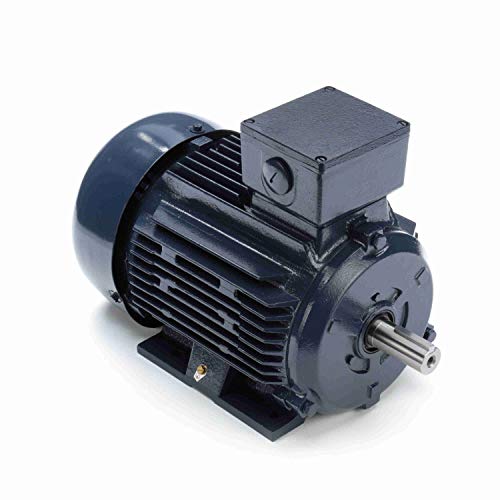

Marathon R320A 100L Frame Totally Enclosed Fan Cooled 100LTFC6576 IEC Motor, 1.5 KW, 1200 RPM, 230/460 VAC, 3 Phase, 2 Speeds, Ball Bearing, Rigid Base

Marathon R320A 100L Frame Totally Enclosed Fan Cooled 100LTFC6576 IEC Motor, 1.5 KW, 1200 RPM, 230/460 VAC, 3 Phase, 2 Speeds, Ball Bearing, Rigid Basezoom

Attributes

Key Value
Amps6/3 A
BearingsBall
Country of Origin (subj.China
Current Rating6.0 ; 3.0 A
Duty CycleContinuous
Efficiency88.5, 88.5%
Enclosure MaterialIron
Enclosure TypeTEFC (Totally Enclosed .
enclosure type:TEFC (Totally Enclosed .
Frame100L
frame material:Cast Iron
frame size:100L
Frequency60 Hz
frequency rating:50/60 Hz
full load efficiency:88.50 %
Gross Weight0 lbs
Horsepower Rating2 HP
HP2
Hz60
Insulation ClassF
Insulation TypeClass F
ip rating:55
kw:1.49 kW
Manufacturer Model #100LTFC6576
Maximum Ambient Tempera.40? C
motor phase:3 ph
motor supply voltage:200/400//230/460 V
Mounting OrientationHorizontal
Mounting TypeRigid Base
mounting type:Rigid Base/B3 Flange
Number of Speeds1
Overall Length16.33"
Phase3, 3 Phase
Product Type3 Phase
RotationReversible
RPM1185 RPM, 1185
Service Factor1.15
service factor:1.15
Shaft Diameter28mm
shaft diameter:24 mm
Shaft Length60mm
Ship Weight90 lbs.
Special FeaturesService Factor - 1.15
standards met:UL, CSA
Supply Voltage230 VAC ; 460 VAC
synchronous rpm:1200 rpm
TypeSquirrel Cage Inverter .
UPC Code722856026347
Volts230/460
weight:99 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comR320A541.01In StockMARATHON541.0 @ 1
us.rs-online.com72233820573.931In StockMarathon Motors573.93 @ 1
thumbzoommotionindustries.com04739260686.751In StockMarathon Electric686.75 @ 1
thumbzoomemotorpro.comR320A736.271In StockMarathon90.0736.27 @ 1
thumbzoomGalcoR320A-MARA855.51In StockMarathon Electric855.5 @ 1
thumbzoomZoroG2623613965.981In StockMarathon965.98 @ 1
thumbzoomcbtcompany.comR320A976.971In StockMarathon Electric Motors976.97 @ 1
