Marathon Electric R322A

B006KM6FFG

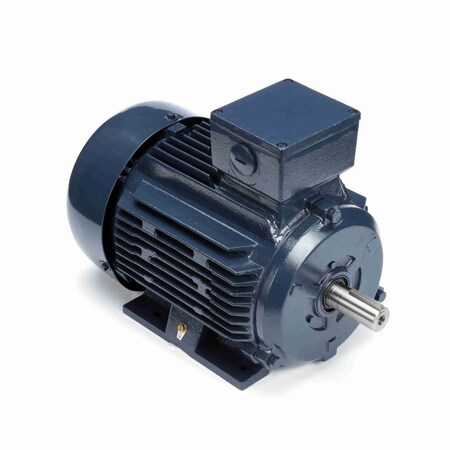

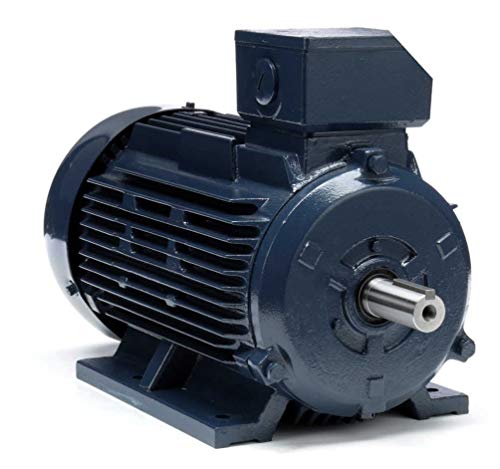

Marathon R322A 100L Frame Totally Enclosed Fan Cooled 100LTFC6526 IEC Motor, 3-2.2 KW, 1800/1500 RPM, 230/460 VAC, 3 Phase, 2 Speeds, Ball Bearing, Rigid Base

Marathon R322A 100L Frame Totally Enclosed Fan Cooled 100LTFC6526 IEC Motor, 3-2.2 KW, 1800/1500 RPM, 230/460 VAC, 3 Phase, 2 Speeds, Ball Bearing, Rigid Basezoom

Attributes

Key Value
Amps8/4 A
ApprovalsCE, CSA
Bearing TypeBall
BearingsBall
CompositionCast Iron
Country of Origin (subj.China
Duty CycleContinuous
Efficiency90.2%
Efficiency %90.2 %
EnclosureTEFC, Totally Enclosed .
Enclosure MaterialIron
Enclosure TypeTEFC (Totally Enclosed .
Family SeriesMarathon Electric Motors
Frame100L
Frequency50 Hz, 60 Hz
Gross Weight0 lbs
Horsepower3 hp
HP3
Hz60
IEC Frame100L
Insulation ClassF
Item NumberR322A
Kilowatts2.2 kW
ManufacturerMarathon Electric
Manufacturer Model #100LTFC6526
Manufacturer Part Number100LTFC6526
Maximum Ambient Tempera.40? C
Mounting OrientationHorizontal
Mounting TypeRigid, Rigid Base
Net Weight107 lbs
Nominal Voltage240 VAC, 480 VAC
Number of Poles4
Number of Speeds1
Overall Length16.33", 16.33 "
Phase3
Product Type3 Phase
RotationReversible
RPM1700 - 1800, 1770, 1,77.
Service Factor1.15
Shaft Diameter28mm, 1.11 "
Shaft Length60mm
Ship Weight84 lbs.
Voltage230/460
Voltage (AC)230 VAC, 460 VAC
Volts230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comR322A529.01In StockMARATHON529.0 @ 1
thumbzoomemotorpro.comR322A655.141In StockMarathon84.0655.14 @ 1
thumbzoomMRO Supply2269030691.431In StockMarathon Electric691.43 @ 1
thumbzoomapexindustrialautomation.comR322A696.961In StockMarathon696.96 @ 1
thumbzoomGalcoR322A-MARA792.01In StockMarathon Electric107.0792.0 @ 1
thumbzoomZoroG2624410838.751In Stock10Marathon838.75 @ 1
thumbzoomcbtcompany.comR322A940.861In StockMarathon Electric Motors940.86 @ 1
