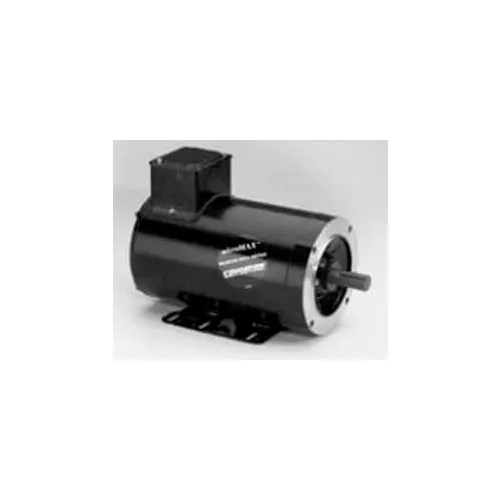

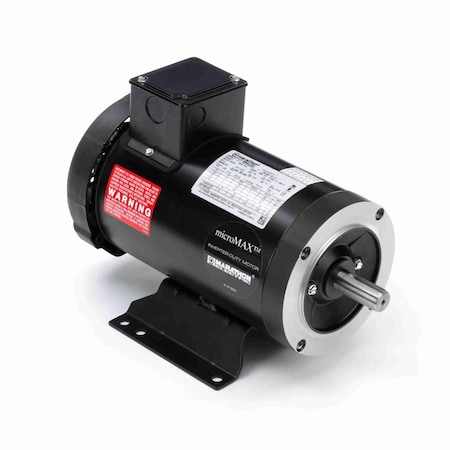

Marathon Electric Y370

mpnY370
brandname: Marathon
manufacturername: Marathon

Y370 182THFR5329 3 Hp 230/460 182/145TC FR. 1800 Rpm

Brand: Marathon Electric
PartNumber: Y370
PackageQuantity: 1
Manufacturer: Marathon Electric
Label: Marathon Electric

Attributes

Key	Value
Alternate Mfr Part Numb.	182THFR5329
Approvals	CE, CSA, UL
Bearing Type	Ball
Composition	Steel
CT Speed Range	2:1
duty / condition type:	Continuous Duty, Invert.
Enclosure	TEFC, Totally Enclosed .
enclosure type:	TEFC (Totally Enclosed .
Encoder Acceptable	No
Family Series	Marathon Electric Motor.
Finish	Black
Frame	182TCZ
frame material:	Rolled Steel
frame size:	182TC
frequency rating:	60 Hz
Full Load Amps	8.4/4.2
full load current:	8.40 / 4.20 A
full load efficiency:	85.50 %
Gross Weight	0 lbs
Horsepower	3 hp
HP	3
Hz	60
Ins. Class	H
insulation class:	H
Inverter Duty	Yes
ip rating:	43
Item	Vector Motor
Item Number	Y370
Manufacturer	Marathon Electric
Manufacturer Part Number	182THFR5329
Manufacturers Warranty .	3 Years
Max. Ambient Temp.	40 Degrees C
Max. Operating Frequency	120 Hz
Max. Speed	4000 rpm
Model Number	182THFR5329
Motor Application	Crane
Motor Bearings	Ball
motor category:	Vector Drive Motor
Motor Design	3-Phase
Motor Efficiency Group	Standard Efficient
Motor Enclosure Design	Totally Enclosed Fan-Co.
Motor Frame Material	Rolled Steel
motor horsepower:	3.00 hp, 3 hp
Motor Mounting Position	All Angle
Motor Mounting Type	Face/Base
motor phase:	3 ph
Motor Service Factor	1.00
Motor Shaft Design	Keyed
Motor Shaft Rotation	CW/CCW
motor supply voltage:	230/460 V
Motor Thermal Protection	None
Mounting Type	C-Face Footed
mounting type:	Rigid Base/C-Face Flange
Nameplate RPM	1,735
NEMA Design	A
Net Weight	52 lbs
Nominal Efficiency	86.5%
Overall Length	14.87 ", 14-7/8"
overall length (c-dimen.	14.87 in
Phase	3
Product Series	HIGH PERFORMANCE INVERT.
RPM	1,800 RPM, 1700 - 1800
service factor:	1.00
Shaft Dia.	7/8"
shaft diameter:	1.13 in
Shaft Length	2-1/8"
Speed Range	20:1 CT
Standards	UL Recognized (E49747),.
standards met:	UL, CSA
synchronous rpm:	1800 rpm
Torque	9.0 lb.-ft.
Voltage	230/460
Voltage (AC)	230 VAC, 460 VAC
weight:	52 lbs

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
electricmotorwholesale.com	Y370	623.0	1	3		MARATHON		623.0 @ 3
AmazonTP	B007ZQN6LW	794.1	1	3	2	Marathon Electric		794.1 @ 3
AmazonUNK	B007ZQN6LW	794.1	1	3		Marathon Electric		794.1 @ 3
motionindustries.com	03900231	925.22	1	3		Marathon Electric		925.22 @ 3
MRO Supply	2270367	932.43	1	3		Marathon Electric		932.43 @ 3
Global Industrial	WBB869713	975.0	1	3		Marathon Motors		975.0 @ 3
Galco	Y370-MARA	1007.03	1	3		Marathon Electric	52.0	1007.03 @ 3
National Supply Network	B869713	1027.08	1	3		MARATHON MOTORS		1027.08 @ 3
us.rs-online.com	73431476	1044.78	1	3		Marathon Motors		1044.78 @ 3
Zoro	G2533523	1157.75	1	3	10	Marathon		1157.75 @ 3
grainger.ca	AOSY370	1312.0395062	1	3		MARATHON	51.0	1312.0395062 @ 3
industrialmotors.com	Y370	1343.4	1	128		MARATHON ELECTRIC		1343.4 @ 3
