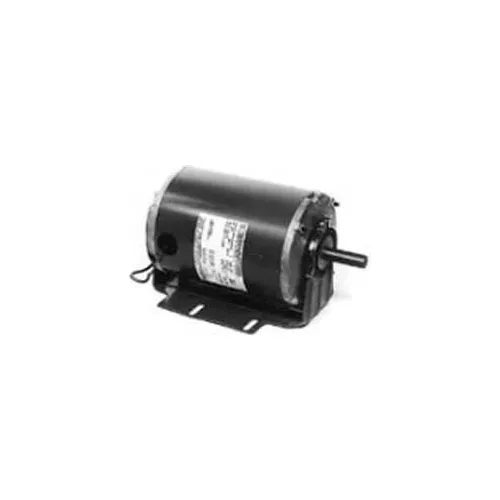

Marathon Industries H649
Marathon Industrieszoom

Marathon Industries H649

mpn:
H649
brand:
Marathon Electric
manufacturer:
Marathon Electric
MPN:
H649
Description:
Shop Marathon Electric H649 / 722856028280 and trust MRO to be your reliable Marathon Electric supplier to experience the difference that quality and expertise can make. Trusted since 1898. Fast, Free Shipping.
Weight:
1.14375
Weight:
1.14375 LB
Preferred Price:
162.69
Price:
162.69
Min Simple Price:
88.96
Absolute Min Price:
126.32
Min Price:
126.32
Dimensions:
[11.0, 6.0, 6.0]
qty:
21
simpleSku:
NDY2MA:::H649
sku:
NDY2MA::Z5:H649@y0
condition:
11
seller:
Galco
amzMan:
marathon motors
HazMat:
False
DropShip:
True

Attributes

Key ^Value
Alternate Mfr Part Number, Manufacturer Model #, Manufacturer Part Number5KHC39QN9575T
Amps3.0/1.6-1.5
applications:Agricultural
ApprovalsCSA, UR
Bearing Type, Bearings, Motor BearingsBall
Capacitor Required, Usable @ 208VYes
Composition, frame material:Rolled Steel
Current Rating3 A
duty / condition type:Continuous Duty, Farm Duty
Duty CycleContinuous
Efficiency68, 0.68
Efficiency %, Nominal Efficiency68 %
EnclosureTotally Enclosed Non-Ventilated, TENV
Enclosure Material, Motor Frame MaterialSteel
Enclosure TypeTENV (Totally Enclosed Non Ventilated), Totally Enclosed Non Ventilated
enclosure type:TEAO (Totally Enclosed Air Over)
Family SeriesMarathon Electric Motors
FinishBlack Enamel
Frame, frame size:, NEMA Frame48
Frequency, frequency rating:60 Hz
Full Load Amps3.0/1.60-1.50
full load current:3.00 / 1.60
full load efficiency:68.00 %
Gross Weight0 lbs
Horsepower1/4 hp
Horsepower Rating0.25 HP
HP1/4
Hz60
IncludesGasketed Wiring Compartment Cover
Ins. Class, Insulation Class, insulation class:B
Insulation TypeClass B
ip rating:43
Item NumberH649
Item, Item - Farm Duty MotorsGeneral Purpose Farm Duty Motor
Kilowatts0.19 kW
Length Less Shaft8 7/8 in
ManufacturerMarathon Electric
Max. Ambient Temp.40 Degrees C
Maximum Ambient Temperature40? C
Motor ApplicationFarm Duty
motor category:General Purpose Motor
Motor DesignSplit-Phase Start/Capacitor-Run
Motor Diameter5-5/8"
Motor Enclosure DesignTotally Enclosed Nonventilated
motor horsepower:1/4 hp, 0.25 hp
Motor Mounting PositionAll Angle
Motor Mounting TypeCradle Base
motor phase:1 ph
Motor Service Factor, No. of Speeds, Number of Speeds, Phase, Service Factor1
Motor Shaft DesignFlat
Motor Shaft RotationCW/CCW
Motor Shell Length6.62"
Motor Sub ApplicationBelt Drive Fan/Blower
motor supply voltage:115/208-230 V
Motor Thermal ProtectionAuto
MountingBase
Mounting OrientationAny
Mounting Stud Pattern3 5/8 in x 3 5/8 in
Mounting Type, mounting type:Resilient Base
Nameplate RPM1,725
Net Weight16 lbs
Number of Poles4
Overall Length10 3/8 in, 10.4", 10.4 "
overall length (c-dimension):10.40 in
PhaseSingle, 1 Phase
Product TypeSplit Phase Start/Capacitor Run
RotationReversible
RPM1725 RPM, 1700 - 1800, 1,725 RPM, 1725
service factor:1.00
Shaft Dia.1/2 in
Shaft Diameter0.5 ", 1/2"
shaft diameter:0.50 in
Shaft Length1.5", 1 1/2 in
Ship Weight16 lbs.
Special FeaturesService Factor - 1
StandardsCSA, UL Recognized
standards met:UL, CSA
Stud Size#8-32
Supply Voltage115/208-230 VAC
synchronous rpm:1800 rpm
Thermal Protection, thermal protection:Automatic
TypeSplit Start Capacitor Run
UPC Code722856028280
Usable @ 200VNo
Voltage115/208-230V AC, 115/208-230
Voltage (AC)115 VAC, 208-230 VAC
Volts115, 208, 230
Weight16 lb
weight:15.5 lbs

All Prices

ImgSellerSupplier SKURequested Price ^Calc MOQ PriceMOQIn StockLead TimeBrandWeightPreferred Tier
thumbzoomGalcoH649-MARA88.962188.41660In StockMarathon Electric16.088.96 @ Qty: 60+
thumbzoomMRO Supply227018289.4389.431In StockMarathon Electric89.43 @ Qty: 1+
us.rs-online.com72238342109.46109.461In StockMarathon Motors109.46 @ Qty: 1+
thumbzoomcbtcompany.comH649118.85118.851In StockMarathon Electric Motors118.85 @ Qty: 1+
thumbzoomemotorpro.comH649206.31206.311In StockMarathon16.0206.31 @ Qty: 1+
thumbzoomGlobal IndustrialWBB868968209.95629.856In StockMarathon Motors209.95 @ Qty: 6+
thumbzoomelectricmotorwholesale.comH649217.0217.01In StockMARATHON217.0 @ Qty: 1+
grainger.caAOSH649217.75631612217.756316121In StockMARATHON18.3217.75631612 @ Qty: 1+
thumbzoomNational Supply NetworkB868968219.33657.996In StockMARATHON MOTORS219.33 @ Qty: 6+
thumbzoommotionindustries.com00551219293.73293.731In StockMarathon Electric293.73 @ Qty: 1+
B07GJV5GZ5
Marathon Industries H649

Farm Duty Mtr, Splt Ph, TENV, 1/4hp, 1725rpm
