mpn:
brand:
manufacturer:
MPN:
Description:

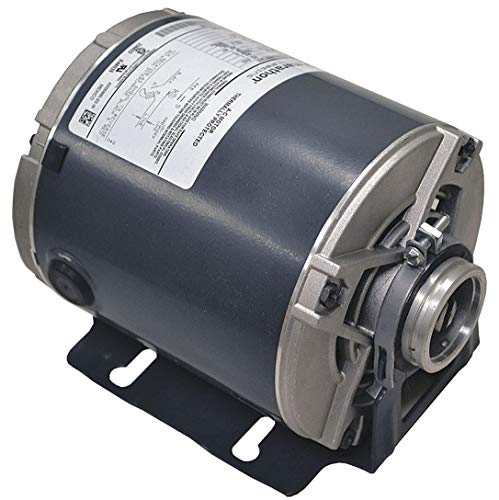

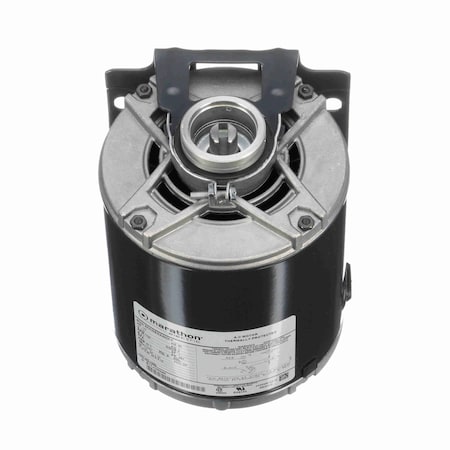

H682 Model#: 5KH32ENA443X HP: 1/3 RPM: 1725 Frame: 48Y Enclosure: ODP Phase: 1 Voltage: 115 HZ: 60
Weight:
12.22
Weight:
12.22 LB
Preferred Price:
267.27
Price:
267.27
Min Simple Price:
151.0
Absolute Min Price:
214.42
Min Price:
214.42
Dimensions:
[13.0, 9.0, 8.0]
qty:
21
simpleSku:
jEzMjc:::H682
sku:
jEzMjc::FC:H682@y0
condition:
11
seller:
electricmotorwholesale.com
amzMan:
marathon electric
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Alternate Mfr Part Number, Manufacturer Model #, Manufacturer Part Number | 5KH32ENA443X |
| Amps, Full Load Amps | 6.1 |
| Approvals | CSA, UR |
| Bearing Type, Bearings, Motor Bearings | Ball |
| Body Dia. | 5.6" |
| Composition | Rolled Steel |
| Current Rating | 6.1 A |
| Duty Cycle | Continuous |
| Efficiency | 51.8, 0.518 |
| Efficiency %, Nominal Efficiency | 51.8 % |
| Enclosure | ODP |
| Enclosure Material, Motor Frame Material | Steel |
| Enclosure Type | ODP (Open Dripproof) |
| Enclosure, Enclosure Type | Drip Proof |
| Family Series | Marathon Electric Motors |
| Frame | 48YZ |
| Frame, NEMA Frame | 48Y |
| Frequency | 60 Hz |
| Gross Weight | 0 lbs |
| Height | 5 13/16 in |
| Horsepower | 1/3 hp |
| Horsepower Rating | 0.33 HP |
| HP | 1/3 |
| Hz | 60 |
| Ins. Class, Insulation Class | B |
| Insulation Type | Class B |
| Item | Carbonator Pump Motor |
| Item Number | H682 |
| Kilowatts | 0.25 kW |
| Length Less Shaft | 7 1/2" |
| Manufacturer | Marathon Electric |
| Max. Ambient Temp. | 40 Degrees C |
| Maximum Ambient Temperature | 40? C |
| Motor Application | Pump |
| Motor Design, Stator Type | Split-Phase |
| Motor Diameter | 5-5/8" |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Cradle Base |
| Motor Service Factor | 1.00 |
| Motor Shaft Rotation | CW/CCW |
| Motor Shell Length | 5.16" |
| Motor Sub Application | Carbonator Pump |
| Motor Thermal Protection | Auto |
| Mounting | Base |
| Mounting Orientation | Any |
| Mounting Type | Resilient Base |
| Nameplate RPM | 1,725 |
| Net Weight | 13 lbs |
| No. of Speeds, Number of Speeds, Phase, Service Factor | 1 |
| Number of Poles | 4 |
| Overall Length | 7.69 ", 7-11/16", 7.69" |
| Phase | 1 Phase |
| Product Type, Type | Split Phase |
| Rotation | Reversible |
| RPM | 1725 RPM, 1725, 1700 - 1800, 1,725 RPM |
| RPM Range | 1,400 - 1,800 |
| Shaft Dia. | 5/8 in |
| Shaft Diameter | 0.63 ", 5/8" |
| Shaft Length | 1-1/2", 0.17" |
| Ship Weight | 13 lbs. |
| Special Features | Service Factor - 1 |
| Standards | UL Recognized (E14133), CSA Certified (MC161850), UL Recognized |
| Supply Voltage, Voltage (AC) | 115 VAC |
| Thermal Protection | Automatic |
| UPC Code | 722856031693 |
| Usable @ 200V, Usable @ 208V | No |
| Voltage Compatibility | 115, 120, 115/208-230, 115/230, 120/240 |
| Voltage, Volts | 115 |
| Weight | 13 lb |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | electricmotorwholesale.com | H682 | 151.0 | 151.0 | 1 | In Stock | MARATHON | 151.0 @ Qty: 1+ | ||
| AmazonTP | B007ZQN7FC | 168.65 | 168.65 | 1 | In Stock | 3 | Marathon Electric | 168.65 @ Qty: 1+ | ||
 | apexindustrialautomation.com | H682 | 198.69 | 198.69 | 1 | 352 | Marathon | 198.69 @ Qty: 1+ | ||
 | MRO Supply | 2269103 | 206.47 | 206.47 | 1 | In Stock | Marathon Electric | 206.47 @ Qty: 1+ | ||
 | Galco | H682-MARA | 221.4 | 221.4 | 1 | In Stock | Marathon Electric | 13.0 | 221.4 @ Qty: 1+ | |
| us.rs-online.com | 72241254 | 241.72 | 241.72 | 1 | 1 | Marathon Motors | 241.72 @ Qty: 1+ | |||
 | emotorpro.com | H682 | 251.47 | 251.47 | 1 | In Stock | Marathon | 13.0 | 251.47 @ Qty: 1+ | |
 | midwestapplianceparts.com | H682-MT-P | 260.8 | 260.8 | 1 | 3 | Marathon | 260.8 @ Qty: 1+ | ||
 | Zoro | G706629533 | 265.27 | 265.27 | 1 | In Stock | Marathon | 265.27 @ Qty: 1+ | ||
 | National Supply Network | B869090 | 268.98 | 268.98 | 1 | In Stock | MARATHON MOTORS | 268.98 @ Qty: 1+ | ||
 | Global Industrial | WBB869090 | 275.95 | 275.95 | 1 | In Stock | Marathon Motors | 275.95 @ Qty: 1+ | ||
 | industrialstores.com | H682 | 279.31 | 279.31 | 1 | 1 | Marathon Motors | 279.31 @ Qty: 1+ | ||
| grainger.ca | AOSH682 | 319.2094788 | 319.2094788 | 1 | In Stock | MARATHON | 12.15 | 319.2094788 @ Qty: 1+ | ||
 | ptacsolutions.com | H682 | 321.51 | 321.51 | 1 | In Stock | Marathon Motors | 321.51 @ Qty: 1+ | ||
 | Square One | H682 | 325.68 | 325.68 | 1 | In Stock | MARATHON MOTOR | 325.68 @ Qty: 1+ |
