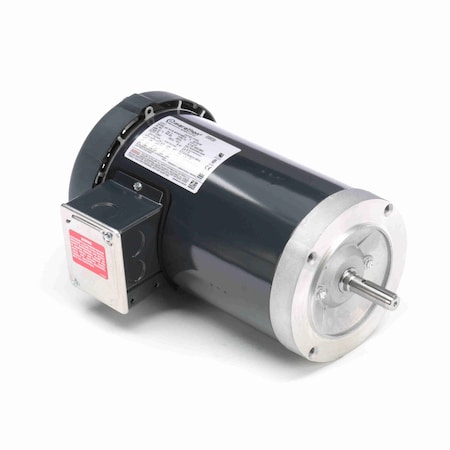

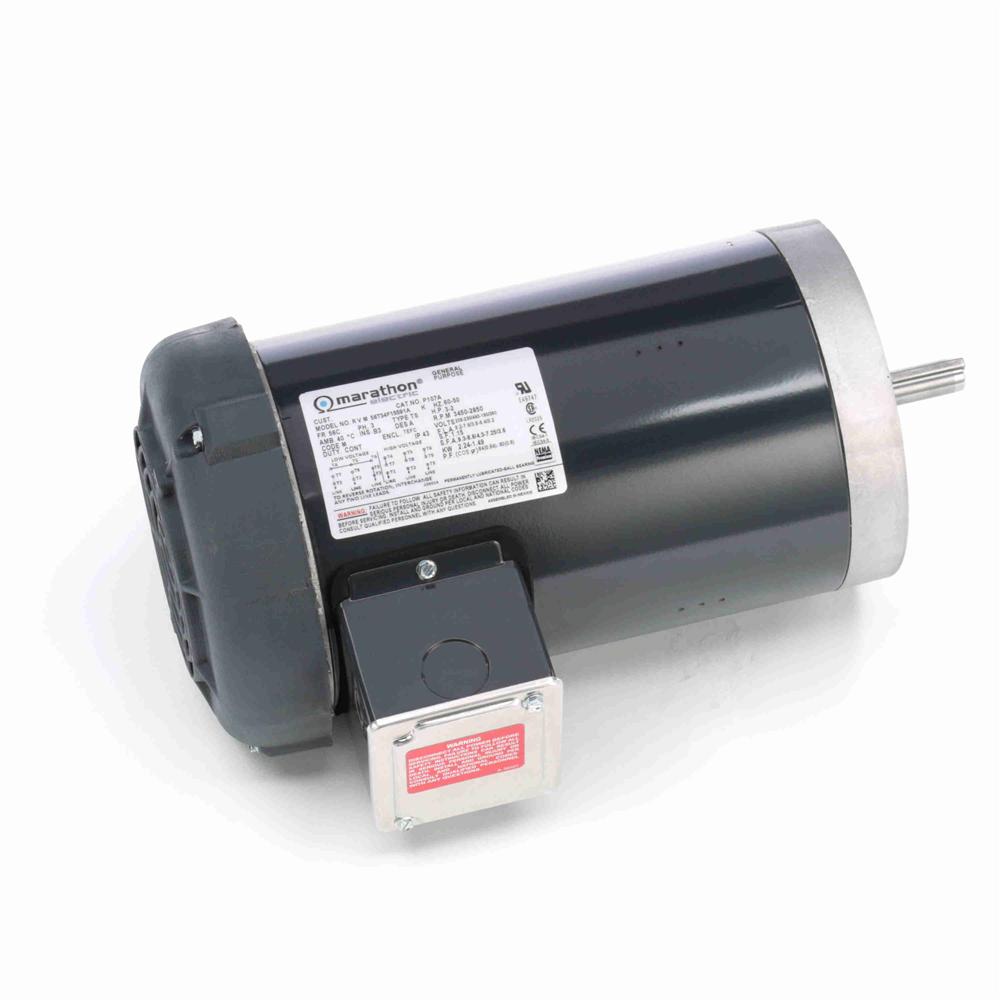

Marathon P107A 056T34F15591 3HP 3600RPM 56C frame totally enclosed fan cooled 3 phase 230/460 volt 60 hertz electric motor - MROSupply.com
Weight:
2.8125
Weight:
2.8125 LB
Preferred Price:
754.02
Price:
754.02
Min Simple Price:
426.0
Absolute Min Price:
604.91
Min Price:
604.91
Dimensions:
[15.0, 2.0, 2.0]
qty:
198
simpleSku:
NDY2MA:::P107A
sku:
NDY2MA::ZG:P107A@y0
condition:
11
seller:
electricmotorwholesale.com
amzMan:
cai - marathon motors
HazMat:
False
DropShip:
True
Attributes
| Key | Value |
|---|---|
| Alternate Mfr Part Number | 056T34F15591 |
| Amps | 7.6/3.8 |
| Approvals | CE, CSA, UR |
| Bearing Type | Ball |
| Bearings | Ball |
| Composition | Rolled Steel |
| Duty Cycle | Continuous |
| Efficiency | 0.875 |
| Efficiency % | 87.5 % |
| Enclosure | Totally Enclosed Fan Cooled |
| Enclosure Material | Steel |
| Enclosure Type | TEFC (Totally Enclosed Fan Cooled) |
| Family Series | Marathon Electric Motors |
| Frame | 56C |
| Frequency | 50 Hz, 60 Hz |
| Gross Weight | 0 lbs |
| Horsepower | 3 hp |
| HP | 3 |
| Hz | 60 |
| Insulation Class | B |
| Item Number | P107A |
| Kilowatts | 2.2 kW |
| Manufacturer | Marathon Electric |
| Manufacturer Model # | 056T34F15591 |
| Manufacturer Part Number | 056T34F15591 |
| Maximum Ambient Temperature | 40? C |
| Motor Shell Length | 9.06" |
| Mounting | Face |
| Mounting Orientation | Horizontal |
| Mounting Type | Round |
| NEMA Frame | 56C |
| Net Weight | 0 lbs |
| Number of Poles | 2 |
| Number of Speeds | 1 |
| Overall Length | 14.32", 14.32 " |
| Phase | 3 |
| Product Type | Three Phase |
| Rotation | Reversible |
| RPM | 3,450 RPM, 3450 |
| Service Factor | 1.15 |
| Shaft Diameter | 0.63 ", 5/8" |
| Shaft Length | 2.06" |
| Ship Weight | 45 lbs. |
| Voltage (AC) | 230 VAC, 460 VAC |
| Volts | 230, 460 |
All Prices
| Img | Seller | Supplier SKU | Requested Price | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | electricmotorwholesale.com | P107A | 426.0 | 426.0 | 1 | In Stock | MARATHON | 426.0 @ Qty: 1+ | ||
 | apexindustrialautomation.com | P107A | 560.87 | 560.87 | 1 | In Stock | Marathon | 560.87 @ Qty: 1+ | ||
 | Galco | P107A-MARA | 575.63 | 575.63 | 1 | In Stock | Marathon Electric | 575.63 @ Qty: 1+ | ||
 | MRO Supply | 5812676 | 580.99 | 580.99 | 1 | In Stock | Marathon Electric | 580.99 @ Qty: 1+ | ||
| us.rs-online.com | 73431498 | 648.4 | 648.4 | 1 | In Stock | Marathon Motors | 648.4 @ Qty: 1+ | |||
 | emotorpro.com | P107A | 667.65 | 667.65 | 1 | In Stock | Marathon | 45.0 | 667.65 @ Qty: 1+ | |
 | midwestapplianceparts.com | P107A-MT-P | 680.33 | 680.33 | 1 | 1 | Marathon | 680.33 @ Qty: 1+ | ||
 | Zoro | G7033377 | 725.29 | 725.29 | 1 | In Stock | Marathon | 725.29 @ Qty: 1+ | ||
| industrialmotors.com | P107A | 769.2 | 769.2 | 1 | 198 | MARATHON ELECTRIC | 769.2 @ Qty: 1+ |
