mpn:
brand:
manufacturer:
MPN:
Weight:
2.5625
Weight:
2.5625 LB
Preferred Price:
1103.38
Price:
1103.38
Min Simple Price:
623.38
Absolute Min Price:
885.19
Min Price:
885.19
Dimensions:
[14.0, 6.0, 6.0]
qty:
21
simpleSku:
NDY2MA:::056E17V2004
sku:
NDY2MA::F7:056E17V2004@y0
condition:
11
seller:
Zoro
amzMan:
cai - marathon motors
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Base Mounting O.C. | 3" x 4-22/25" |
| Bearings | Ball |
| Body Dia. | 5-31/50" |
| Brush Type | Carbon |
| Category | Electric Motor |
| Country of Origin (subject to change) | United States |
| Efficiency % | 81.7 % |
| Enclosure | Totally Enclosed Non-Ventilated, TENV |
| Face Mounting O.C. | 5-7/8" |
| Family Series | Marathon Electric Motors |
| Features, Frame Remarks | Washdown |
| Frame | 56c |
| Frame Remarks, Mounting Type | FOOTED |
| Full Load Amps | 2.4 |
| Full Load Torque | 18.0 lb.-in. |
| Gross Weight | 0 lbs |
| Horsepower | 1/2 hp |
| HP | 0.50, 1/2 |
| Ins. Class | F |

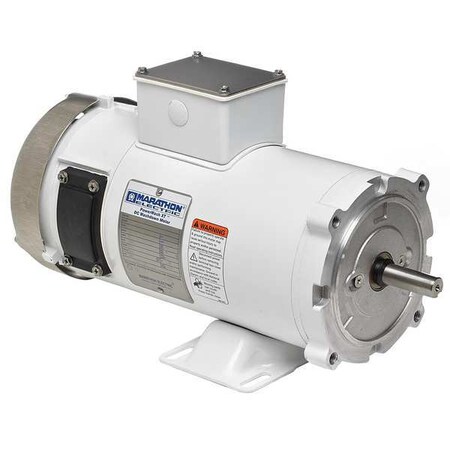

| Item | DC Washdown Motor |
| Item Condition | FACTORY NEW |
| Item Number | 056E17V2004 |
| Kilowatts | 0.37 kW |
| Length Less Shaft | 11-5/8" |
| Manufacturer | Marathon Electric |
| Manufacturer Part Number | Z635 |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | Variable Speed |
| Motor Design | DC Permanent Magnet |
| Motor Enclosure Design | Totally Enclosed Nonventilated |
| Motor Mounting Type | Face/Base |
| Motor Thermal Protection | None |
| mounting | C-face w/ rigid base |
| Nameplate RPM, RPM | 1750 |
| NEMA Frame | S56C |
| Net Weight | 41 lbs |
| Overall Length | 13-3/4" |
| Phase | C |
| Rotation | CW/CCW |
| RPM | 1,750 RPM |
| RPM Range | 1701-1800 |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1-7/8" |
| Standards | UL(E49747) CSA(E49747) |
| Voltage, Voltage Compatibility | 180VDC |
| Volts | 180 |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | Zoro | G6524874 | 623.38 | 623.38 | 1 | In Stock | 26 | Marathon Motors | 623.38 @ Qty: 1+ | |
| Grainger | 26VU28 | 689.0 | 689.0 | 1 | In Stock | 10 | MARATHON MOTORS | 689.0 @ Qty: 1+ | ||
 | Dealers Electric | 056E17V2004 | 702.02 | 702.02 | 1 | In Stock | Marathon Electric | 41.0 | 702.02 @ Qty: 1+ | |
 | Galco | 056E17V2004-MARA | 972.5 | 972.5 | 1 | In Stock | Marathon Electric | 41.0 | 972.5 @ Qty: 1+ |
