- mpn056T11V5377
- brandname: MARATHON MOTORS
- manufacturername: MARATHON MOTORS

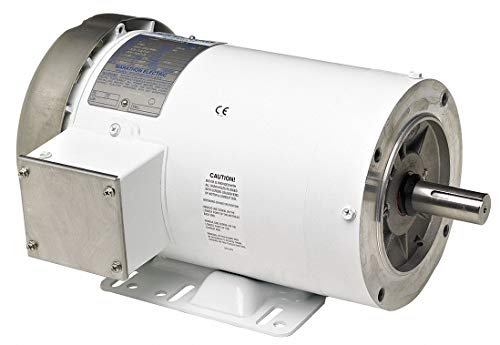

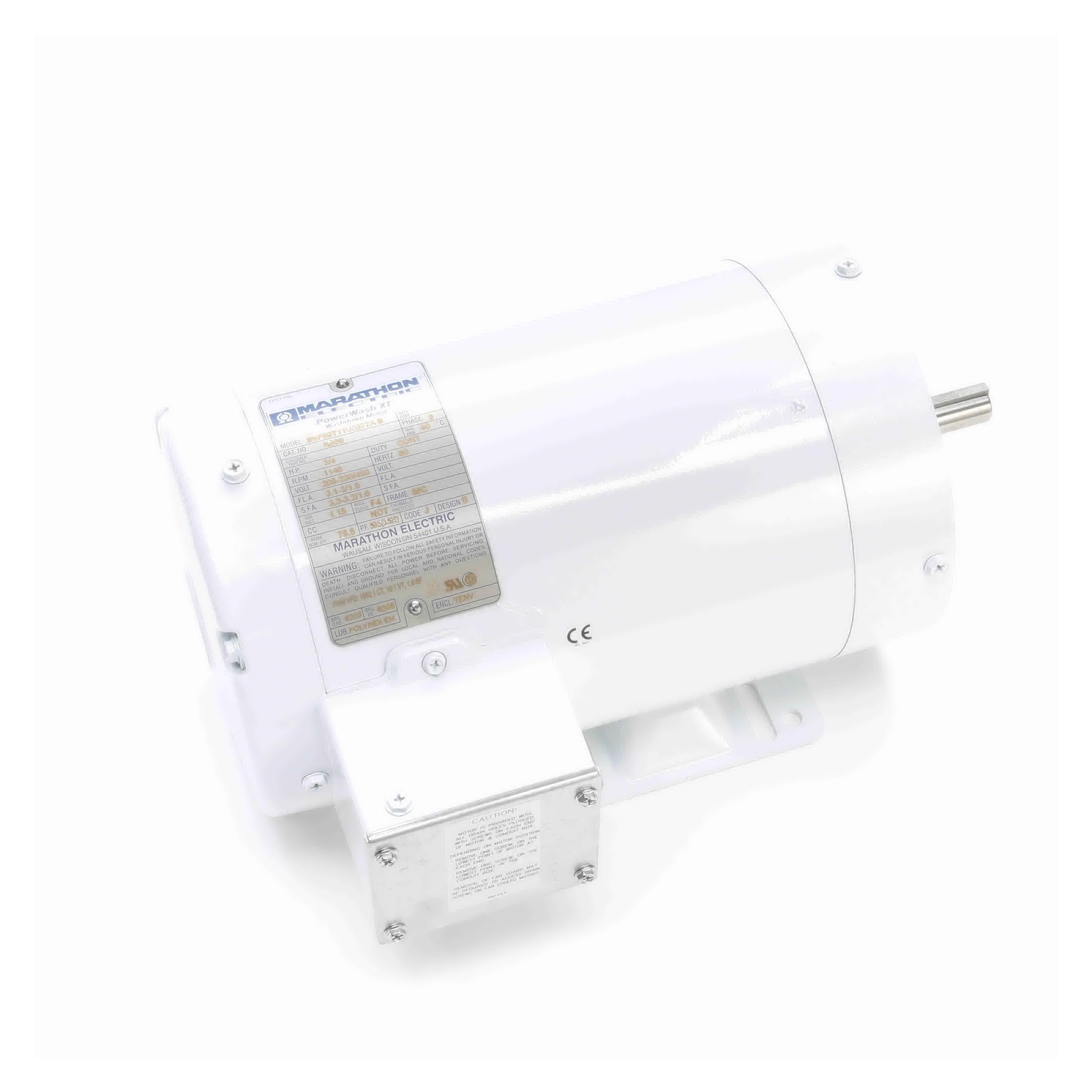

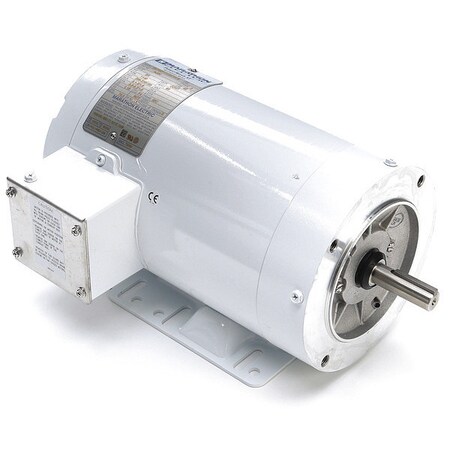

Marathon Motors 3/4 HP Washdown Motor,3-Phase,1140 Nameplate RPM,208-230/460 Voltage,Frame 56C
- Brand: CAI - MARATHON MOTORS
- PartNumber: 056T11V5377
- PackageQuantity: 1
- Manufacturer: CAI - MARATHON MOTORS
- Label: CAI - MARATHON MOTORS
Attributes
| Key | Value |
|---|
| Application | Application, Washguard |
| Approval | Approval |
| Body Dia. | 6-1/2" |
| Classification | PowerWash XT Washdown D. |
| Composition | Rolled Steel |
| Constant Torque Speed R. | Constant Torque Speed R. |
| Country of Origin (subj. | Multiple |
| Drain Plugs | (4) Each End and (2) In. |
| Duty | Continuous |
| Efficiency | Efficiency |
| Efficiency % | 78.5 % |
| Enclosure | Totally Enclosed Non-Ve. |
| Endshields | Aluminum |
| Family Series | Marathon Electric Motors |
| Frame | 56c |
| Frame Material | Frame Material, Epoxy C. |
| Frame Remarks | C-Face Rigid |
| Frequency Rating | Frequency Rating |
| Full Load Amps | 3/1.5 |
| Gross Weight | 0 lbs |
| Horsepower | 3/4 hp |
| HP | .75, 3/4 |
| Hz | 60 |
| Includes | Shaft Seals, V-Rings, G. |
| Ins. Class | F |
| Insulation Class | Insulation Class |
| Inverter Rated | Yes |
| Item | Washdown Motor |
| Item Condition | Factory New |
| Item Number | 056T11V5377 |
| Kilowatts | 0.56 kW |
| Length Less Shaft | 11" |
| Manufacturer | Marathon Electric |
| Manufacturer Part Number | N600 |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | Washdown |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Nonven. |
| Motor FLA | Motor FLA |
| Motor Frame Material | Epoxy Coated Rolled Ste. |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Face/Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Mounting Type | Footed |
| Nameplate RPM | 1140 |
| NEMA Design | B |
| NEMA Frame | 56c |
| Net Weight | 46 lbs |
| Nominal Efficiency | 85.5% |
| Nominal Voltage | 208 VAC, 240 VAC, 277 V. |
| Number of Speeds | Number of Speeds |
| Overall Length | 13-1/16" |
| Phase | 3 |
| RPM | 1200, 1,140 RPM |
| RPM Range | 1101-1200 |
| Service Factor | Service Factor, 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2-1/16" |
| Shaft Material | 303 Stainless Steel |
| Speeds | Speeds |
| Standards | UL Recognized (E49747),. |
| Unspsc | Unspsc |
| Variable Torque Speed R. | Variable Torque Speed R. |
| Voltage | 208-230/460 |
| Voltage (AC) | 208 VAC, 230 VAC, 460 V. |
| Voltage Compatibility | 208, 230, 240, 460, 208. |
| Volts | 208-230/460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G1992711 | 658.89 | 1 | In Stock | 25 | Marathon Motors | | 658.89 @ 1 |
 | Purvis | N600 | 792.84 | 1 | In Stock | | Marathon | | 792.84 @ 1 |
 | Galco | 056T11V5377-MARA | 816.0 | 1 | In Stock | | Marathon Electric | 46.0 | 816.0 @ 1 |
 | mecampbell.com | 056T11V5377 | 841.5 | 1 | In Stock | 33 | Marathon Motors | | 841.5 @ 1 |
 | Dealers Electric | 056T11V5377 | 871.79 | 1 | In Stock | | Marathon Electric | 25.0 | 871.79 @ 1 |
 | Raptor Supplies | AF8BBN | 1187.0167725 | 1 | In Stock | | MARATHON MOTORS | | 1187.0167725 @ 1 |
