| Application | Washguard |
| Body Dia. | 6-9/16" |
| CC Number | CC003A |
| Conduit Box | Cast Aluminum with Buna-N Gasketed Cover |
| Country of Origin (subject to change) | United States |
| Drain Plugs | (4) Shaft End, (4) Lead End, (2) In Conduit Box |
| Duty | Continuous |
| Endshields | 380 Aluminum Alloy |
| Frame | 56 |
| Full Load Amps | 3.2/1.6 |
| HP | 1 |
| Hz | 60 |
| Ins. Class | F |
| Inverter Rated | Yes |

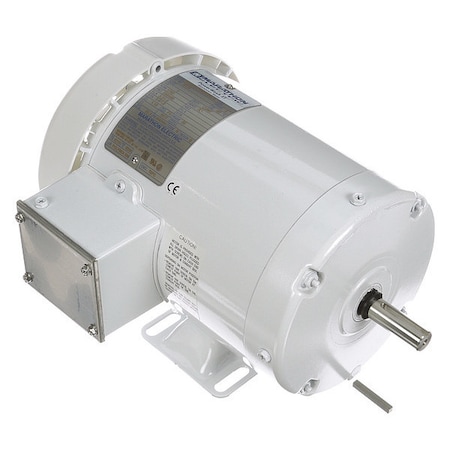

| Item | Washdown Motor |
| Length Less Shaft | 10-5/16" |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | Washdown |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Nameplate RPM | 1760 |
| NEMA Design | B |
| Nominal Efficiency | 93.6% |
| Overall Length | 12-1/4" |
| Phase | 3 |
| RPM Range | 1701-1800 |
| Shaft Dia. | 5/8" |
| Shaft Length | 4-1/4" |
| Shaft Material | 303 Stainless Steel |
| Standards | UL (E49747), CSA (LR2025), CE Approved |
| Voltage | 230/460 |
| Voltage Compatibility | 208-230/460 |
