- mpn056T34D5365
- brandname: MARATHON MOTORS
- manufacturername: MARATHON MOTORS

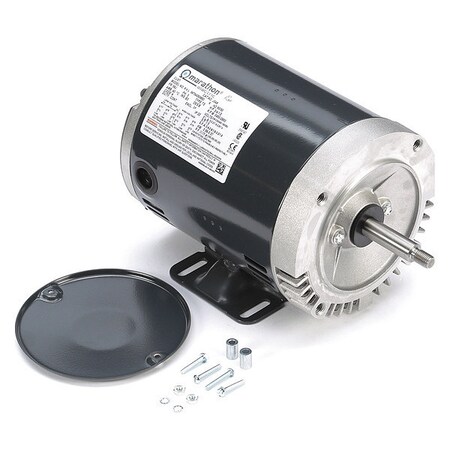

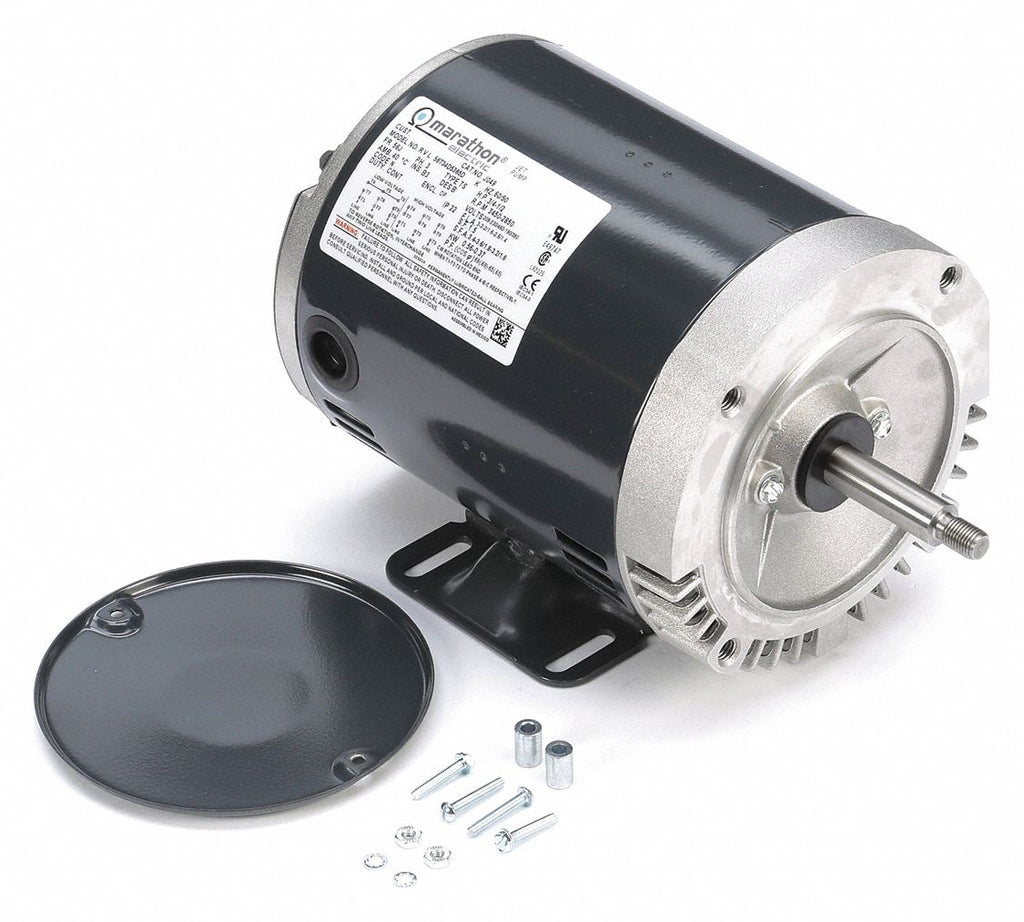

Motor, 3-Ph, 3/4 HP, 208-230/460V, 56J
- Brand: Marathon Industries
- PartNumber: 056T34D5365
- PackageQuantity: 1
- Manufacturer: MARATHON MOTORS
- Label: MARATHON MOTORS
Attributes
| Key | Value |
|---|
| Body Dia. | 6.4 in |
| Bolt Circle Dia. | 5 7/8 in |
| Classification | Centrifugal Pump Jet Pu. |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Country of Origin (subj. | Mexico |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Enclosure | ODP |
| Frame | 56J |
| Frame Remarks | C-Face Rigid |
| Full Load Amps | 3.2-3.0/1.60 |
| Full Load Amps @ 50Hz | 3.2-3.0/1.60 |
| Height | 6 11/16 in |
| HP | .75, 3/4 |
| HP @ 50Hz | 3/4 |
| Hz | 60/50 |
| Includes | Drip Cover |
| Ins. Class | B |
| Item | Jet Pump Motor |
| Item Condition | Factory New |
| Length Less Shaft | 8 3/8 in |
| Manufacturer | Marathon Electric |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal, Vertical Sh. |
| Motor Mounting Type | Face/Base |
| Motor Service Factor | 1.5 |
| Motor Shaft Design | Threaded |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Jet Pump |
| Motor Thermal Protection | None |
| Nameplate RPM | 3,450 |
| NEMA Design | B |
| No. of Speeds | 1 |
| Nominal Efficiency | 74 % |
| Overall Length | 10 15/16 in |
| Phase | 3, Three |
| RPM | 3600 |
| RPM @ 50Hz | 3,450 |
| RPM Range | 3,001-3,600 |
| Service Factor @ 50Hz | 1.5 |
| Shaft Dia. | 5/8 in |
| Shaft Length | 2 9/16 in |
| Shaft Material | Stainless Steel |
| Standards | CE Mark, CSA Certified,. |
| Usable @ 200V | No |
| Usable @ 208V | Yes |
| Voltage | 208-230/460V AC |
| Voltage @ 50Hz | 460 |
| Voltage Compatibility | 200-230/440V AC, 200-23. |
| Volts | 208-230/460 |
| Weight | 22 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G5570101 | 244.78 | 1 | In Stock | 26 | Marathon Motors | 22.0 | 244.78 @ 1 |
 | Dealers Electric | 056T34D5365 | 256.91 | 1 | In Stock | | Marathon Electric | 25.0 | 256.91 @ 1 |
 | sustainablesupply.com | C1548842 | 289.06 | 1 | In Stock | | Marathon | 21.55 | 289.06 @ 1 |
 | Raptor Supplies | AJ2LHX | 571.7368215 | 1 | In Stock | | MARATHON MOTORS | | 571.7368215 @ 1 |
