- mpn056T34F5322
- brandname: Marathon Motors
- manufacturername: Marathon Motors

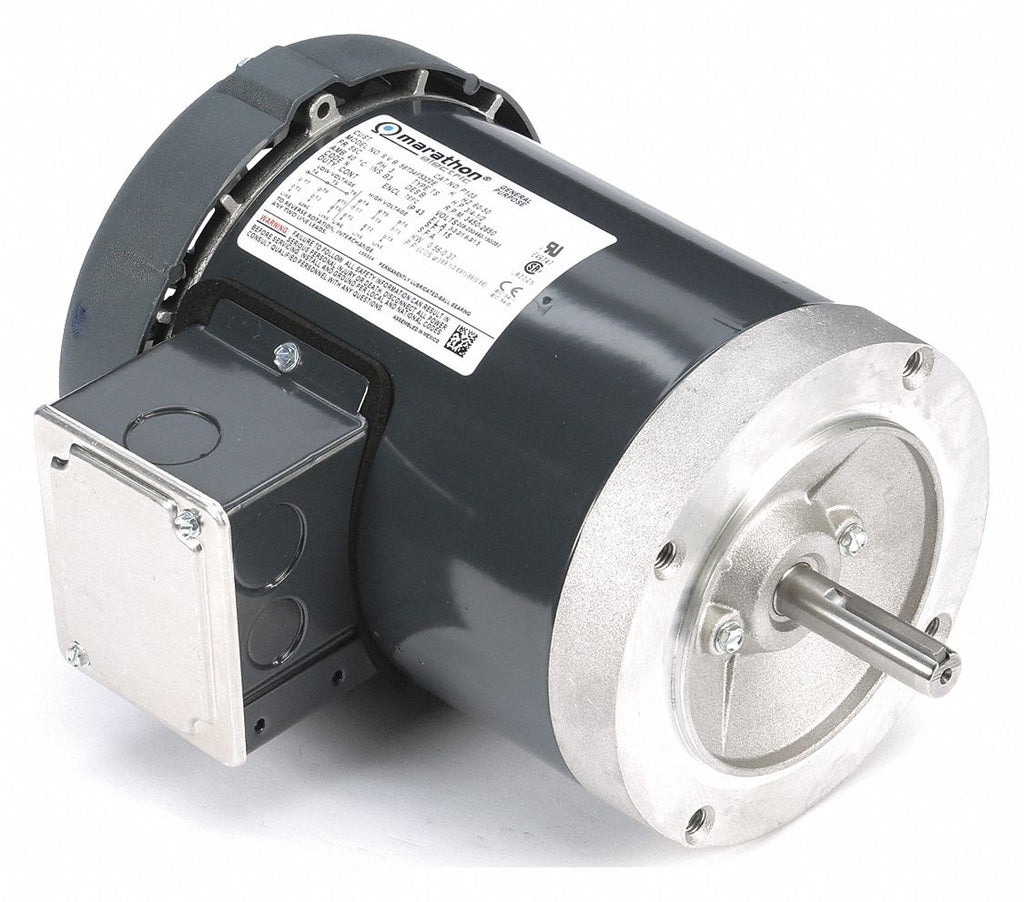

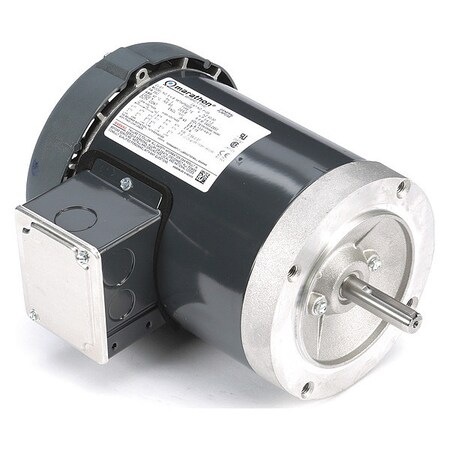

Motor, 3/4 HP, 3450 RPM, 208-230/460V, 56C
- Brand: Marathon Industries
- PartNumber: 056T34F5322
- PackageQuantity: 1
- Manufacturer: MARATHON MOTORS
- Label: MARATHON MOTORS
Attributes
| Key | Value |
|---|
| Classification | General Purpose |
| Composition | Rolled steel |
| Country of Origin (subj. | Mexico |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency % | 74 % |
| Enclosure | TEFC, Totally Enclosed . |
| Family Series | Marathon Electric Motors |
| Frame | 56C |
| Frame Material | Rolled steel |
| Frame Remarks | C-Face Footless |
| Full Load Amps | 3.2-3.0/1.60 |
| Full Load Amps @ 50Hz | 3.2-3.0/1.60 |
| Gross Weight | 0 lbs |
| Horsepower | 3/4 hp |
| HP | .75, 3/4 |
| HP @ 50Hz | 3/4 |
| Hz | 60/50 |
| Ins. Class | B |
| Item | General Purpose Motor |
| Item Condition | Factory New |
| Item Number | 056T34F5322 |
| Kilowatts | 0.56 kW |
| Length Less Shaft | 9 3/4 in |
| Manufacturer | Marathon Electric |
| Manufacturer Part Number | P103 |
| Manufacturers Warranty . | 1 yr |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Co. |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Mounting Type | Round |
| Nameplate RPM | 3,450 |
| NEMA Design | B |
| NEMA Frame | 56C |
| Net Weight | 22 lbs |
| No. of Speeds | 1 |
| Nominal Efficiency | 74 % |
| Nominal Voltage | 208 VAC, 240 VAC, 277 V. |
| Overall Length | 11 13/16 in |
| Phase | 3, Three |
| RPM | 3,450 RPM, 3600 |
| RPM @ 50Hz | 3,450 |
| RPM Group | 3001-3600 |
| RPM Range | 3,001-3,600 |
| Service Factor | 1.15 |
| Service Factor @ 50Hz | 1.15 |
| Shaft Dia. | 5/8 in |
| Shaft Length | 2 1/16 in |
| Standards | CE, CSA, UL Recognized |
| Usable @ 200V | No |
| Usable @ 208V | Yes |
| Voltage | 208-230/460V AC |
| Voltage (AC) | 208 VAC, 230 VAC, 460 V. |
| Voltage @ 50Hz | 208-230/460V AC |
| Voltage Compatibility | 200-230/440V AC, 200-23. |
| Volts | 208-230/460 |
| Weight | 22 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G5785902 | 223.94 | 1 | In Stock | | Marathon Motors | 21.6 | 223.94 @ 1 |
 | sustainablesupply.com | C2903154 | 234.01 | 1 | In Stock | | Marathon | 22.35 | 234.01 @ 1 |
 | Galco | 056T34F5322-MARA | 278.64 | 1 | In Stock | | Marathon Electric | 22.0 | 278.64 @ 1 |
 | Dealers Electric | 056T34F5322 | 280.23 | 1 | In Stock | | Marathon Electric | 25.0 | 280.23 @ 1 |
 | Purvis | P103 | 337.61 | 1 | In Stock | | Marathon | | 337.61 @ 1 |
 | Raptor Supplies | AJ2LGN | 554.4402435 | 1 | In Stock | | MARATHON MOTORS | | 554.4402435 @ 1 |
