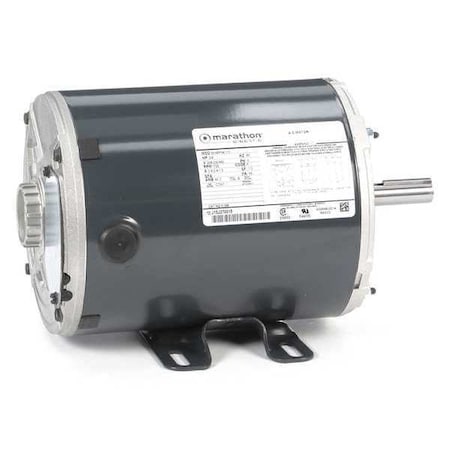

Marathon Industries 056T34F5334

Motor 3-Ph 3/4 HP 3450 RPM 575V

Motor 3-Ph 3/4 HP 3450 RPM 575Vzoom

Attributes

Key Value
ApplicationApplication
ApprovalApproval
ClassificationGeneral Purpose
CompositionRolled Steel
Constant Torque Speed R.Constant Torque Speed R.
Country of Origin (subj.Multiple
DutyContinuous
EfficiencyEfficiency
Efficiency %74 %
EnclosureTEFC, Totally Enclosed .
Family SeriesMarathon Electric Motors
Frame56
Frame MaterialRolled Steel, Frame Mat.
Frame RemarksRigid
Frequency RatingFrequency Rating
Full Load Amps1.3
Gross Weight0 lbs
Horsepower3/4 hp
HP.75, 3/4
Hz60
Ins. ClassB
Insulation ClassInsulation Class
Inverter RatedYes
ItemGeneral Purpose Motor
Item ConditionFactory New
Item Number056T34F5334
Kilowatts0.56 kW
Length Less Shaft9-1/2"
ManufacturerMarathon Electric
Manufacturer Part NumberG327
Manufacturers Warranty .1 yr.
Max. Ambient Temp.40 Degrees C
Motor ApplicationGeneral Application
Motor BearingsBall
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor FLAMotor FLA
Motor Frame MaterialRolled Steel
Motor Mounting PositionHorizontal
Motor Mounting TypeRigid Base
Motor Service Factor1.15
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionNone
Mounting TypeFooted
Nameplate RPM3450
NEMA Frame56
Net Weight23 lbs
No. of Speeds1
Nominal Efficiency66.5%
Nominal Voltage575 VAC
Number of SpeedsNumber of Speeds
Overall Length11-13/16"
Phase3
RPM3,450 RPM, 3600
RPM Group3001-3600
RPM Range3001-3600
Service FactorService Factor, 1.15
Shaft Dia.5/8"
Shaft Length2-5/16"
SpeedsSpeeds
StandardsUL (E49747), CSA (LR202.
UnspscUnspsc
Variable Torque Speed R.Variable Torque Speed R.
Voltage575
Voltage (AC)575 VAC
Voltage Compatibility575
Volts575

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomGalco056T34F5334-MARA72.541In StockMarathon Electric23.072.54 @ 1
thumbzoommecampbell.com056T34F533486.141In StockMarathon Motors86.14 @ 1
thumbzoomZoroG5801451209.441In StockMarathon Motors209.44 @ 1
thumbzoomDealers Electric056T34F5334238.221In StockMarathon Electric25.0238.22 @ 1
