Attributes
| Key ^ | Value |
|---|---|
| Application, Motor Sub Application | Condenser Fan |
| Body Dia. | 6 1/2 in |
| Capacitor Required, Removable Base, Usable @ 200V | No |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Country of Origin (subject to change) | Mexico |
| Duty, Duty Cycle | Continuous |
| Features | (4) Locating Screws 90 Degrees Apart, 3 5/16 in From Outer Edge of Shaft Slinger, Voltage Change Device for Quick Voltage Changes |
| Frame | 56Y |
| Full Load Amps, Full Load Amps @ 50Hz | 7.5-6.8/3.4 |
| HP | 1 1/2 |
| HP @ 50Hz | 1-1/2 |
| Hz | 60/50 |
| Ins. Class | H |

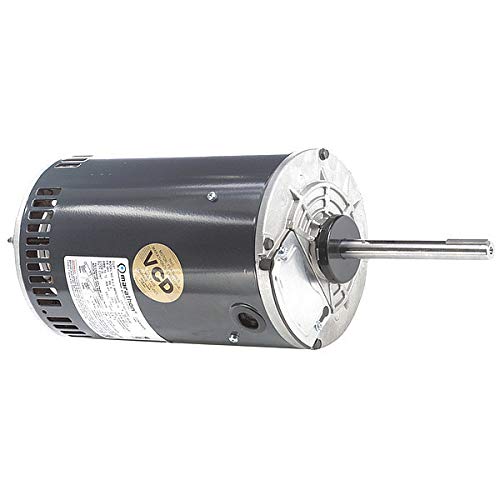

| Item | Condenser Fan Motor |
| Length Less Shaft | 12 1/16 in |
| Manufacturers Warranty Length | 1 yr |
| Max. Ambient Temp. | 70 Degrees C |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Air-Over |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal or Vertical Shaft Up |
| Motor Mounting Type | Round Belly Band |
| Motor Service Factor, No. of Speeds, Service Factor @ 50Hz | 1 |
| Motor Shaft Design | Keyed with Single Flat |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | Auto |
| Nameplate RPM, RPM @ 50Hz | 850 |
| Nominal Efficiency | 72 % |
| Output Watts | 1100 W |
| Overall Length | 17 1/16 in |
| Phase | Three |
| RPM Range | 0-1,000 |
| Shaft Dia. | 5/8 in |
| Shaft Length | 5 in |
| Standards | CSA Certified (LR2025), UL Recognized |
| Usable @ 208V | Yes |
| Voltage Compatibility | 200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC |
| Voltage, Voltage @ 50Hz | 208-230/460V AC |
| Weight | 47 lb |
