CAI - MARATHON MOTORS 182TTFBD6006

B07J29JKCB

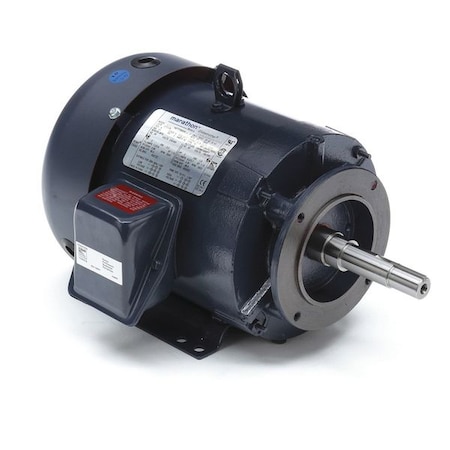

Marathon Motors 3 HP Close-Coupled Pump Motor,3-Phase,3505 Nameplate RPM,230/460 Voltage,182JM

Marathon Motors 3 HP Close-Coupled Pump Motor,3-Phase,3505 Nameplate RPM,230/460 Voltage,182JMzoom

Attributes

Key Value
Bolt Circle Dia.5 7/8 in
BrandMarathon Motors
CategoryElectric Motor
CC NumberCC003A
Conduit Box PositionF1, F2
Country of Origin (subj.Mexico
DutyContinuous
Duty CycleContinuous
EnclosureTEFC
Frame182JM
Frame MaterialRolled steel
Frame RemarksFOOTED
Full Load Amps8.2/4.1
Green Certification or .NEMA Premium(R) Rated
Gross Weight0 lbs
Height9 13/16 in
HP3
Hz60
Ins. ClassF
International ShippingNo
Inverter RatedYes
Inverter Rating10:1
ItemClose-Coupled Pump Motor
Item ConditionFACTORY NEW
Length Less Shaft13 1/8 in
ManufacturerMarathon Electric
Max. Ambient Temp.40 Degrees C
Motor ApplicationPump
Motor BearingsBall
Motor Design3-Phase
Motor Efficiency GroupNEMA Premium Efficient
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialSteel
Motor Mounting PositionHorizontal
Motor Mounting TypeFace/Base
Motor Service Factor1.15
Motor Shaft DesignKeyed, Threaded
Motor Shaft RotationCW/CCW
Motor Sub ApplicationClose-Coupled Pump
Motor Thermal ProtectionNone
mountingC-face w/ rigid base
Mpn182TTFBD6006
Nameplate RPM3,530
No. of Speeds1
Nominal Efficiency89.5 %
Overall Length17 3/8 in
Phase3, Three
RPM3600
RPM Range3,001-3,600
Shaft Dia.1 1/4 in
Shaft Length4 1/4 in
SKUZO-G6418557
StandardsCE, CSA, DIVISION 2 T2B.
SubCategoryMotors/Ac Motors
Usable @ 200VNo
Usable @ 208VNo
Voltage230/460V AC
Voltage Compatibility200-230/440V AC, 200-23.
Volts230/460
Weight126 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG6418557579.01In Stock25Marathon Motors75.0579.0 @ 1
thumbzoomGalco182TTFBD6006-MARA609.621In StockMarathon Electric609.62 @ 1
thumbzoomsimsupply.comZO-G6418557721.941In StockMarathon Motors721.94 @ 1
thumbzoomDealers Electric182TTFBD6006864.4719Marathon Electric126.0864.47 @ 1
thumbzoomsustainablesupply.comC27921681237.861In StockMarathon75.01237.86 @ 1
