Marathon Industries 213THFW7736

B07HCLVWB4

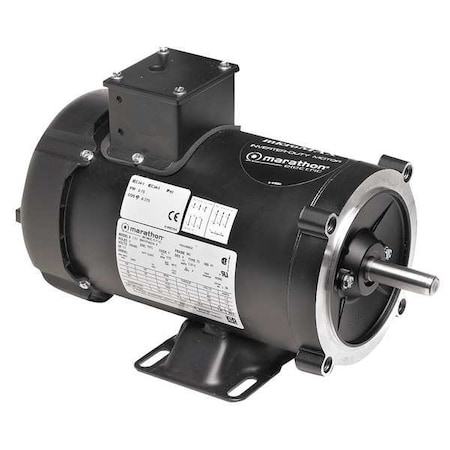

Vector Motor 7-1/2 HP 22.3 ft.-lb. 575V

Vector Motor 7-1/2 HP 22.3 ft.-lb. 575Vzoom

Attributes

Key Value
Ambient Temperature40 Degrees C
BaseBolt On
ClassificationInverter Vector Duty: M.
Country of Origin (subj.Mexico
DutyContinuous
EnclosureTEFC
Encoder AcceptableNo
Encoder ShaftNone
FinishBlack
Frame213TC
Frame MaterialRolled steel
Frame RemarksC Face, Footed
Full Load Amps8.5
HP7-1/2, 7.5
Hz60
Ins. ClassH
Insulation FeatureCR200 Magnet Wire Class.
ItemVector Motor
Item ConditionFactory New
ManufacturerMarathon Electric
Max. Operating Frequency120 Hz
Max. Speed4200 rpm
Motor ApplicationCrane
Motor BearingsBall
Motor Design3-Phase
Motor Efficiency GroupEnergy Efficient
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialRolled steel
Motor Mounting PositionHorizontal
Motor Mounting TypeFace/Base
Motor Service Factor1.00
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionNone
Nameplate RPM1770
NEMA DesignA
Nominal Efficiency89.5%
Overall Length21"
Phase3
RPM1800
RPM Range1701-1800
Shaft Dia.1-3/8"
Shaft Length3-1/8"
Speed Range20:1 CT
StandardsUL Recognized (E49747),.
Torque22.3 ft.-lb.
Voltage575
Voltage Compatibility575
Volts575

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG19816791610.931In Stock20Marathon Motors1610.93 @ 1
thumbzoomDealers Electric213THFW77361771.931In StockMarathon Electric98.01771.93 @ 1
