- mpn213THTL7736
- brandname: Marathon Motors
- manufacturername: Marathon Motors

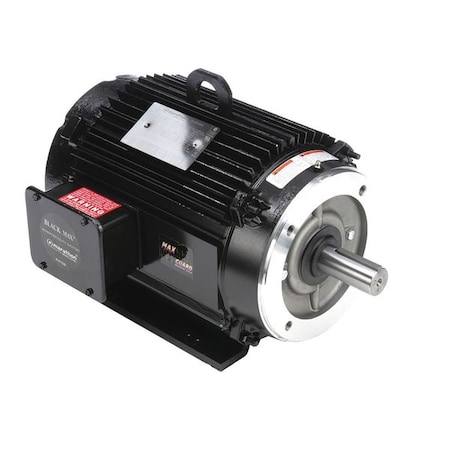

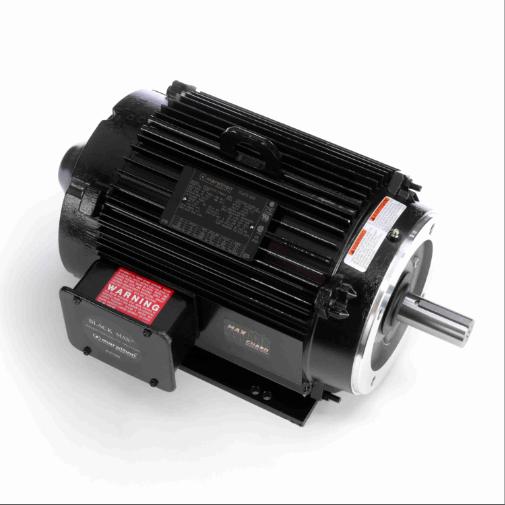

Marathon,7.50 HP Variable Speed Motor, 3 Phase, 1800 RPM, 575 V, 213TC Frame, TENV
- Brand: Marathon Electric
- PartNumber: 213THTL7736
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Regal Beloit
- Label: Regal Beloit
Attributes
| Key | Value |
|---|
| Ambient Temperature | 40 Degrees C |
| Application | Application |
| Approval | Approval |
| Base | Rigid |
| Classification | Inverter Vector Duty: B. |
| Composition | Aluminum |
| Conduit Box Position | F1, F2 |
| Constant Torque Speed R. | Constant Torque Speed R. |
| Country of Origin (subj. | United States |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | Efficiency |
| Efficiency % | 90.2 % |
| Enclosure | Totally Enclosed Non-Ve. |
| Encoder Acceptable | Yes |
| Encoder Shaft | Yes |
| Encoder Shaft Dimensions | 5/8 in x 1 3/4 in |
| Family Series | Marathon Electric Motors |
| Finish | Black |
| Frame | 213TC |
| Frame Material | Frame Material, Aluminum |
| Frame Remarks | C-Face Rigid |
| Frequency Rating | Frequency Rating |
| Full Load Amps | 8.4 |
| Gross Weight | 0 lbs |
| Horsepower | 7-1/2 hp |
| HP | 7 1/2, 7.5 |
| Hz | 60 |
| Ins. Class | F |
| Insulation Class | Insulation Class |
| Insulation Feature | MAX GUARD Class F |
| Item | Vector Motor |
| Item Condition | Factory New |
| Item Number | 213THTL7736 |
| Kilowatts | 5.5 kW |
| Manufacturer | Marathon Electric |
| Manufacturer Part Number | Y560 |
| Max. Ambient Temp. | 40 Degrees C |
| Max. Operating Frequency | 120 Hz |
| Max. Speed | 4,200 RPM |
| Motor Application | Crane |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Efficiency Group | Energy Efficient |
| Motor Enclosure Design | Totally Enclosed Nonven. |
| Motor FLA | Motor FLA |
| Motor Frame Material | Aluminum |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | T-Stat |
| Mounting Type | Footed |
| Nameplate RPM | 1,765 |
| NEMA Design | A |
| NEMA Frame | 213TC |
| Net Weight | 146 lbs |
| No. of Speeds | 1 |
| Nominal Efficiency | 90.2 % |
| Nominal Voltage | 575 VAC |
| Number of Speeds | Number of Speeds |
| Overall Length | 20 9/16 in |
| Phase | 3, Three |
| RPM | 1,765 RPM, 1800 |
| RPM Range | 1,701-1,800 |
| Service Factor | 1, Service Factor |
| Shaft Dia. | 1 3/8 in |
| Shaft Length | 3 1/8 in |
| Speed Range | 1,000:1 |
| Speeds | Speeds |
| Standards | CE, UL Recognized |
| Torque | 22.3 ft-lb |
| Unspsc | Unspsc |
| Usable @ 200V | No |
| Usable @ 208V | No |
| Variable Torque Speed R. | Variable Torque Speed R. |
| Voltage | 575V AC |
| Voltage (AC) | 575 VAC |
| Voltage Compatibility | 575V AC |
| Volts | 575 |
| Weight | 146 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Galco | 213THTL7736-MARA | 1910.01 | 1 | In Stock | | Marathon Electric | 146.0 | 1910.01 @ 1 |
 | Zoro | G5629811 | 1975.0 | 1 | In Stock | 26 | Marathon Motors | 146.0 | 1975.0 @ 1 |
 | mecampbell.com | 213THTL7736 | 2134.74 | 1 | In Stock | 33 | Marathon Motors | | 2134.74 @ 1 |
 | Dealers Electric | 213THTL7736 | 2195.96 | 1 | 12 | | Marathon Electric | 146.0 | 2195.96 @ 1 |
 | sustainablesupply.com | C1517455 | 2571.7 | 1 | In Stock | | Marathon | 146.0 | 2571.7 @ 1 |
 | Raptor Supplies | AD6NVZ | 3143.5860105 | 1 | In Stock | | MARATHON MOTORS | | 3143.5860105 @ 1 |
 | pumpproducts.com | 213THTL7736 | 3492.4 | 1 | In Stock | | Marathon | | 3492.4 @ 1 |
