CAI - MARATHON MOTORS 213TTDW6030

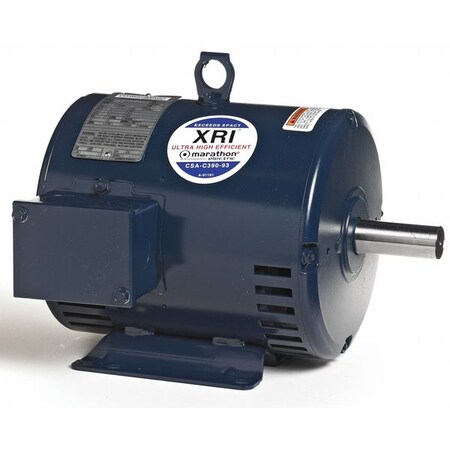

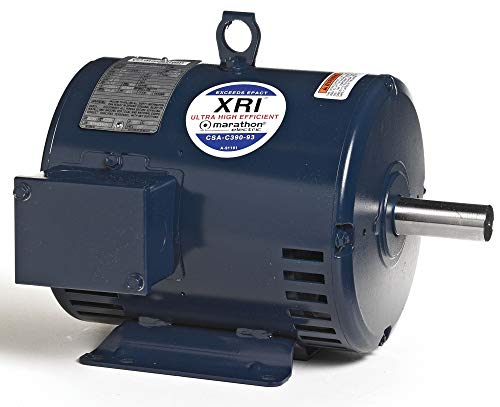

Marathon Motors 7-1/2 HP General Purpose Motor,3-Phase,1760 Nameplate RPM,Voltage 575,Frame 213T

Marathon Motors 7-1/2 HP General Purpose Motor,3-Phase,1760 Nameplate RPM,Voltage 575,Frame 213Tzoom

Attributes

Key Value
CC NumberCC003A
CompositionRolled Steel
Country of Origin (subj.Mexico
DutyContinuous
Efficiency %91 %
EnclosureOpen
Family SeriesMarathon Electric Motors
Frame213T
Frame MaterialRolled Steel
Full Load Amps7.7
Gross Weight0 lbs
Horsepower7-1/2 hp
HP7-1/2
Hz60
Ins. ClassF
Inverter RatedNo
ItemGeneral Purpose Motor
Item Number213TTDW6030
Kilowatts5.5 kW
Length Less Shaft15-1/16"
ManufacturerMarathon Electric
Manufacturer Part NumberE758A
Manufacturers Warranty .1 yr.
Max. Ambient Temp.40 Degrees C
Motor ApplicationGeneral Application
Motor BearingsBall
Motor Design3-Phase
Motor Efficiency GroupNEMA Premium Efficient
Motor Enclosure DesignOpen Dripproof
Motor Frame MaterialRolled Steel
Motor Mounting PositionHorizontal
Motor Mounting TypeRigid Base
Motor Service Factor1.15
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionNone
Mounting TypeFooted
Nameplate RPM1760
NEMA Frame213T
Net Weight200 lbs
No. of Speeds1
Nominal Efficiency91.7%
Nominal Voltage575 VAC
Overall Length18-9/16"
Phase3
RPM1,760 RPM
RPM Group1701-1800
RPM Range1701-1800
Service Factor1.15
Shaft Dia.1-3/8"
Shaft Length3-1/2"
StandardsUL (E49747), CSA (LR202.
Voltage575
Voltage (AC)575 VAC
Voltage Compatibility575

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG7410131672.161In Stock30Marathon Motors672.16 @ 1
thumbzoomGalco213TTDW6030-MARA970.51In StockMarathon Electric200.0970.5 @ 1
