Marathon Industries 213TTDWD16342

B07HCNVV7L

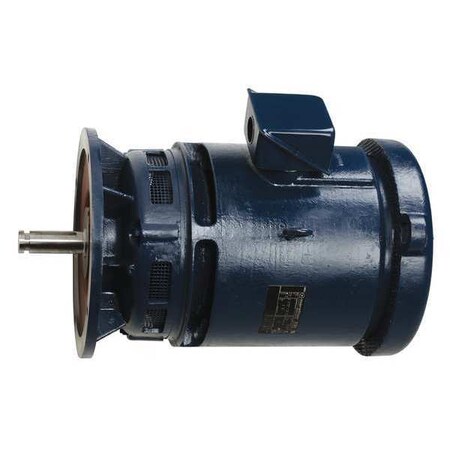

Vertical Pump Motor 7-1/2 HP 1765 RPM

Vertical Pump Motor 7-1/2 HP 1765 RPMzoom

Attributes

Key Value
Ambient Temperature40 Degrees C
BaseP-Base
CategoryElectric Motor
CC NumberCC003A
CompositionRolled Steel
Country of Origin (subj.Mexico
DutyContinuous
Efficiency %91 %
EnclosureODP, Open
Family SeriesMarathon Electric Motors
FinishEnamel
Frame213HPV
Full Load Amps20.0/10.0
Gross Weight0 lbs
Horsepower7-1/2 hp
HP7.50, 7-1/2
Hz60
Ins. ClassF
ItemVertical Pump Motor
Item ConditionFACTORY NEW
Item Number213TTDWD16342
Kilowatts5.5 kW
Length Less Shaft17-9/16"
ManufacturerMarathon Electric
Manufacturer Part NumberM807B
Motor ApplicationPump
Motor BearingsBall
Motor Design3-Phase
Motor Enclosure DesignOpen Dripproof
Motor Frame MaterialRolled Steel
Motor Mounting PositionAll Angle
Motor Mounting TypeFace
Motor Service Factor1.15
Motor Shaft RotationCW/CCW
Motor Sub ApplicationVertical Pump
Motor Thermal ProtectionNone
mountingSpecial
Mounting TypeRound
Nameplate RPM1765
NEMA Frame213HPV
NEMA StandardMG-1 18.237
Net Weight123 lbs
Nominal Efficiency91.7%
Nominal Voltage240 VAC, 277 VAC, 347 V.
Overall Length20-5/16"
Phase3
RPM1,765 RPM, 1800
RPM Range1101-1200
Service Factor1.15
Shaft Dia.1-1/8"
Shaft Length2-3/4"
StandardsUL (E49747), CSA (LR202.
Voltage230/460
Voltage (AC)230 VAC, 460 VAC
Voltage Compatibility208-230/460
Volts230/460
Warranty1 yr.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG84985551615.671In StockMarathon Motors1615.67 @ 1
thumbzoomGalco213TTDWD16342-MARA2231.01In StockMarathon Electric123.02231.0 @ 1
thumbzoomDealers Electric213TTDWD163422470.041In StockMarathon Electric123.02470.04 @ 1
thumbzoompumpproducts.com213TTDWD163423382.481In StockMarathon3382.48 @ 1
