| CC Number | CC003A |
| Country of Origin (subject to change) | United States |
| Duty | Continuous |
| Frame | 215T |
| Frame Material, Motor Frame Material | Cast Iron |
| Full Load Amps | 6.9 |
| HP | 5 |
| Hz | 60 |
| Includes | Max Guard Insulation |
| Ins. Class | F |

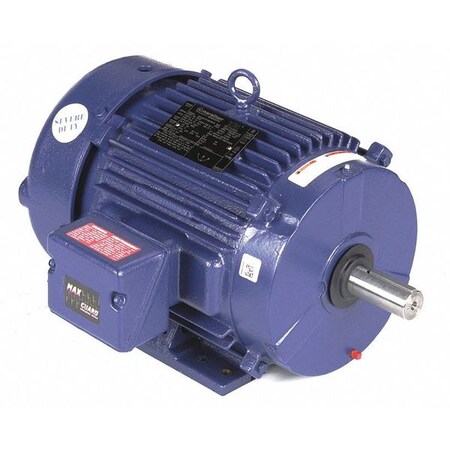

| Item | Severe Duty Motor |
| Length Less Shaft | 16-3/16" |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Efficiency Group | NEMA Premium Efficient |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Nameplate RPM | 1170 |
| No. of Speeds | 1 |
| Nominal Efficiency | 91.7% |
| Overall Length | 19-3/4" |
| Phase | 3 |
| RPM Group, RPM Range | 1101-1200 |
| Shaft Dia. | 1-3/8" |
| Shaft Length | 3-9/16" |
| Standards | UL (E49747), CSA (LR2025) |
| Voltage | 230/460 |
| Voltage Compatibility | 460, 208-230/460 |
