| CC Number | CC003A |
| Conduit Box Location | Exterior |
| Country of Origin (subject to change) | Mexico |
| Duty, Duty Cycle | Continuous |
| Frame | 254T |
| Frame Material, Motor Frame Material | Cast Iron |
| Full Load Amps | 35.0/17.5 |
| Green Certification or Other Recognition | NEMA Premium(R) Rated |
| Hazardous Location Class | 1 C,D / 2 F,G |
| Hazardous Location Division | Division 1 |
| HP | 15 |
| Hz | 60 |
| Includes | (11) Leads in Conduit Box |
| Ins. Class | F |

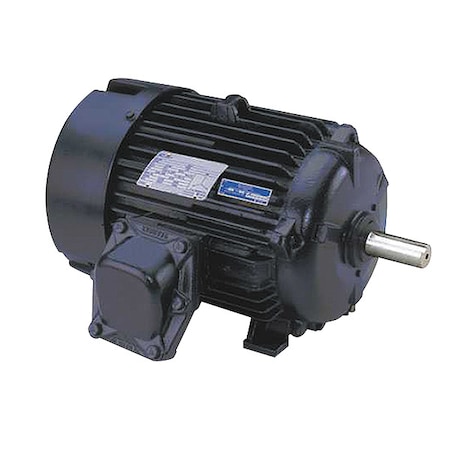

| Item | Hazardous Location Motor |
| Lead Length | 8 in |
| Length Less Shaft | 19 5/16 in |
| Manufacturers Warranty Length | 3 yr |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | Hazardous Location |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Efficiency Group | NEMA Premium Efficient |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | T-Stat |
| Nameplate RPM | 3,550 |
| NEMA Design | B |
| No. of Speeds | 1 |
| Nominal Efficiency | 91.7 % |
| Overall Length | 23 1/2 in |
| Phase | Three |
| RPM Range | 3,001-3,600 |
| Shaft Dia. | 1 5/8 in |
| Shaft Length | 4 3/16 in |
| Standards | CSA Certified, UL Listed |
| Temp. Code | T3B |
| Usable @ 200V, Usable @ 208V | No |
| Voltage | 230/460V AC |
| Voltage Compatibility | 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC |
| Weight | 2,270 lb |
