- mpn256TTFCD6026
- brandname: MARATHON MOTORS
- manufacturername: MARATHON MOTORS

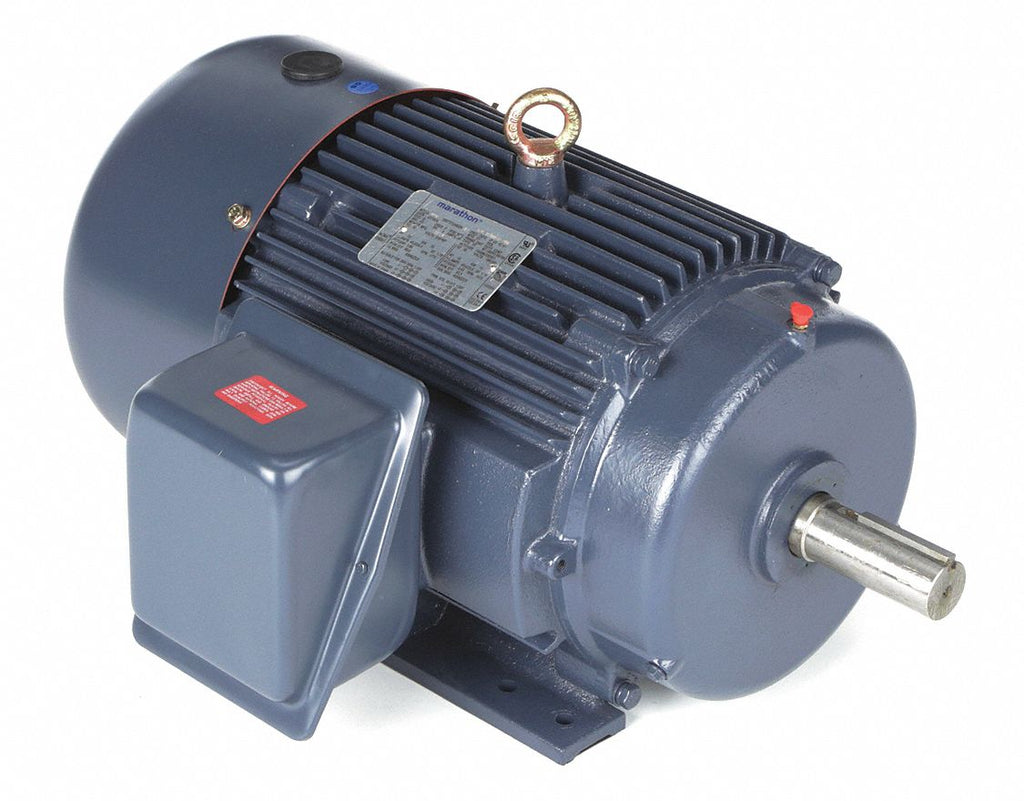

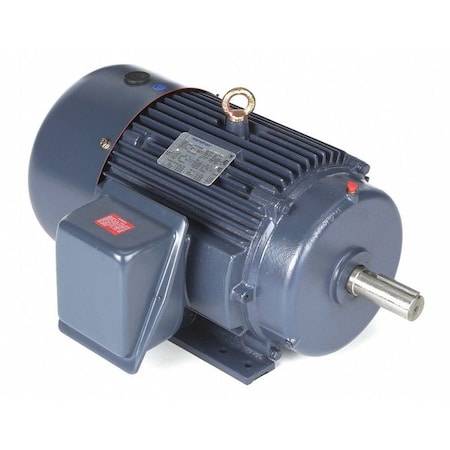

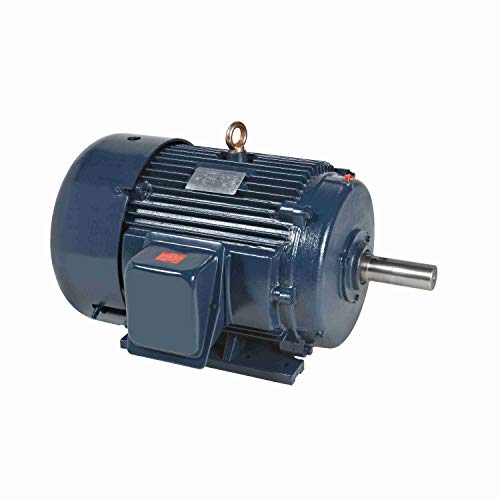

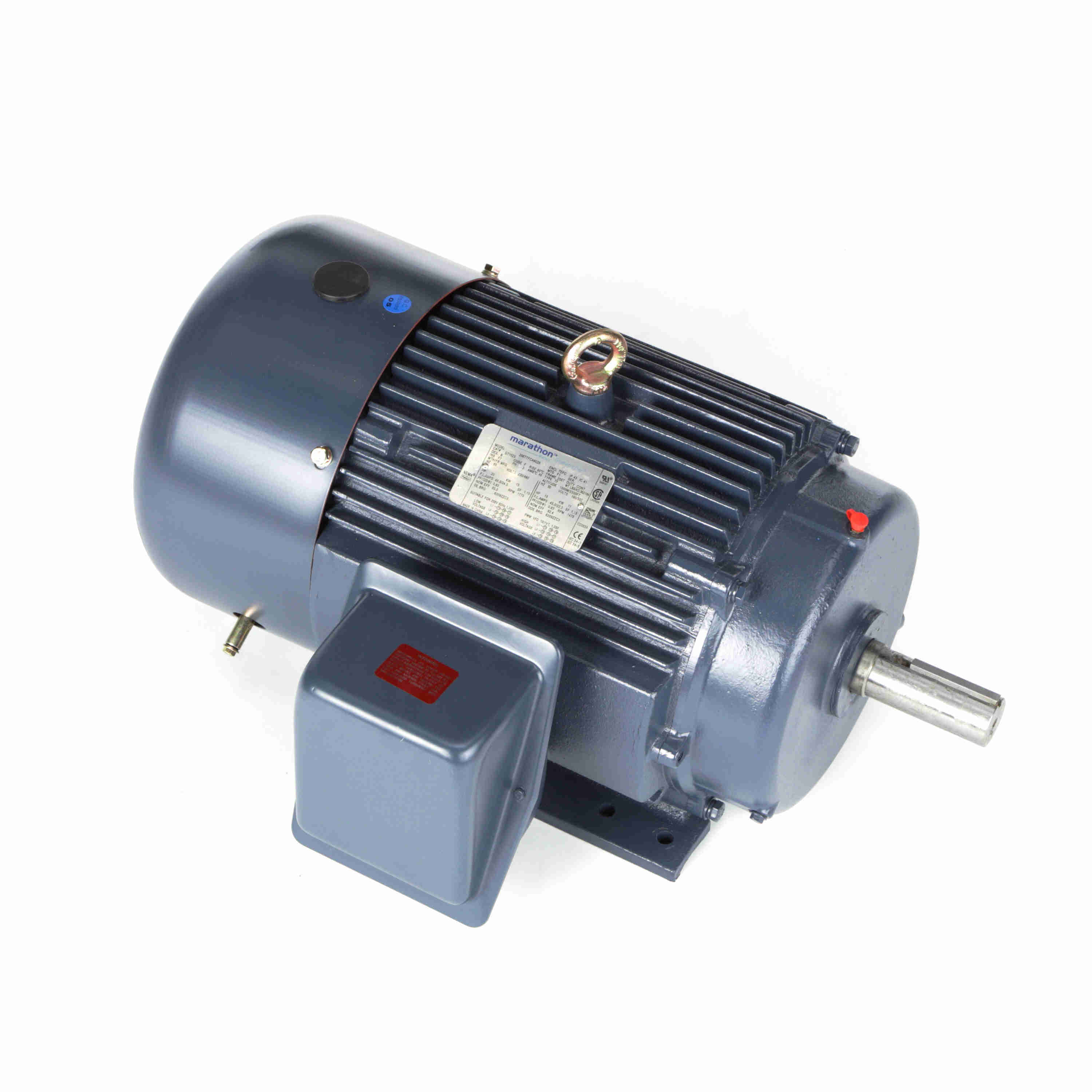

Marathon,20 HP General Purpose Motor, 3 Phase, 1800 RPM, 208-230/460 V, 256T Frame, TEFC
- Brand: Marathon Electric
- PartNumber: 256TTFCD6026
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Regal Beloit
- Label: Regal Beloit
Attributes
| Key | Value |
|---|
| Approval | Approval |
| CC Number | CC003A |
| Composition | Cast Iron |
| Constant Torque | Constant Torque |
| Construction | Cast Iron |
| Country of Origin (subj. | China |
| Drive End Flange Type | Standard |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | Efficiency |
| Efficiency % | 93 % |
| Enclosure | TEFC, Totally Enclosed . |
| Family Series | Marathon Electric Motors |
| FL Amps | 53.0-48.5/24.2 |
| FL Efficiency | 93 |
| Frame | 256T |
| Frame Material | Cast Iron, Frame Materi. |
| Full Load Amps | 53.0-48.5/24.2 |
| Green Certification or . | NEMA Premium(R) Rated |
| Gross Weight | 0 lbs |
| Hertz | 60 |
| Horsepower | 20 hp |
| HP | 20 |
| Hz | 60 |
| Includes | Conduit Box |
| Ins. Class | F |
| Insulation | Insulation |
| Inverter Rated | Yes |
| Item | General Purpose Motor |
| Item Condition | Factory New |
| Item Number | 256TTFCD6026 |
| Kilowatts | 14.9 kW |
| KW | 14.9 |
| Length Less Shaft | 21 7/8 in |
| Manufacturer | Marathon Electric, Mara. |
| Manufacturer Part Number | GT1025A |
| Manufacturers Warranty . | 1 yr |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Efficiency Group | NEMA Premium Efficient |
| Motor Enclosure Design | Totally Enclosed Fan-Co. |
| Motor Frame Material | Cast Iron |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| mounting | Rigid Base |
| Mounting | Footed |
| Mounting Type | Footed |
| Nameplate RPM | 1,768 |
| NEMA Design | B |
| NEMA Frame | 256T |
| Net Weight | 335 lbs |
| No. of Speeds | 1 |
| Nominal Efficiency | 92.4 % |
| Nominal Voltage | 208 VAC, 240 VAC, 277 V. |
| Number of Speeds | 1, Number of Speeds |
| Overall Length | 25 7/8 in |
| Part Number | 256TTFCD6026 |
| Phase | 3, Three |
| Product Type | General Purpose |
| RPM | 1,768 RPM, 1800 |
| RPM Group | 1701-1800 |
| RPM Range | 1,701-1,800 |
| Service Factor | Service Factor, 1.15 |
| Shaft Dia. | 1 5/8 in |
| Shaft Length | 4 in |
| Speed (RPM) | 1768 |
| Standards | CE, CSA, UL Listed |
| Usable @ 200V | No |
| Usable @ 208V | Yes |
| Variable Torque | Variable Torque |
| Voltage | 208-230/460V AC, 208V, . |
| Voltage (AC) | 208 VAC, 230 VAC, 460 V. |
| Voltage Compatibility | 200-230/440V AC, 200-23. |
| Volts | 208-230/460 |
| Weight | 335 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G9815671 | 1476.28 | 1 | In Stock | 15 | Marathon Motors | 374.0 | 1476.28 @ 1 |
 | Galco | 256TTFCD6026-MARA | 1485.95 | 1 | In Stock | | Marathon Electric | 335.0 | 1485.95 @ 1 |
 | sustainablesupply.com | C2791347 | 1581.68 | 1 | In Stock | | Marathon | 374.0 | 1581.68 @ 1 |
 | motorsandcontrol.com | GT1025A | 1660.76 | 1 | In Stock | | Marathon Motors | | 1660.76 @ 1 |
 | mecampbell.com | 256TTFCD6026 | 1711.15 | 1 | In Stock | 33 | Marathon Motors | | 1711.15 @ 1 |
 | Dealers Electric | 256TTFCD6026 | 1852.82 | 1 | 9 | | Marathon Electric | 335.0 | 1852.82 @ 1 |
 | Raptor Supplies | AD6EHB | 2981.603781 | 1 | In Stock | | MARATHON MOTORS | | 2981.603781 @ 1 |
 | pumpproducts.com | 256TTFCD6026 | 3174.77 | 1 | In Stock | | Marathon | | 3174.77 @ 1 |
