- mpn284TSTFCD6001
- brandname: MARATHON MOTORS
- manufacturername: MARATHON MOTORS

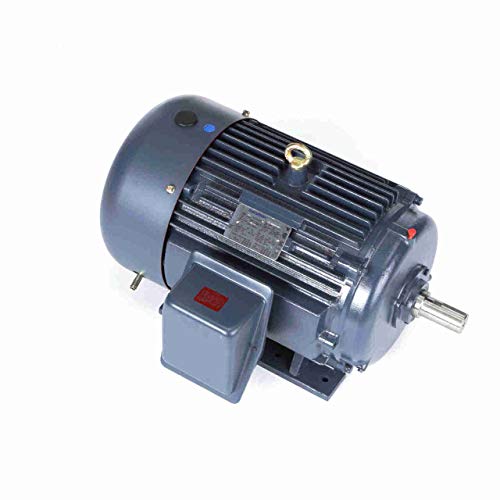

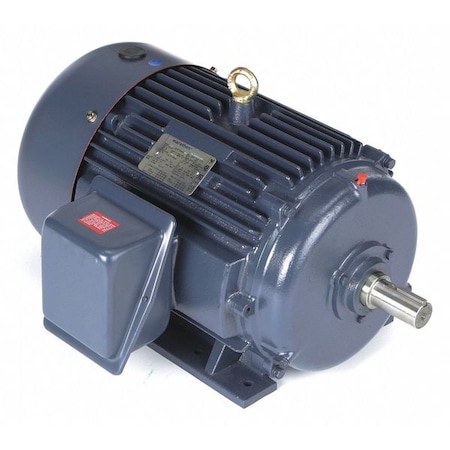

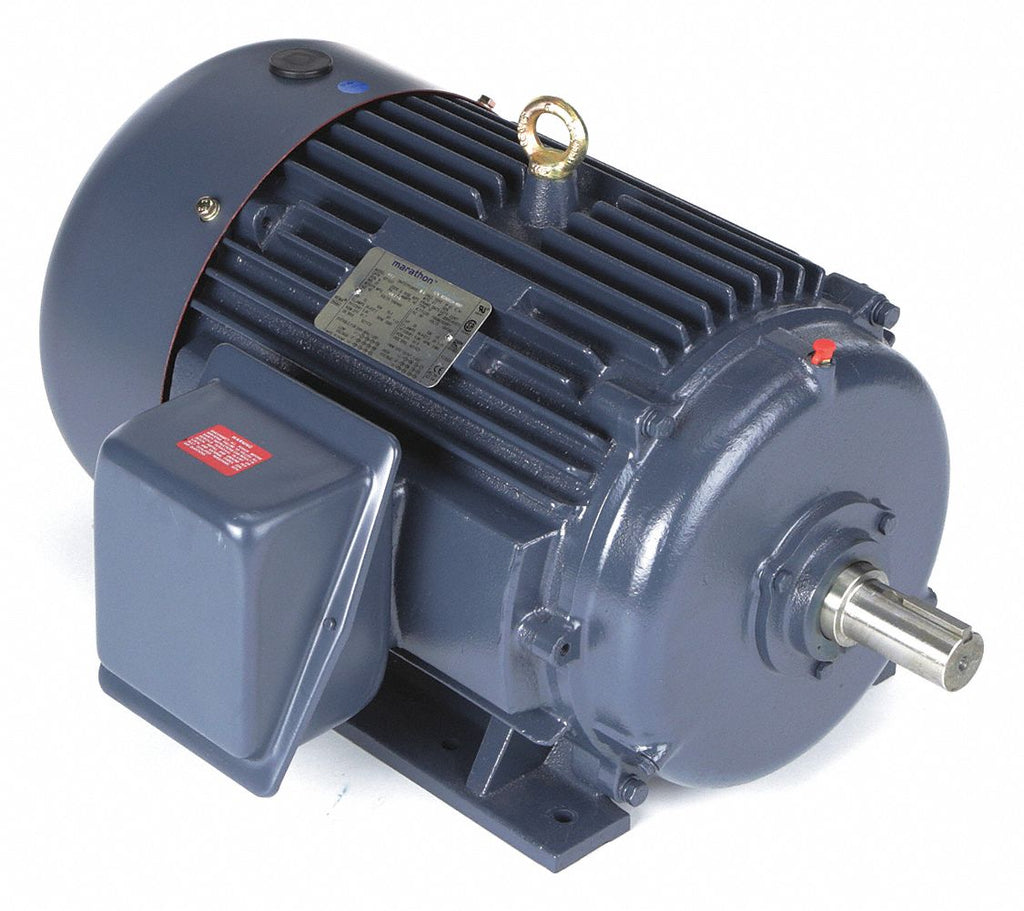

Marathon,25 HP General Purpose Motor, 3 Phase, 3600 RPM, 230/460 V, 284TS Frame, TEFC
- Brand: Marathon Electric
- PartNumber: 284TSTFCD6001
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Regal Beloit
- Label: Regal Beloit
Attributes
| Key | Value |
|---|
| Composition | Cast Iron |
| Efficiency % | 91.7 % |
| Enclosure | Totally Enclosed Fan Co. |
| Family Series | Marathon Electric Motors |
| Frame | 284TS |
| Gross Weight | 0 lbs |
| Horsepower | 25 hp |
| HP | 25 |
| Includes | Conduit Box |
| Item | General Purpose Motor |
| Item Number | 284TSTFCD6001 |
| Kilowatts | 18.7 kW |
| Length Less Shaft | 22 in |
| Manufacturer | Marathon Electric |
| Manufacturer Part Number | GT1027A |
| Manufacturers Warranty . | 1 yr |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Co. |
| Motor Frame Material | Cast Iron |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Mounting Type | Footed |
| Nameplate RPM | 3,555 |
| NEMA Frame | 284TS |
| Net Weight | 386 lbs |
| Nominal Voltage | 240 VAC, 277 VAC, 347 V. |
| Overall Length | 25 1/4 in |
| Phase | 3 |
| RPM | 3,555 RPM |
| RPM Range | 3,001-3,600 |
| Service Factor | 1.15 |
| Shaft Dia. | 1 5/8 in |
| Shaft Length | 3 1/4 in |
| Standards | CE, CSA, UL Listed |
| Voltage | 230/460V AC |
| Voltage (AC) | 230 VAC, 460 VAC |
| Voltage Compatibility | 200-230/440V AC, 200-23. |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Galco | 284TSTFCD6001-MARA | 1642.01 | 1 | In Stock | | Marathon Electric | 386.0 | 1642.01 @ 1 |
 | Zoro | G9875844 | 2129.99 | 1 | In Stock | | Marathon Motors | 510.0 | 2129.99 @ 1 |
 | sustainablesupply.com | C2791390 | 2764.19 | 1 | In Stock | | Marathon | 510.0 | 2764.19 @ 1 |
 | pumpproducts.com | 284TSTFCD6001 | 3631.89 | 1 | In Stock | | Marathon | | 3631.89 @ 1 |
