mpn:
brand:
manufacturer:
MPN:
Weight:
32.375
Weight:
486.0 LB
Preferred Price:
4665.08
Price:
4665.08
Min Simple Price:
2635.64
Absolute Min Price:
3742.6
Min Price:
3742.6
Dimensions:
[32.0, 23.0, 18.0]
qty:
21
simpleSku:
NDY2MA:::284TTDBD6007
sku:
NDY2MA::PT:284TTDBD6007@y0
condition:
11
seller:
Galco
amzMan:
marathon electric
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Bolt Circle Dia. | 11 in |
| Category | Electric Motor |
| CC Number | CC003A |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1, F2 |
| Country of Origin (subject to change) | Mexico |
| Duty, Duty Cycle | Continuous |
| Enclosure | ODP |
| Frame | 284JM |
| Frame Material, Motor Frame Material | Cast Iron |
| Frame Remarks | FOOTED |
| Full Load Amps | 71.5/35.5 |
| Green Certification or Other Recognition | NEMA Premium(R) Rated |
| Gross Weight | 0 lbs |
| Height | 15 in |
| HP | 30 |
| Hz | 60 |
| Ins. Class | F |
| Inverter Rated | Yes |
| Inverter Rating | 10:1 Variable Torque, 2:1 Constant Torque |

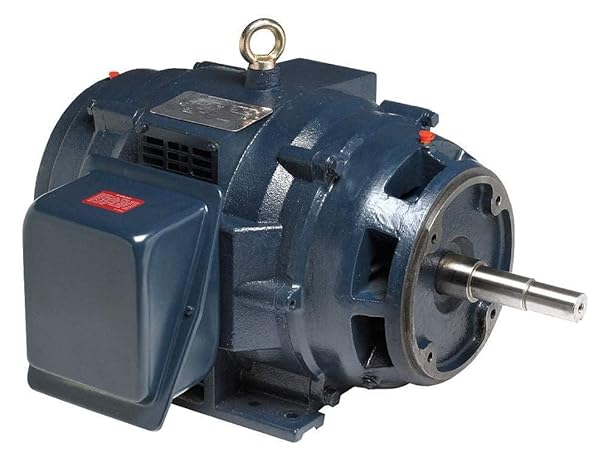

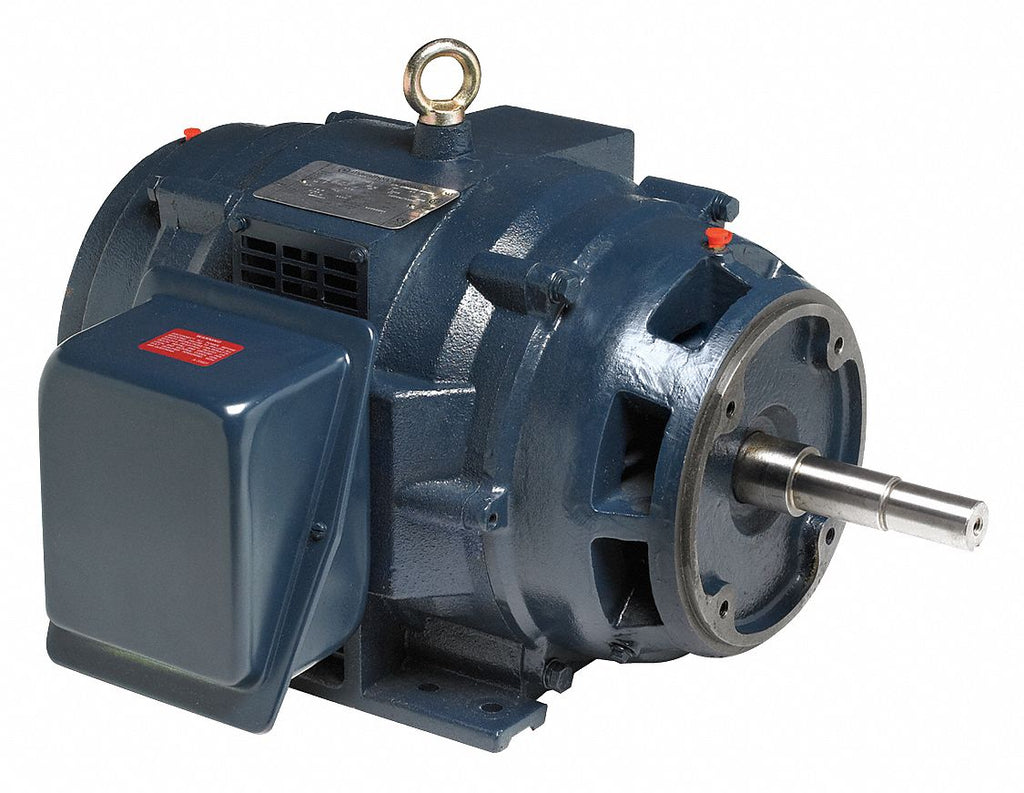

| Item | Close-Coupled Pump Motor |
| Item Condition | FACTORY NEW |
| Length Less Shaft | 21 5/16 in |
| Manufacturer | Marathon Electric |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Efficiency Group | NEMA Premium Efficient |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face/Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | JM Threaded |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Close-Coupled Pump |
| Motor Thermal Protection | None |
| mounting | C-face w/ rigid base |
| Nameplate RPM | 3,560 |
| NEMA Design | B |
| No. of Speeds | 1 |
| Nominal Efficiency | 91.7 % |
| Overall Length | 26 9/16 in |
| Phase | 3, Three |
| RPM | 3600 |
| RPM Range | 3,001-3,600 |
| Shaft Dia. | 1 1/4 in |
| Shaft Length | 5 1/4 in |
| Standards | CE Mark, CSA Certified, UL Recognized |
| Usable @ 200V, Usable @ 208V | No |
| Voltage | 230/460V AC |
| Voltage Compatibility | 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC |
| Volts | 230/460 |
| Weight | 486 lb |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | Galco | 284TTDBD6007-MARA | 2635.64 | 2635.64 | 1 | In Stock | Marathon Electric | 2635.64 @ Qty: 1+ | ||
 | Zoro | G9922631 | 2859.0 | 2859.0 | 1 | In Stock | 26 | Marathon Motors | 518.0 | 2859.0 @ Qty: 1+ |
 | Dealers Electric | 284TTDBD6007 | 3054.25 | 3054.25 | 1 | In Stock | Marathon Electric | 486.0 | 3054.25 @ Qty: 1+ | |
 | sustainablesupply.com | C2903331 | 4320.24 | 4320.24 | 1 | In Stock | Marathon | 518.0 | 4320.24 @ Qty: 1+ | |
 | pumpproducts.com | 284TTDBD6007 | 4612.82 | 4612.82 | 1 | In Stock | Marathon | 4612.82 @ Qty: 1+ |
