mpn:
brand:
manufacturer:
MPN:
Weight:
31.8125
Weight:
31.8125 LB
Preferred Price:
4466.84
Price:
4466.84
Min Simple Price:
2523.64
Absolute Min Price:
3583.56
Min Price:
3583.56
Dimensions:
[32.0, 23.0, 18.0]
qty:
21
simpleSku:
jEzMjc:::284TTDBD6032
sku:
jEzMjc::MQ:284TTDBD6032@y0
condition:
11
seller:
Galco
amzMan:
marathon electric / regal beloit
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Body Dia. | 13.4 in |
| Bolt Circle Dia. | 11 in |
| Category | Electric Motor |
| CC Number | CC003A |
| Composition | Rolled Steel |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1, F2 |
| Country of Origin (subject to change) | Mexico |
| Duty, Duty Cycle | Continuous |
| Efficiency %, Nominal Efficiency | 93.6 % |
| Enclosure | ODP, Open |
| Family Series | Marathon Electric Motors |
| Frame Material, Motor Frame Material | Cast Iron |
| Frame Remarks, Mounting Type | Footed |
| Frame, NEMA Frame | 284JM |
| Full Load Amps | 62.5/31.0 |
| Green Certification or Other Recognition | NEMA Premium(R) Rated |
| Gross Weight | 0 lbs |
| Height | 15 in |
| Horsepower | 25 hp |
| HP | 25 |
| Hz | 60 |
| Ins. Class | F |
| Inverter Rated | Yes |
| Inverter Rating | 10:1 Variable Torque, 2:1 Constant Torque |

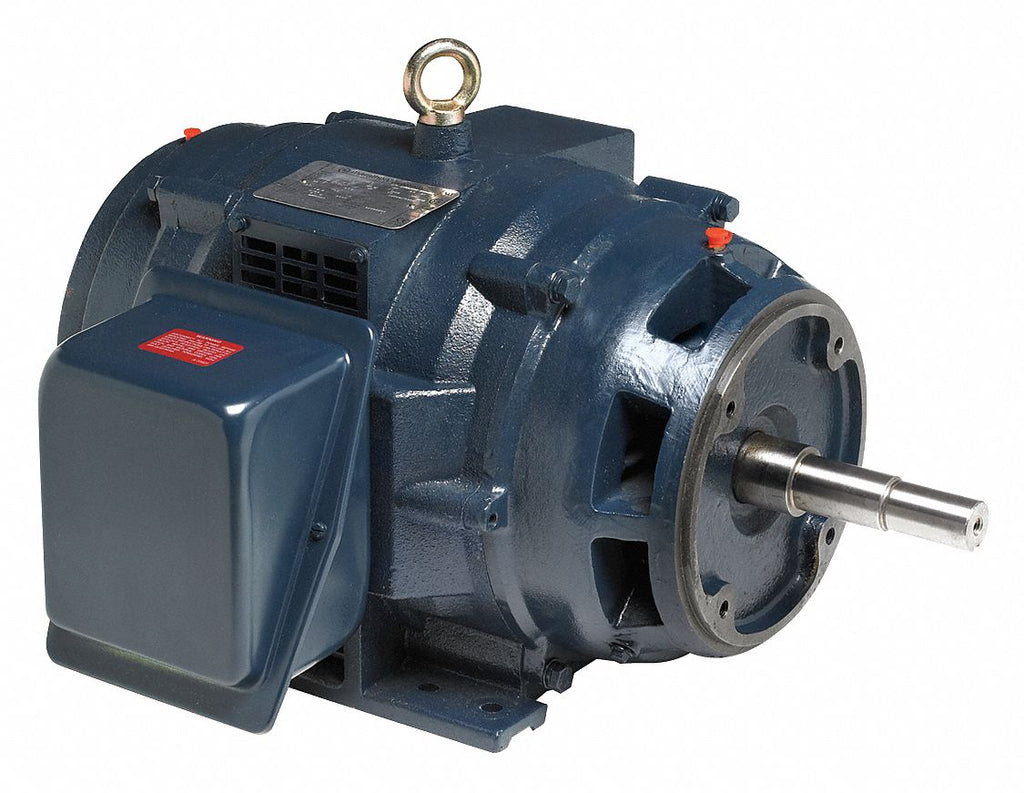

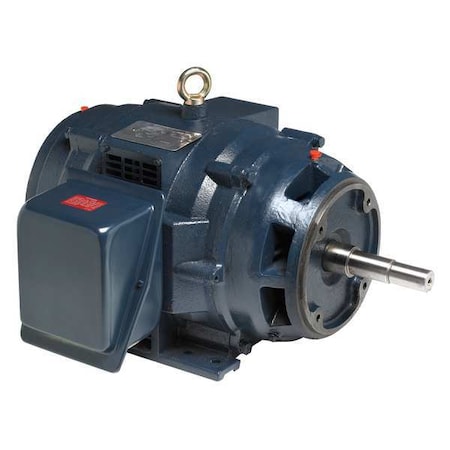

| Item | Close-Coupled Pump Motor |
| Item Condition | FACTORY NEW |
| Item Number | 284TTDBD6032 |
| Kilowatts | 18.7 kW |
| Length Less Shaft | 21 5/16 in |
| Manufacturer | Marathon Electric |
| Manufacturer Part Number | GT0465 |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Efficiency Group | NEMA Premium Efficient |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face/Base |
| Motor Service Factor, Service Factor | 1.15 |
| Motor Shaft Design | JM Threaded |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Close-Coupled Pump |
| Motor Thermal Protection | None |
| mounting | C-face w/ rigid base |
| Nameplate RPM | 1,775 |
| NEMA Design | B |
| Net Weight | 388 lbs |
| No. of Speeds | 1 |
| Nominal Voltage | 240 VAC, 277 VAC, 347 VAC, 380 VAC, 415 VAC, 480 VAC |
| Overall Length | 26 9/16 in |
| Phase | 3, Three |
| RPM | 1,775 RPM, 1800 |
| RPM Range | 1,701-1,800 |
| Shaft Dia. | 1 1/4 in |
| Shaft Length | 5 1/4 in |
| Standards | CE Mark, CSA Certified, UL Recognized |
| Usable @ 200V, Usable @ 208V | No |
| Voltage | 230/460V AC |
| Voltage (AC) | 230 VAC, 460 VAC |
| Voltage Compatibility | 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC |
| Volts | 230/460 |
| Weight | 388 lb |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | Galco | 284TTDBD6032-MARA | 2523.64 | 2523.64 | 1 | In Stock | Marathon Electric | 388.0 | 2523.64 @ Qty: 1+ | |
 | sustainablesupply.com | C2791736 | 2621.72 | 2621.72 | 1 | In Stock | Marathon | 509.0 | 2621.72 @ Qty: 1+ | |
 | Zoro | G9824193 | 2773.0 | 2773.0 | 1 | In Stock | 26 | Marathon Motors | 509.0 | 2773.0 @ Qty: 1+ |
 | Dealers Electric | 284TTDBD6032 | 2937.21 | 2937.21 | 1 | 3 | Marathon Electric | 388.0 | 2937.21 @ Qty: 1+ | |
 | pumpproducts.com | 284TTDBD6032 | 4519.58 | 4519.58 | 1 | In Stock | Marathon | 4519.58 @ Qty: 1+ |
