| Bolt Circle Dia. | 11 in |
| CC Number | CC003A |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1, F2 |
| Country of Origin (subject to change) | Mexico |
| Duty, Duty Cycle | Continuous |
| Frame | 284JP |
| Frame Material, Motor Frame Material | Cast Iron |
| Full Load Amps | 62.5/31.0 |
| Green Certification or Other Recognition | NEMA Premium(R) Rated |
| Height | 15 in |
| HP | 25 |
| Hz | 60 |
| Ins. Class | F |
| Inverter Rated | Yes |
| Inverter Rating | 10:1 Variable Torque, 2:1 Constant Torque |

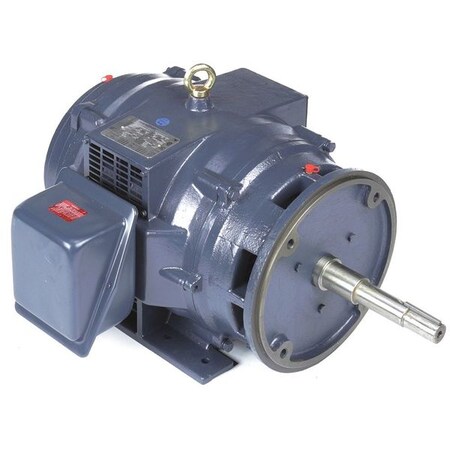

| Item | Close-Coupled Pump Motor |
| Length Less Shaft | 21 1/8 in |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Efficiency Group | NEMA Premium Efficient |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face/Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed, Threaded |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Close-Coupled Pump |
| Motor Thermal Protection | None |
| Nameplate RPM | 1,775 |
| NEMA Design | B |
| No. of Speeds | 1 |
| Nominal Efficiency | 93.6 % |
| Overall Length | 29 1/2 in |
| Phase | Three |
| RPM Range | 1,701-1,800 |
| Shaft Dia. | 1 1/4 in |
| Shaft Length | 8 7/16 in |
| Standards | CE Mark, CSA Certified, UL Recognized |
| Usable @ 200V, Usable @ 208V | No |
| Voltage | 230/460V AC |
| Voltage Compatibility | 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC |
| Weight | 426 lb |
