- mpn5K38PN48
- brandname: MARATHON MOTORS
- manufacturername: MARATHON MOTORS

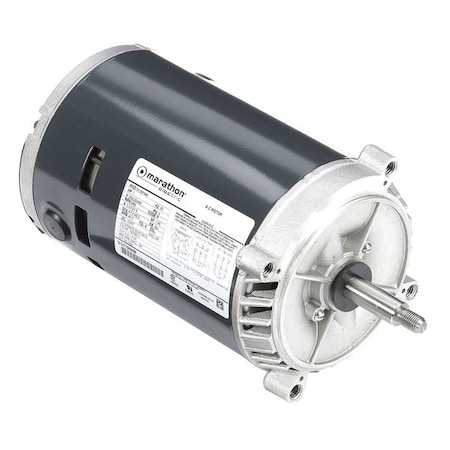

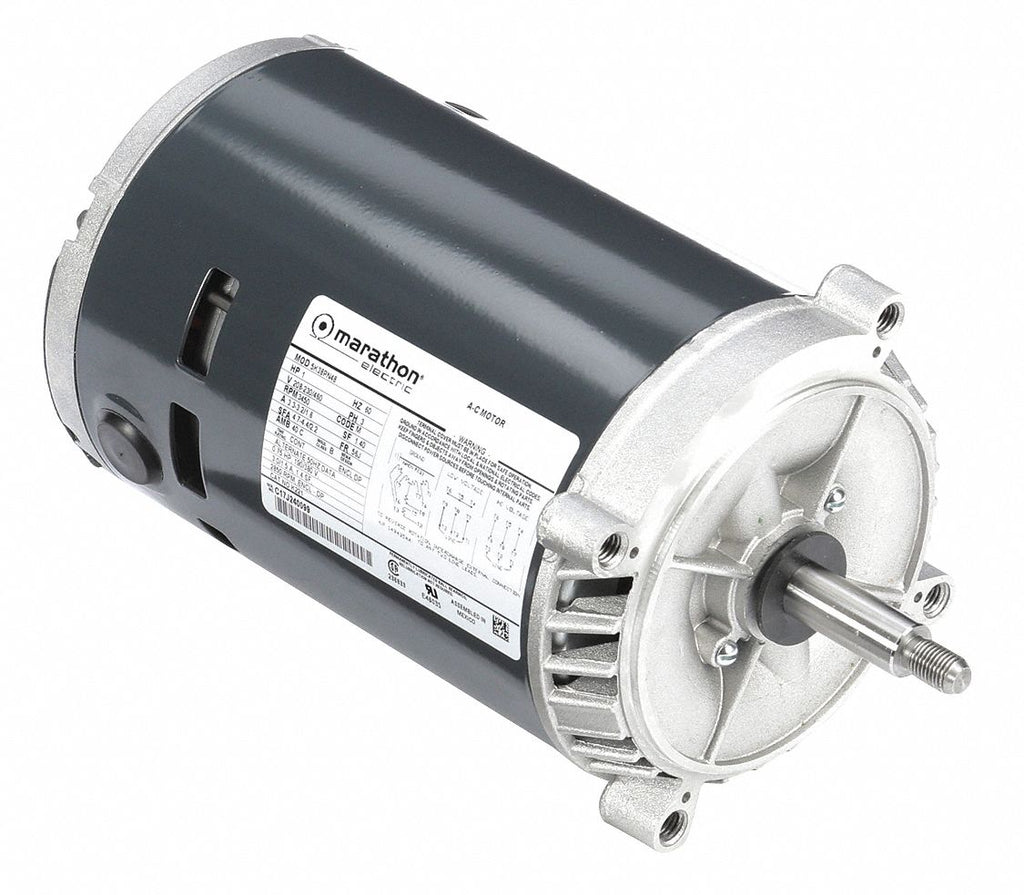

Mtr, 3 Ph, 1 HP, 3450, 208-230/460V, 56J, ODP
- Brand: Marathon Industries
- PartNumber: 5K38PN48
- Model: 5K38PN48
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: MARATHON MOTORS
- Label: MARATHON MOTORS
Attributes
| Key | Value |
|---|
| Body Dia. | 5.6 in |
| Bolt Circle Dia. | 4 1/2 in |
| Classification | Centrifugal Pump Jet Pu. |
| Composition | Rolled Steel |
| Country of Origin (subj. | Mexico |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency % | 75.4 % |
| Enclosure | ODP, Open |
| Family Series | Marathon Electric Motors |
| Frame | 56J |
| Frame Remarks | N/R |
| Full Load Amps | 3.3-3.2/1.60 |
| Gross Weight | 0 lbs |
| Height | 5 11/16 in |
| Horsepower | 1 hp |
| HP | 1 |
| Hz | 60 |
| Includes | Shaft Slinger and Gaske. |
| Ins. Class | B |
| Item | General Purpose Pump Mo. |
| Item Condition | Factory New |
| Item Number | 5K38PN48 |
| Kilowatts | 0.75 kW |
| Length Less Shaft | 11 9/16 in |
| Manufacturer | Marathon Electric |
| Manufacturer Part Number | K221 |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.4 |
| Motor Shaft Design | Threaded |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Jet Pump |
| Motor Thermal Protection | None |
| Mounting Type | Round |
| Nameplate RPM | 3,450 |
| NEMA Frame | 56J |
| Net Weight | 19 lbs |
| No. of Speeds | 1 |
| Nominal Efficiency | 75.4 % |
| Nominal Voltage | 208 VAC, 240 VAC, 277 V. |
| Overall Length | 11 13/16 in |
| Phase | 3, Three |
| RPM | 3,450 RPM, 3600 |
| RPM Range | 3,001-3,600 |
| Service Factor | 1.4 |
| Shaft Dia. | 5/8 in |
| Shaft Length | 2 3/8 in |
| Shaft Material | Stainless Steel |
| Standards | CSA, IP 22, UL |
| Starter Required | No |
| Usable @ 200V | No |
| Usable @ 208V | Yes |
| Voltage | 208-230/460V AC |
| Voltage (AC) | 208 VAC, 230 VAC, 460 V. |
| Voltage Compatibility | 200-230/440V AC, 200-23. |
| Volts | 208-230/460 |
| Weight | 19 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Galco | 5K38PN48-MARA | 72.79 | 1 | In Stock | | Marathon Electric | 19.0 | 72.79 @ 1 |
 | Zoro | G0421032 | 199.04 | 1 | In Stock | 20 | Marathon Motors | 19.2 | 199.04 @ 1 |
 | Dealers Electric | 5K38PN48 | 256.27 | 1 | In Stock | | Marathon Electric | 25.0 | 256.27 @ 1 |
| AmazonTP | B0078R5DS2 | 260.64 | 1 | In Stock | 2 | MARATHON MOTORS | | 260.64 @ 1 |
 | sustainablesupply.com | C1561488 | 392.34 | 1 | In Stock | | Marathon | 19.2 | 392.34 @ 1 |
| motionindustries.com | 00535282 | 490.2 | 1 | In Stock | | Marathon Electric | | 490.2 @ 1 |
