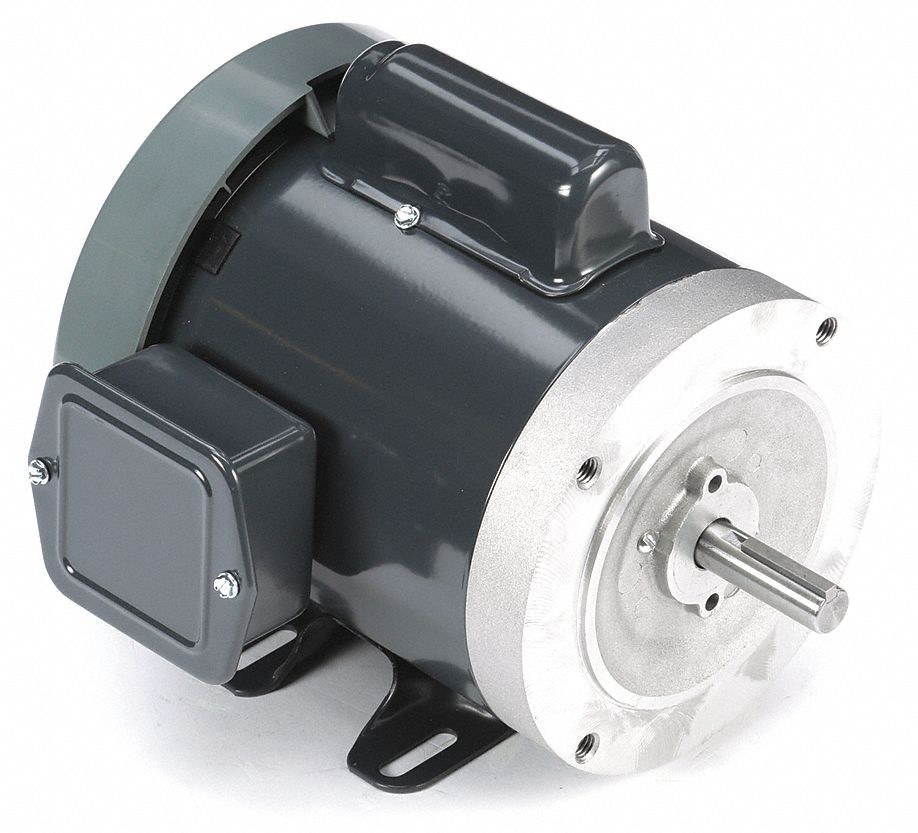

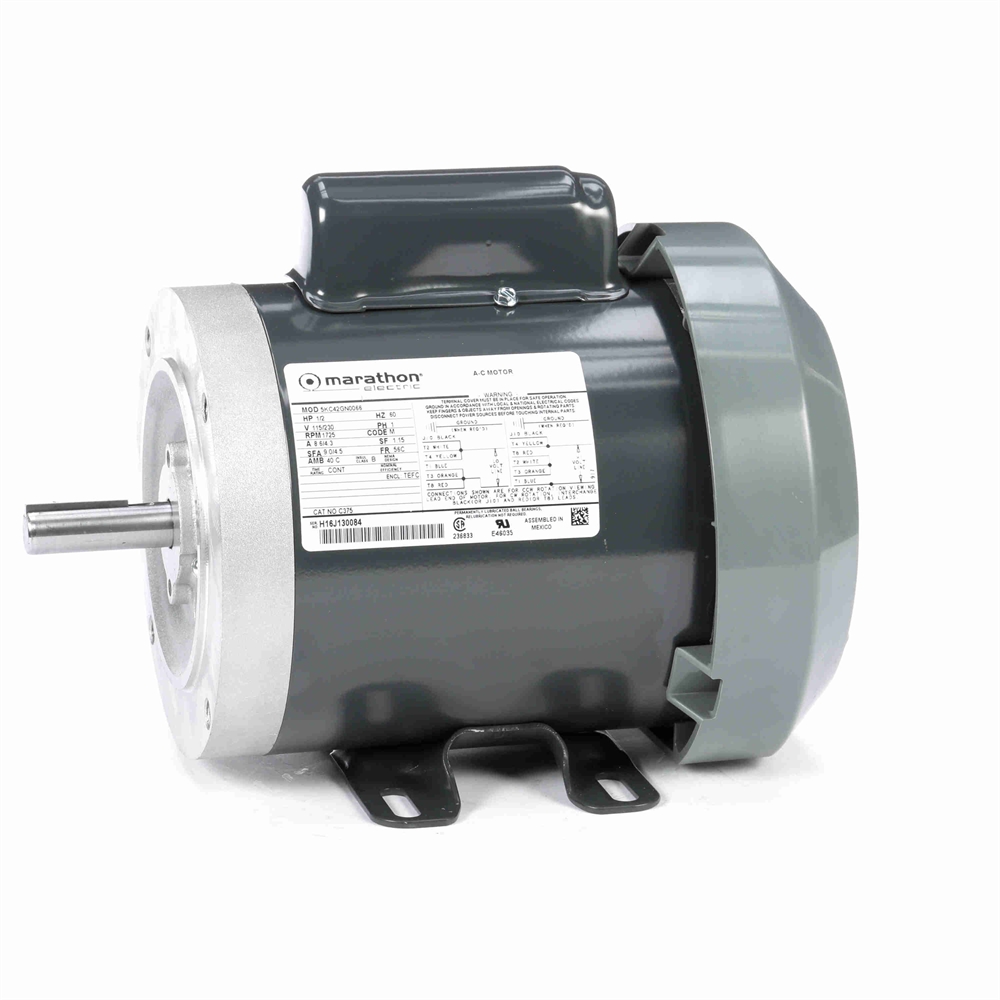

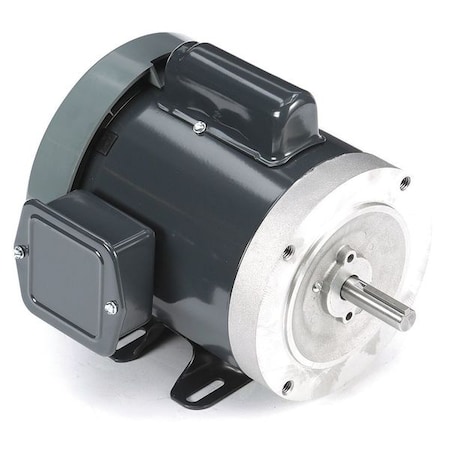

Marathon Electric 5KC42GN0066

Marathon Electric/Regal Beloit - 5KC42GN0066-1/2 HP General Purpose Motor, Capacitor-Start, 1725 Nameplate RPM, Voltage 115/230, Frame 56Czoom

Marathon Electric/Regal Beloit - 5KC42GN0066-1/2 HP General Purpose Motor, Capacitor-Start, 1725 Nameplate RPM, Voltage 115/230, Frame 56C

B073ZMNNXZ

Attributes

Key Value
Amperage8.6/4.3 Amps
BearingsBall
BrandMarathon Motors
Catalog NumberC375
ClassificationGeneral Purpose
CompositionRolled Steel
ConstructionRolled Steel
Current Stock22
Drive End Flange TypeC-Face
DutyContinuous
Efficiency %64 %
EnclosureTEFC, Totally Enclosed Fan Cooled
Family SeriesMarathon Electric Motors
FL Amps8.6
FL Efficiency64
Frame56C
Frame RemarksWB
Full Load Current8.6 A
Gross Weight0 lbs
Hertz60
Horsepower1/2 hp
HP0.5, 1/2, .50
International ShippingNo
Inverter RatedNo
ItemGeneral Purpose Motor
Item ConditionFactory New
Item Number5KC42GN0066
Kilowatts0.37 kW
KW0.37
Lead TimeExpected to ship in 1-2 business days
Length Less Shaft9 1/8 in
ManufacturerMarathon Electric, Marathon Motors
Manufacturer Part NumberC375
Manufacturers Warranty Length2 yr
Model Number5KC42GN0066
Motor ApplicationGeneral Application
Motor DesignCapacitor-Start
Motor Enclosure DesignTotally Enclosed Fan-Cooled
Motor Frame MaterialSteel
Motor Mounting PositionHorizontal
Motor Mounting TypeRigid Base
Motor Service Factor1.15
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionNone
MountingFooted
Mounting TypeFooted
Mpn5KC42GN0066
Nameplate RPM1,725
NEMA Frame56C
Net Weight23 lbs
No. of Speeds1
Nominal Voltage120 VAC, 240 VAC
Number of Speeds1
Overall Length11 in
Part Number5KC42GN0066
Phase1
Power1/2 hp
Product TypeGeneral Purpose
RotationReversible
RPM1800, 1,725 RPM
Service Factor1.15
Shaft5/8" diam. x 1-7/8" w/ 3/16" keyway
Shaft Dia.5/8 in
Shaft Length1 7/8 in
Shpg.24 lbs.
Size8.89" x 9.07" x 8.84"
SKUZO-G7501891
Speed1725 RPM
Speed (RPM)1725
StandardsCSA Certified, UL Listed
SubCategoryMotors/Ac Motors
Voltage110-120V, 230V, 115/230V AC, 115/230 AC
Voltage (AC)110-120 VAC, 230 VAC
Voltage Compatibility115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Volts115/230

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomGalco5KC42GN0066-MARA358.821In StockMarathon Electric23.0358.82 @ 1
thumbzoomZoroG7501891358.9911Marathon Motors21.67358.99 @ 1
thumbzoomDealers Electric5KC42GN0066365.21In StockMarathon Electric25.0365.2 @ 1
thumbzoommotorsandcontrol.comC375401.021In StockMarathon Motors401.02 @ 1
thumbzoomsimsupply.comZO-G7501891424.92122Marathon Motors424.92 @ 1
thumbzoomsurpluscenter.com10-3381443.4516Marathon443.45 @ 1
thumbzoomsustainablesupply.comC2792457508.431In StockMarathon21.67508.43 @ 1
thumbzoomRaptor SuppliesAF7NAB594.86596651In StockMARATHON MOTORS594.8659665 @ 1
thumbzoompumpproducts.com5KC42GN0066629.191In StockMarathon629.19 @ 1
