- mpn5KC46LN0158
- brandname: Marathon Motors
- manufacturername: Marathon Motors

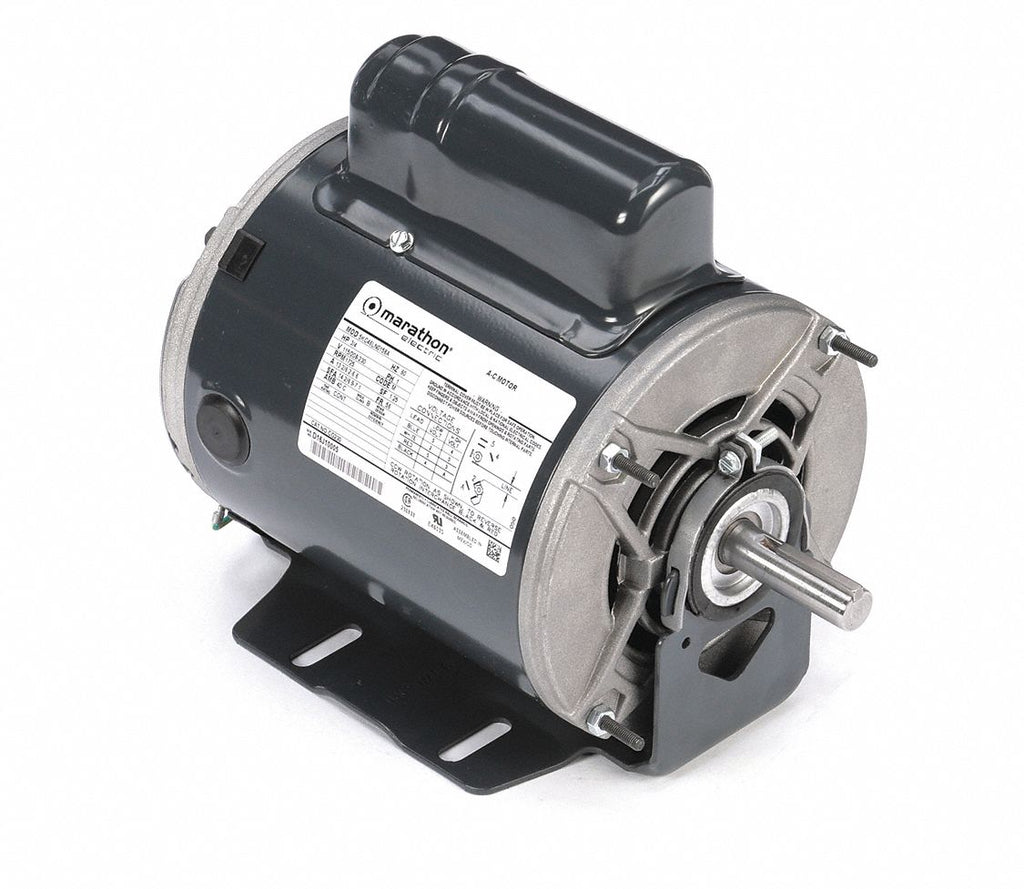

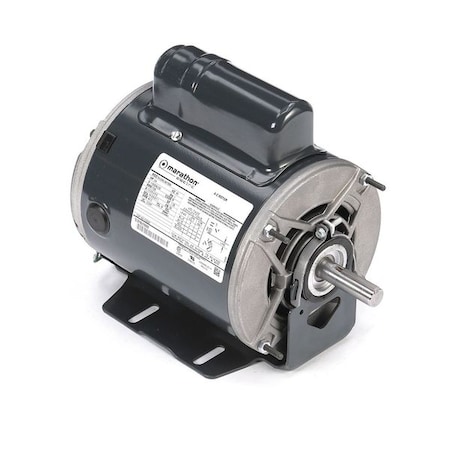

Marathon Motors 3/4 HP General Purpose Motor,Capacitor-Start,1725 Nameplate RPM,Voltage 115/208-230,Frame 56
- Brand: CAI - MARATHON MOTORS
- PartNumber: 5KC46LN0158
- PackageQuantity: 1
- Manufacturer: CAI - MARATHON MOTORS
- Label: CAI - MARATHON MOTORS
Attributes
| Key | Value |
|---|
| Brand | Marathon Motors |
| Classification | Fan and Blower Duty |
| Composition | Rolled steel |
| Country of Origin (subj. | Mexico |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency % | 66 % |
| Enclosure | ODP, Open |
| Family Series | Marathon Electric Motors |
| Frame | 56 |
| Frame Material | Rolled steel |
| Frame Remarks | Resilient Base |
| Full Load Amps | 13.2/6.6-6.2 |
| Gross Weight | 0 lbs |
| Horsepower | 3/4 hp |
| HP | .75, 3/4 |
| Hz | 60 |
| Ins. Class | B |
| International Shipping | No |
| Inverter Rated | No |
| Item | General Purpose Motor |
| Item Condition | Factory New |
| Item Number | 5KC46LN0158 |
| Kilowatts | 0.56 kW |
| Length Less Shaft | 8 7/8 in |
| Manufacturer | Marathon Electric |
| Manufacturer Part Number | CG230 |
| Manufacturers Warranty . | 1 yr |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Cradle Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Mounting Type | Resilient Mount |
| Mpn | 5KC46LN0158 |
| Nameplate RPM | 1,725 |
| NEMA Frame | 56 |
| Net Weight | 25 lbs |
| No. of Speeds | 1 |
| Nominal Efficiency | 66 % |
| Nominal Voltage | 120 VAC, 208 VAC, 240 V. |
| Overall Length | 10 3/4 in |
| Phase | 1, Single |
| RPM | 1800, 1,725 RPM |
| RPM Group | 1701-1800 |
| RPM Range | 1,701-1,800 |
| Service Factor | 1.25 |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 7/8 in |
| SKU | ZO-G5649813 |
| Standards | CSA Certified, UL Listed |
| SubCategory | Motors/Ac Motors |
| Usable @ 200V | No |
| Usable @ 208V | Yes |
| Voltage | 115/208-230V AC |
| Voltage (AC) | 110-120 VAC, 208 VAC, 3. |
| Voltage Compatibility | 115/200-230V AC, 115/20. |
| Volts | 115/208-230 |
| Weight | 25 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Galco | 5KC46LN0158-MARA | 98.76 | 1 | In Stock | | Marathon Electric | 25.0 | 98.76 @ 1 |
 | Dealers Electric | 5KC46LN0158 | 299.75 | 1 | In Stock | | Marathon Electric | 25.0 | 299.75 @ 1 |
| AmazonTP | B076FB1X4F | 313.41 | 1 | In Stock | 2 | MARATHON MOTORS | | 313.41 @ 1 |
 | sustainablesupply.com | C2903312 | 370.1 | 1 | In Stock | | Marathon | 24.76 | 370.1 @ 1 |
 | Zoro | G5649813 | 370.73 | 1 | In Stock | | Marathon Motors | 24.76 | 370.73 @ 1 |
 | simsupply.com | ZO-G5649813 | 550.76 | 1 | In Stock | | Marathon Motors | | 550.76 @ 1 |
 | Raptor Supplies | AD6NXP | 745.1048475 | 1 | In Stock | | MARATHON MOTORS | | 745.1048475 @ 1 |
