- mpn5KC48UN6052X
- brandname: Marathon Motors
- manufacturername: Marathon Motors

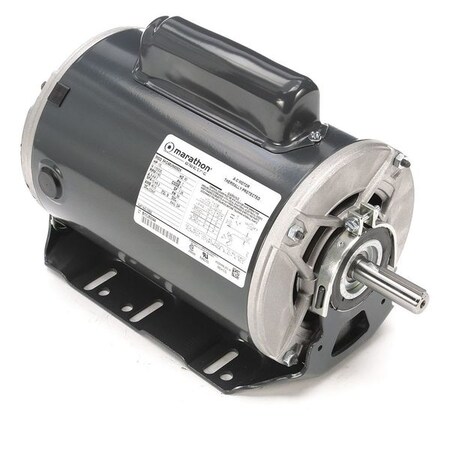

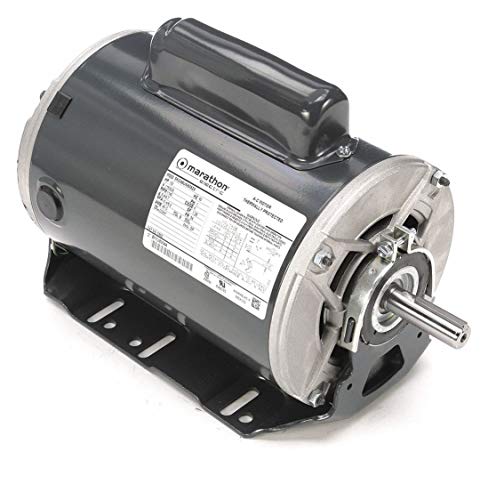

Marathon Motors 1/2 HP General Purpose Motor,Capacitor-Start,1140 Nameplate RPM,Voltage 115/230,Frame 56
- Brand: CAI - MARATHON MOTORS
- PartNumber: 5KC48UN6052X
- PackageQuantity: 1
- Manufacturer: CAI - MARATHON MOTORS
- Label: CAI - MARATHON MOTORS
Attributes
| Key | Value |
|---|
| Classification | Fan and Blower Duty |
| Composition | Rolled Steel |
| Country of Origin (subj. | Multiple |
| Duty | Continuous |
| Efficiency % | 57.5 % |
| Enclosure | ODP, Open |
| Family Series | Marathon Electric Motors |
| Frame | 56 |
| Frame Material | Rolled Steel |
| Frame Remarks | Resilient Base |
| Full Load Amps | 9.4/4.7 |
| Gross Weight | 0 lbs |
| Horsepower | 1/2 hp |
| HP | 1/2, .50 |
| Hz | 60 |
| Ins. Class | B |
| Inverter Rated | No |
| Item | General Purpose Motor |
| Item Condition | Factory New |
| Item Number | 5KC48UN6052X |
| Kilowatts | 0.37 kW |
| Length Less Shaft | 10-7/8" |
| Manufacturer | Marathon Electric |
| Manufacturer Part Number | C552 |
| Manufacturers Warranty . | 1 yr. |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Cradle Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | Auto |
| Mounting Type | Resilient Mount |
| Nameplate RPM | 1140 |
| NEMA Frame | 56 |
| Net Weight | 36 lbs |
| No. of Speeds | 1 |
| Nominal Efficiency | 57.5% |
| Nominal Voltage | 120 VAC, 240 VAC |
| Overall Length | 12-3/4" |
| Phase | 1 |
| RPM | 1200, 1,140 RPM |
| RPM Group | 1101-1200 |
| RPM Range | 1101-1200 |
| Service Factor | 1.25 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1-7/8" |
| Standards | UL (E14133), CSA (MC236. |
| Voltage | 115/230 |
| Voltage (AC) | 110-120 VAC, 230 VAC |
| Voltage Compatibility | 115, 120, 230, 240, 115. |
| Volts | 115/230 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Galco | 5KC48UN6052X-MARA | 132.64 | 1 | In Stock | | Marathon Electric | 36.0 | 132.64 @ 1 |
 | Zoro | G5682327 | 425.93 | 1 | In Stock | 5 | Marathon Motors | | 425.93 @ 1 |
 | Dealers Electric | 5KC48UN6052X | 529.03 | 1 | In Stock | | Marathon Electric | 36.0 | 529.03 @ 1 |
 | Raptor Supplies | AD6NWT | 872.7956055 | 1 | In Stock | | MARATHON MOTORS | | 872.7956055 @ 1 |
