Marathon Electric B402

B0042GEP22

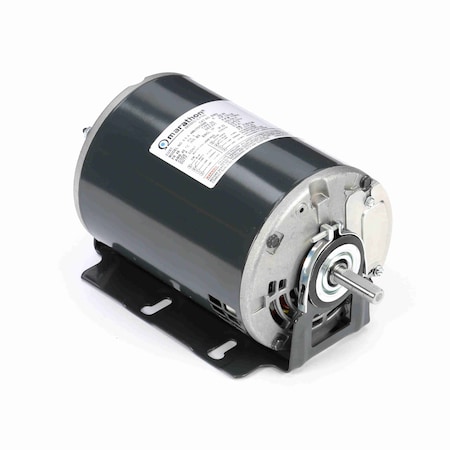

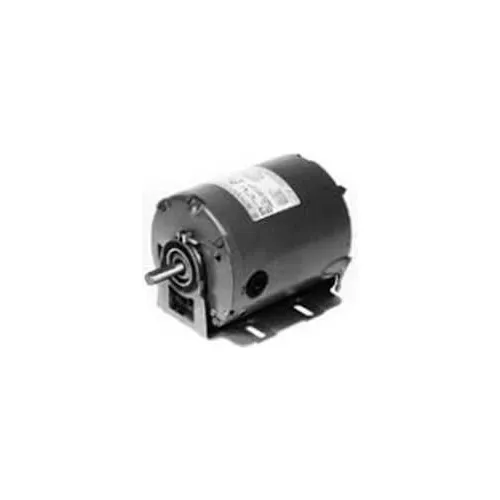

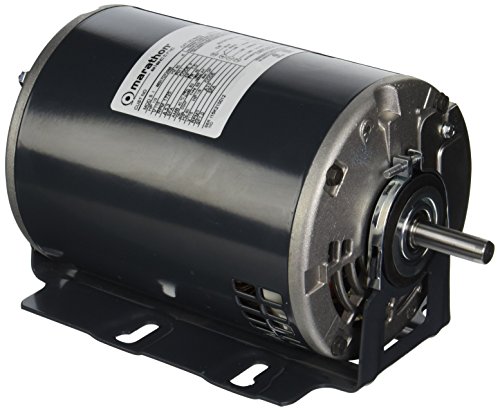

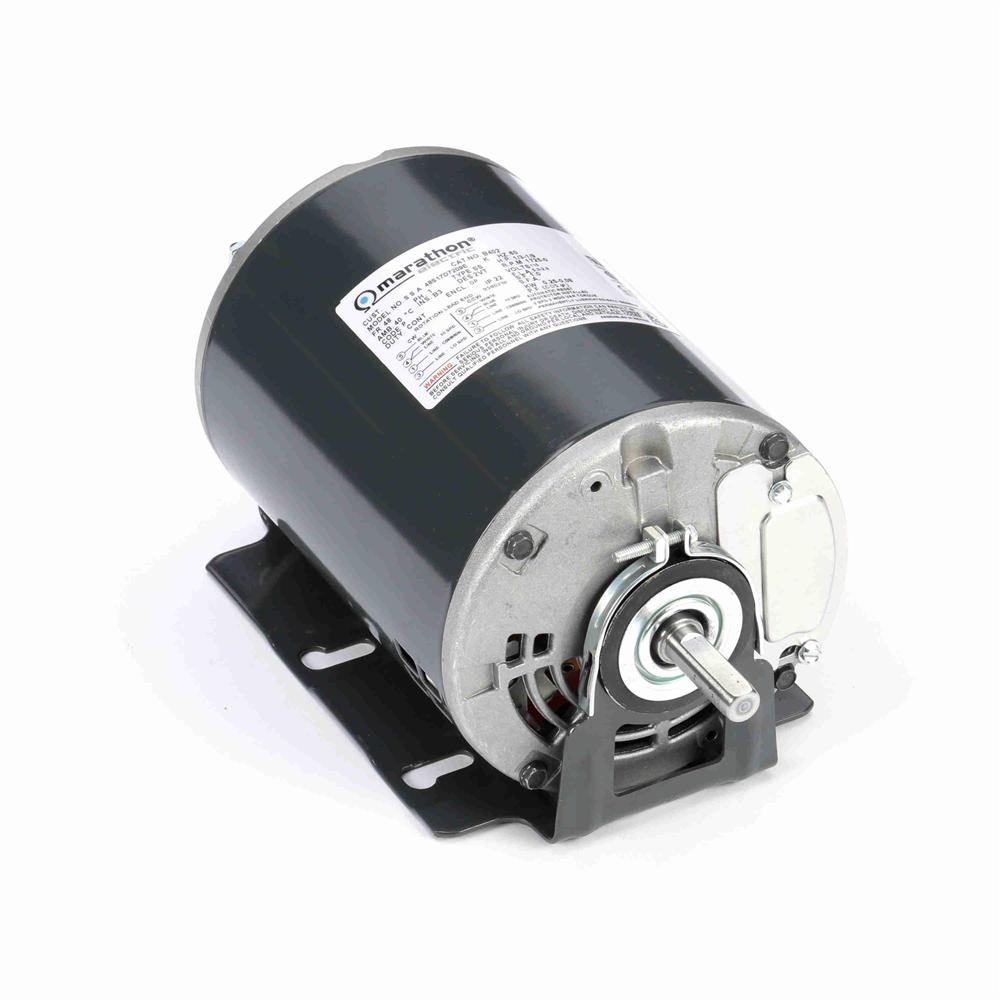

Marathon B402 48Y Frame Totally Enclosed 48S17D7209 Attic Fan Motor, 1/3 hp, 1800/1200 RPM, 115 VAC, 1 Split Phase, 2 Speeds, Ball Bearing, Resilient Base

Marathon B402 48Y Frame Totally Enclosed 48S17D7209 Attic Fan Motor, 1/3 hp, 1800/1200 RPM, 115 VAC, 1 Split Phase, 2 Speeds, Ball Bearing, Resilient Basezoom

Attributes

Key Value
Alternate Mfr Part Numb.048S17D7209
Amps5.3,2.9, 5.3/2.9
applications:Attic Fan
ApprovalsCE, CSA
base rpm:1800 rpm
Bearing TypeBall
BearingsBall
BrandMarathon
C-Dimension10.31 (in.)
Catalog NumberB402
CEY
CompositionRolled Steel
CSAY
DE Bearing TypeBall
DEM ReferenceNOHP
DutyContinuous
duty / condition type:Continuous Duty
Duty CycleContinuous
Efficiency0.595
Efficiency %59.5 %
Electrical TypeSplit Phase
EnclosureODP, Drip Proof
Enclosure MaterialSteel
Enclosure TypeODP (Open Dripproof), D.
enclosure type:DPAO (Drip-Proof Air Ov.
Family SeriesMarathon Electric Motors
Frame48
Frame MaterialRolled Steel
frame material:Rolled Steel
frame size:48Y
Frame Type48
Frequency60, 60 Hz
frequency rating:60 Hz
full load current:5.30 / 2.90 A
full load efficiency:59.50 %
Gross Weight0 lbs
Horsepower1/3 hp
HP1/3, 1/9
Hz60
Insulation ClassB
insulation class:B
IP Code22
ip rating:12
Item NumberB402
Kilowatts0.25 kW
KVA CodeP
ManufacturerMarathon Electric
Manufacturer Model #048S17D7209
Manufacturer Part Number048S17D7209
Max Ambient40?C
Maximum Ambient Tempera.40? C
motor category:Two Speed Motor
Motor Diameter5-5/8"
motor horsepower:0.33 hp / 0.11 hp, 1/3 .
Motor OrientationHorizontal
motor phase:1 ph
Motor Shell Length6.75"
motor supply voltage:115 V
MountingBase
Mounting OrientationHorizontal
Mounting TypeResilient Base
mounting type:Resilient Base
NEMA Frame48
Net Weight21 lbs
Number of Poles4, 6
Number of Speeds2
ODE Bearing TypeBall
Overall Length10.31", 10.31 "
overall length (c-dimen.10.31 in
Phase1
Product CategoryHVAC/R Motors > HVAC/R.
Product TypeSplit Phase
RotationReversible, Selective C.
RPM1700 - 1800, 1200/1800,.
RPM (Nameplate)1725
RPM (Number of Poles)N/A
Service Factor1
service factor:1.00
Shaft Diameter0.5 ", 1/2 (in.), 1/2"
shaft diameter:0.50 in
Shaft Extension1.56 (in.)
Shaft Length1.56"
Shaft TypeNEMA 48
Ship Weight21 lbs.
Speeds2
standards met:UL, CSA
synchronous rpm:1800 rpm / 1200 rpm
Thermal ProtectionAutomatic
thermal protection:Automatic
Type of Overload Protec.Automatic
ULNo
Voltage115
Voltage (AC)115 VAC
Volts115
weight:21 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comB402174.01In StockMARATHON174.0 @ 1
thumbzoomasapelectricmotors.comMARB402218.271In StockMARATHON218.27 @ 1
thumbzoommotionindustries.com04739860222.181In StockMarathon Electric222.18 @ 1
thumbzoomapexindustrialautomation.comB402234.86140Marathon234.86 @ 1
thumbzoomGalcoB402-MARA241.041In StockMarathon Electric21.0241.04 @ 1
thumbzoomMRO Supply2269391243.571In StockMarathon Electric243.57 @ 1
thumbzoomcshincorporated.comMB402245.781In StockMarathon21.0245.78 @ 1
us.rs-online.com72650252271.511In StockMarathon Motors271.51 @ 1
thumbzoomDreisilkerMA-RBC-B402297.451In StockMarathon297.45 @ 1
thumbzoomemotorpro.comB402298.971In StockMarathon21.0298.97 @ 1
thumbzoomNational Supply NetworkB868654303.941In StockMARATHON MOTORS303.94 @ 1
thumbzoomGlobal IndustrialWBB868654305.951In StockMarathon Motors305.95 @ 1
thumbzoommidwestapplianceparts.comB402-MT-P310.081In StockMarathon310.08 @ 1
thumbzoomcbtcompany.comB402322.031In StockMarathon Electric Motors322.03 @ 1
industrialmotors.comB402322.2133MARATHON ELECTRIC322.2 @ 1
thumbzoomZoroG2627840365.551In Stock10Marathon365.55 @ 1
thumbzoomGuardianMARSB402373.231In StockMarathon373.23 @ 1
