| Bearing Protection | Shaft Shields |
| Body Dia. | 6.4 in |
| Bolt Circle Dia. | 5 7/8 in |
| Country of Origin (subject to change) | China |
| Duty Cycle | Continuous |
| Frame | 56J |
| Full Load Amps, Full Load Amps @ 50Hz | 6.8-6.6/3.3 |
| Height | 6 7/16 in |
| HP, HP @ 50Hz | 2 |
| Hz | 60/50 |
| Ins. Class | B |

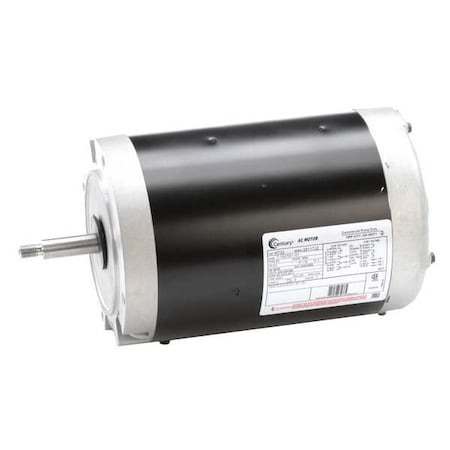

| Item | General Purpose Pump Motor |
| Length Less Shaft | 10 1/4 in |
| Max. Ambient Temp. | 104 Degrees F |
| Max. SF Amps | 6.8-6.6/3.3 A |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Type | Face |
| Motor Service Factor, Service Factor @ 50Hz | 1.2 |
| Motor Shaft Design | Threaded |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection, NEMA Design | None |
| Nameplate RPM, RPM @ 50Hz | 3,450/2,850 |
| No. of Speeds | 1 |
| Overall Length | 12 7/8 in |
| Phase | Three |
| RPM Range | 3,001-3,600 |
| Shaft Dia. | 5/8 in |
| Shaft Length | 2 5/8 in |
| Shaft Material | Stainless Steel |
| Standards | CSA Certified, UL Recognized |
| Usable @ 200V | Yes |
| Usable @ 208V | No |
| Voltage | 200-230/460V AC |
| Voltage @ 50Hz | 200-230/460 |
| Voltage Compatibility | 200-230/440V AC, 200-230/460V AC, 200-230V AC, 200V AC |
| Weight | 34 lb |
