MARKAR FM100-001-313-HT-MP

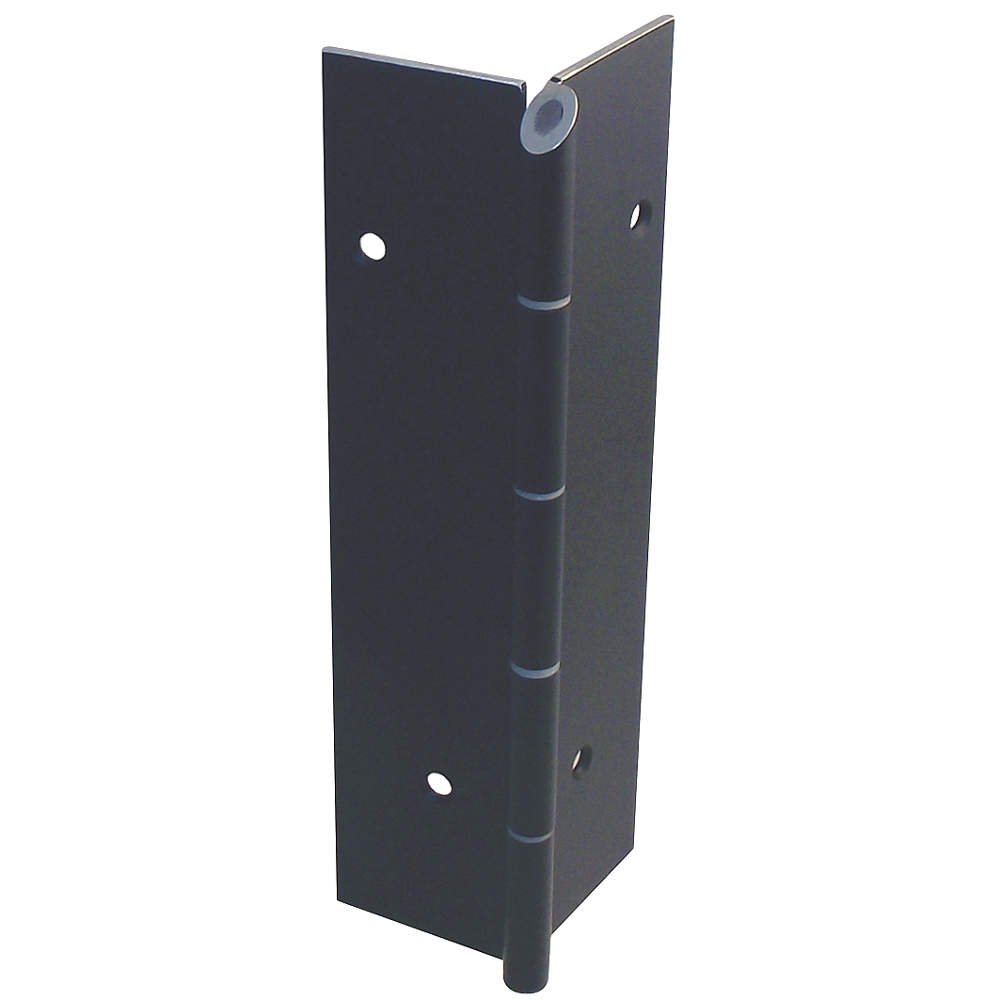

Markar edge-mounted aluminum pin-and-barrel-type continuous butt hinge provides support for the entire height of the door, making it an excellent choice for use in high-traffic, high-abuse areas. Extruded using 30% more aluminum than most geared hinges, giving it exceptional strength and durability in a lightweight construction. A nylon bearing at each knuckle separation helps provide smooth, quiet, self-lubricating operation. This listing is for each. This item requires special shipping, additional charges may apply. Technical Specification Item Continuous Hinge Ligature Resistant Yes Material Aluminum Range of Motion 180 Degrees Finish Dark Bronze Holes With Load Capacity 540 lb. Orientation Left Hand Overall Knuckle Height 2 Door Leaf Height 84 Frame Leaf Height 84 Door Leaf Width 1-3/4 Frame Leaf Width 1-15/16 Door Leaf Thickness 0.125 Frame Leaf Thickness 0.125 Required Door Thickness 1-3/4 Length 84 Hardware Included Hole Spacing 6 Holes per Leaf 21 Mounting Full Mortise Pin Dia. 3/16 Pin Material Stainless Steel Pin Type Hospital Tip Standards ANSI/BHMA Standard A 156.26 Grade 2 Overall Width 4-11/16
