Martin Sprocket 1 C 70 SF

B00BC8TAO6

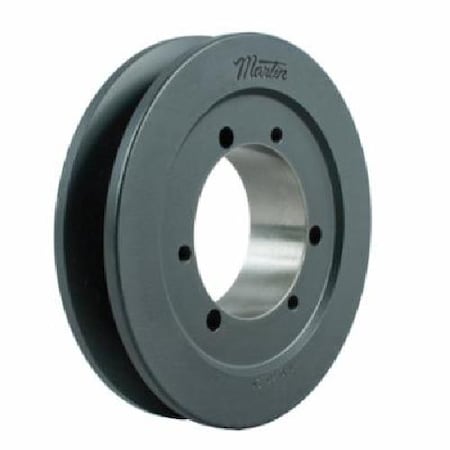

Martin Sprocket 1 C 70 SF CONVENTIONAL QD SHEAVE

Martin Sprocket 1 C 70 SF CONVENTIONAL QD SHEAVEzoom

Attributes

Key Value
Belt Cross SectionC
belt section size:C
Bore TypeBushed
bore type:QD Bushed
Bushed ForSF
bushing bore range:0.5000 to 2.9375 in
Bushing Maximum Bore Si.2.3125
Bushing MountStandard ; Reverse
bushing series:SF
Bushing StyleQD
ConditionNew
Country of Origin (subj.United States
Length Through Bore2.0625 "
ManufacturerMartin Sprocket & Gear
manufacturer upc number:697950084985
MaterialCast Iron
material:Cast Iron
mounting type:Reversible, STD
Number of Grooves1
Outer Diameter7.4 in
Outside Dia7.400"
overall width:1-3/8 in
Pitch Diameter7 "
pitch diameter:7.0000 in
pulley construction:Solid
Sheave ConstructionSolid
sheave drawing type:C
Sheave Face Width1.375 "
Sheave TypeConventional
storage dimension heigh.1.875 in
storage dimension lengt.7.3125 in
storage dimension width:7.3125 in
UPC Code697950084985
Weight8.010000, 9.2 lbs
weight:9.2 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
us.rs-online.com72478942177.871In StockMartin Sprocket & Gear9.2177.87 @ 1
thumbzoommotionindustries.com00714767180.21In StockMartin180.2 @ 1
thumbzoomMRO Supply253729185.681In StockMartin Sprocket185.68 @ 1
thumbzoomPurvis1 C 70 SF193.961In StockMartin193.96 @ 1
thumbzoomapexindustrialautomation.com1 C 70 SF201.8314Martin Sprocket201.83 @ 1
thumbzoomindustrialrefrigerationparts.com1 C 70 SF206.781In StockMartin Sprocket & Gear8.01206.78 @ 1
thumbzoomZoroG3345217208.241In StockMartin Sprocket & Gear208.24 @ 1
thumbzoomcbtcompany.com1 C 70 SF220.791In StockMartin Sprocket & Gear220.79 @ 1
