Martin 24B14

B00452UAGI

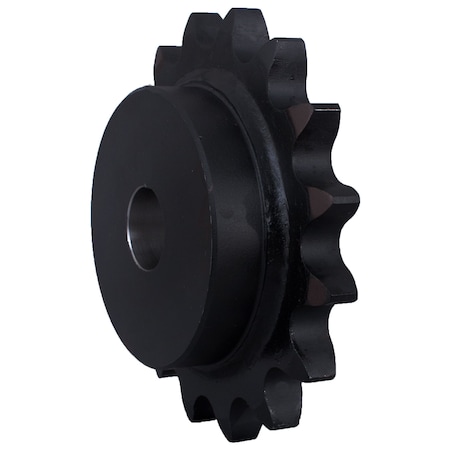

Martin Roller Chain Sprocket, Reboreable, Type B Hub, Single Strand, 24B Chain Size, 38.1mm Pitch, 14 Teeth, 32mm Bore Dia., 189.79mm OD, 127mm Hub Dia., 24.13mm Width

Martin Roller Chain Sprocket, Reboreable, Type B Hub, Single Strand, 24B Chain Size, 38.1mm Pitch, 14 Teeth, 32mm Bore Dia., 189.79mm OD, 127mm Hub Dia., 24.13mm Widthzoom

Attributes

Key Value
Bore Dia. - Sprockets5.7409388111524
bore diameter:32 mm
bore range:25 mm to 86 mm
Bore TypeReboreable
bore type:Reboreable
Caliper Diameter145.819845803271
caliper diameter:145.8 mm
chain / sprocket type:Metric Roller Chain
Chain Number24B-1
chain number & pitch:24B / 1-1/2 in
Chain Roller Dia.25.4
chain roller diameter:25.400 mm
chain roller width:25.40 mm
Chordal Pitch38.1
Country of Origin (subj.United States
Hardened TeethNo
hardened teeth:Non-Hardened Teeth
Hub Dia.125.8316
Hub Dia. (In.)4.954
hub outside diameter:126 mm
hub style:B
Length through Bore59.9948
Length through Bore (In.2.362
length through bore:60 mm
manufacturer upc number:697950405582
MaterialSteel
material:Steel
Max. Bore88
Max. Bore (In.)3.46456692913386
maximum bore diameter:88 mm
Min. Bore32.0167
number of hubs:1
Number of Rows1
number of strands acros.1
Number Of Teeth14
Number of Teeth14
number of teeth:14
Outside Dia193.445 mm
Outside Dia.24.13
Outside Dia. (In.)0.95
outside diameter:193.4 mm
Pin Dia.25.4
Pitch38.1, 38.100 mm
Pitch Dia.171.219845803271
Pitch Dia. (In.)6.7409388111524
Pitch Diameter171.220 mm
pitch diameter:171.2 mm
Roller Width25.4
Sprocket Hub TypeB
storage dimension heigh.2.36 mm
storage dimension lengt.7.62 mm
storage dimension width:7.62 mm
Storage Height2.362
Storage Length7.6159388111524
Storage Width7.6159388111524
Surface TreatmentProtective Coating
surface treatment:Protective Coating
Tooth Thickness24.13
tooth thickness:24 mm
tooth width:24 mm
TypeMetric Roller Chain
Weight15.217
weight:15.217 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomindustrialzone.com24B14199.352In StockMartin1.0199.35 @ 2
thumbzoommotionindustries.com00205223270.581In StockMartin270.58 @ 1
thumbzoomZoroG2533444325.01In Stock14Martin Sprocket & Gear15.217325.0 @ 1
factorysupplyoutlet.comZA33DW355.691In Stock25MARTIN355.69 @ 1
thumbzoomMRO Supply260422379.721In StockMartin Sprocket379.72 @ 1
thumbzoomPurvis24B14401.981In StockMartin401.98 @ 1
