Martin TC12144

B004BDO742

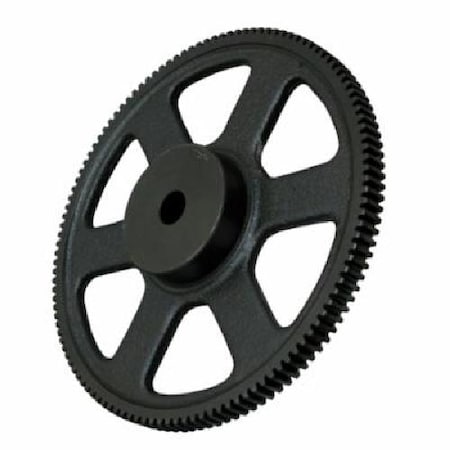

Martin TC12144 Spur Gear, 20? Pressure Angle, Cast Iron, Inch, 12 Pitch, 1" Bore, 12.166" OD, 1.000" Face Width, 144 Teeth

Martin TC12144 Spur Gear, 20? Pressure Angle, Cast Iron, Inch, 12 Pitch, 1" Bore, 12.166" OD, 1.000" Face Width, 144 Teethzoom

Attributes

Key Value
Bore Diameter1 in ; 25.4 mm
Bore TypeReboreable
Class6
Diametral Pitch12
External Length1" (25.4mm)
Face Width (In.)1
Gear TypeB3
Hub Dia. (In.)2.75
Hub Outside Diameter2.75" (69.9mm)
Hub Projection (In.)1
Hub StyleB
Length through Bore2
Length Through Bore2" (50.8mm)
MaterialCast Iron
Max. Bore1.6875
Maximum Bore Diameter1.6875" (42.9mm)
Min. Bore1
Number of Teeth144
Number Of Teeth144
Outer Diameter12.166" (309mm)
Outside Dia12.166"
Outside Dia. (In.)12.166
Pitch12
Pitch Dia. (In.)12
Pitch Diameter12" (304.8mm)
Pressure Angle20 Degrees PA
Pressure Angle (Deg.)20
Storage Height2
Storage Length12.166
Storage Width12.166
StyleB
UPC Code697950293882
Weight10.4, 10.3 lbs. (4.7 kg)
Width0 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomindustrialzone.comTC12144249.371In StockMartin1.0249.37 @ 1
us.rs-online.com72332856279.621In StockMartin Sprocket & Gear10.3279.62 @ 1
thumbzoomcbtcompany.comTC12144282.111In StockMartin Sprocket & Gear282.11 @ 1
thumbzoomMRO Supply251540293.731In StockMartin Sprocket293.73 @ 1
thumbzoomZoroG3360249362.561In Stock14Martin Sprocket & Gear10.4362.56 @ 1
thumbzoomPurvisTC12144365.71In StockMartin365.7 @ 1
thumbzoommotionindustries.com00371847400.441In StockMartin400.44 @ 1
