Mastervolt 28011500
Mastervoltzoom
manufacturer:
Description:

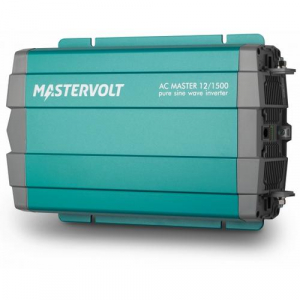

<p><strong>28011500, AC Master 12/1500 Inverter (230 V, Schuko) </strong> </p> <p>Mastervolt sine wave inverters have proven themselves under the most extreme conditions for over 25 years. Our inverter family consists of AC Master, Mass Sine and Mass Sine Ultra models, ranging from 300 watt up to 40 kW. The AC Master is ideal for small and medium-sized applications, while Mass Sine and the advanced Mass Sine Ultra inverters are mainly intended for larger systems and for professional purposes. </p> <p><strong>Features </strong> </p> <ul><li>Pure sine wave technology protects sensitive equipment. </li> <li>Delivers full output at high peak power under the most demanding conditions. </li> <li>Automatic power saving system for extended runtime. </li> <li>Compact and lightweight design, saving valuable installation time. </li> <li>Reliable and safe operation; protected against over-temperature, overload, short circuit, high or low battery voltage. </li> <li>Variable speed fan for quiet operation at low power. </li> <li>Optional remote control for instant switch off of the inverter and all connected equipment. </li> <li>Convenient plug connection for all models, 2500/3500 Watt models also hard wired. </li> </ul> <p><strong>In addition, the 2500/3500 Watt models offer: </strong> </p> <ul><li>Combine 2 up to 15 units to obtain high power or 3-phase systems. </li> <li>Integrated transfer system, switches automatically between AC power sources. </li> </ul> <p><strong>Applications </strong> </p> <p>Both recreational and semi-professional use, where grid power varies or is unavailable. Applications include lighting, appliances, electric cooking and power tools. For (mobile) applications in your home, office or service vehicle, or during your holidays. </p>

Attributes

Key ^Value
AC connectionplug connection EU (Schuko), with UK plug (code 28211500) or with NZ/AU plug (code 28411500)
Alarmspotential free alarm contact
ApprovalsCE, E-mark, RCM
Continuous power at 25 ?C / 77 ?F, cos phi 1, Continuous power at 40 ?C / 104 ?F, cos phi 11500 W
Coolingtemperature and load controlled fan
Cos phiall power factors allowed
Display/read-outLED indication: battery voltage, load level, status
Efficiency93 %
Harmonic distortion typical< 3 %
High battery voltage, switches off at16.5 V
High battery voltage, switches on at14.5 V
Input current (nominal load)150 A
Low battery voltage, switches off at10.5 V
Low battery voltage, switches on at12.5 V
MasterBus compatibleno
Minimal cable size50 mm?
Minimal DC fuse (slow blow)175 A
No-load power consumption (energy saving mode)< 0.1 A
No-load power consumption (ON mode)< 1.8 A
Nominal battery voltage12 V
Output voltage200/220/230/240 V ? 50/60 Hz (selectable)
Output waveformtrue sine
Peak load (1 min.)< 1730 W
Peak load (1 sec.)< 2650 W
Protection degreeIP21, horizontal wall mounting
Protectionsover-temperature, overload, short circuit, high/low voltage, reverse polarity (fuse)
Recommended battery capacity? 160 Ah
Technologyhigh frequency, input & output fully isolated
