| [Us] Rated Supply Voltage | 24 V DC |
| Ambient Air Temperature For Operation | 0-60 ?C |
| Ambient Air Temperature For Storage | -40-85 ?C |
| Associated Fuse Rating | 2.5 A |
| California Proposition 65 : WARNING: This product can expose you to chemicals including | Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI0712001EN |
| Connections - Terminals | terminal block, 7 poles |
| Diagnostics Run Time | checksum || RAM address || RAM |
| Diagnostics Startup | checksum || RAM || RAM address |
| Environmental Disclosure | ENVPEP071201EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| I/O Words | 30 I/32 O |
| Inrush Current | 30 A 24 V |
| Maximum Buffer Time | 1 ms |
| Maximum Supply Current | 1.6 A 24 V |
| Mercury Free, Reach Free Of Svhc, Rohs Exemption Information | Yes |
| Minimum Load Current | 0 A |
| Module Format | standard |
| Nominal Output Current | 3 A |
| Number Of Port | 2 redundant |
| Output Overvoltage Protection, Short-Circuit Protection | with |
| Output Voltage | 5.1 V |
| Power Dissipation In W | 11 W |
| Product Certifications | GOST || C-tick || DNV || CSA Class 1 Division 2 || UL |

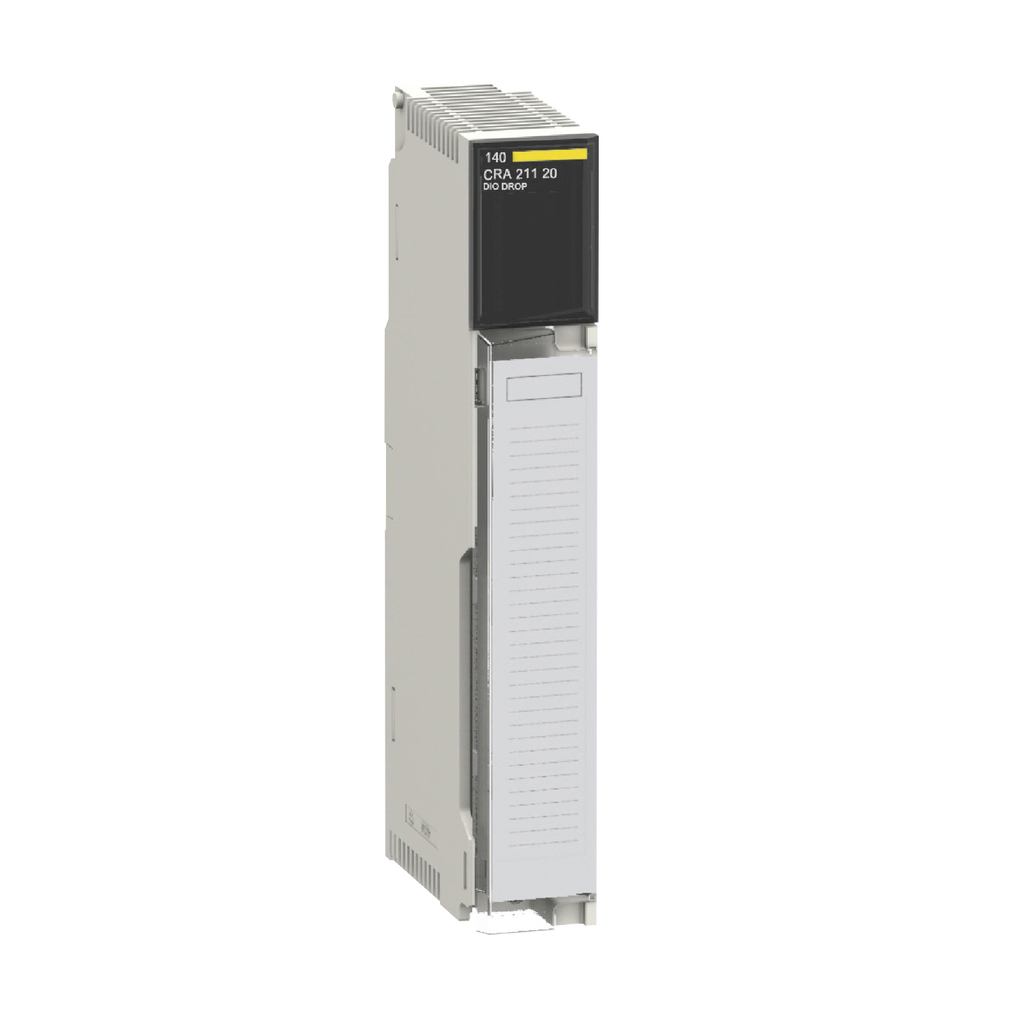

| Product Or Component Type | DIO drop interface |
| Protective Treatment | TC |
| Range Of Product | Modicon Quantum automation platform |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Relative Humidity | 95-95 % without condensation |
| Resistance To Electromagnetic Fields | 10 V/m 80-2000 MHz IEC 801-3 |
| Resistance To Electrostatic Discharge | 4 kV contact IEC 801-2 || 8 kV on air IEC 801-2 |
| Standards | UL 508 |
| Supply Voltage Limits | 20-30 V |
| Sustainable Offer Status | Green Premium product |
| Typical Backplanes | 2 positions || 3 positions || 6 positions || 16 positions || 4 positions || 10 positions |
| Warranty | 18 months |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
