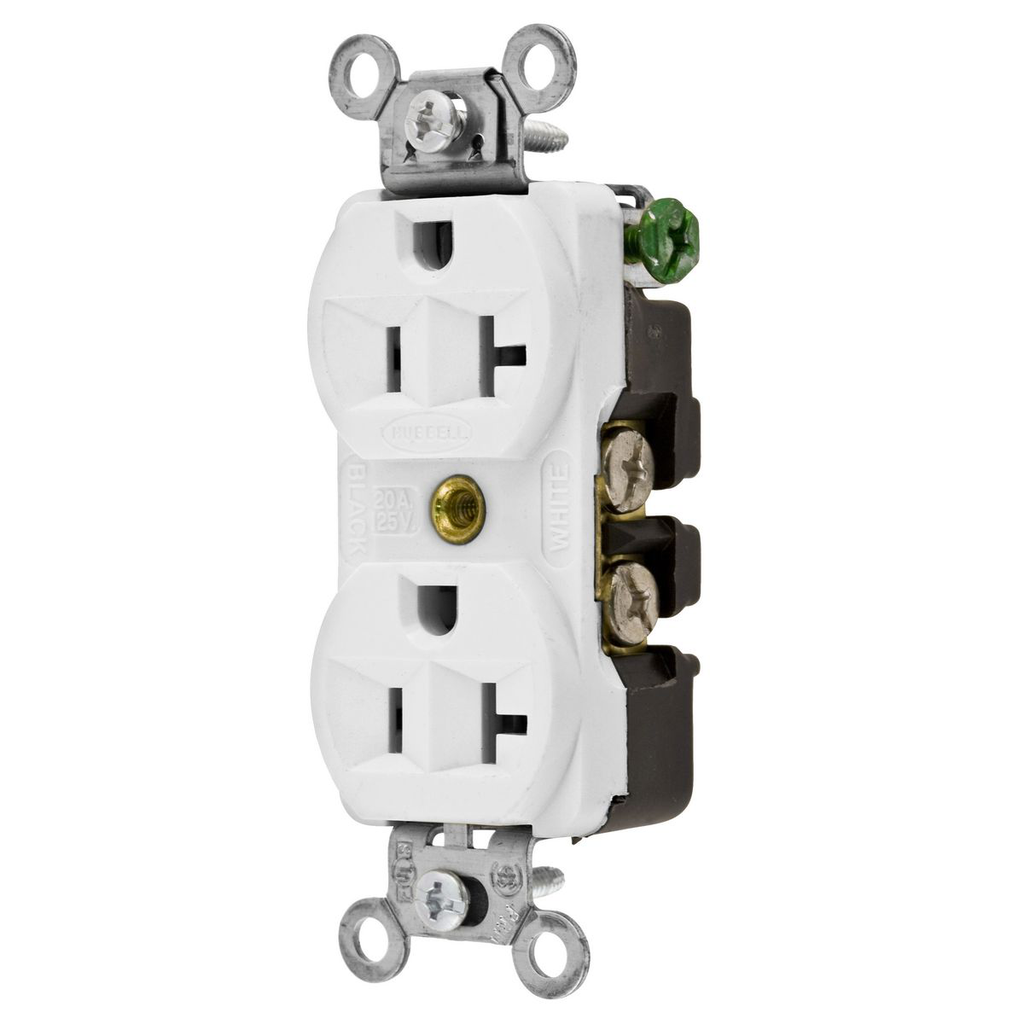

| Amperage Rating, Current / Amperage Rating, Current Rating | 20 A |
| Application | Hubbell-Pro Extra Heavy Duty |
| Class Code | A04 |
| Color | White |
| Connectivity | Back and Side Wired |
| Country of Origin | PR |
| Description - Invoice | RCPT, DUP SB, HUBPRO, 20A 125V, SM , WH |
| Dielectric Strength | Withstands 2,000V minimum |
| Dimensions, Size | 3.28 in x 1.41 in x 1.09 in |
| Display Size | Standard Sized Product |
| Each - Height | 1.100 in |
| Each - Length | 4.000 in |
| Each - Width | 1.300 in |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| EU RoHS Indicator | Yes |
| Freight Class Code | 06168002 |
| Harmonization Code | 8536698000 |
| Height | 1.09 in |
| Horsepower - Maximum | 1 |
| Image Actual Or Representative | A |
| Industry Standard(s), Standard | UL File No. E2186, Certified to CSA 22.2, No. 42 File 285, Fed. Spec. W-C-596, NEMA? WD-6 Compliant |
| Length | 3.28 in |
| Material | Thermoplastic/Composite |
| Material - Mounting Hardware | Screw Mounting |
| Mounting, Mounting Type | Screw Mount |
| MSDS Flag | No |
| NEMA Rating, Nema Rating | 5-20R |
| Number of Poles, Number Of Poles | 2-Pole |
| Number Of Wires, Number of Wires | 3-Wire |
| Operating Temperature | Maximum continuous 75?C and minimum -40?C without Impact |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V-2;Environmental - Operating Temperatures - Maximum continuous 75?C, minimum -40?C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only;Mechanical - Terminal Identification - Terminal wire leads identified in accordance with UL 498 |
| Phase | Single Phase |
| Replaced Catalog Number | 5362WHI;CBRF20WHI;CR5362W |
| Replacement Catalog Number | BRY5362W |
| Series | Hubbell-PRO |
| Special Features | Self Grounding |
| Style | Finder Groove Face |
| Sub Class Code | A04A022 |
| Temperature Rating | Maximum continuous 75?C; minimum -40?C (w/o impact) |
| Type | Standard Duplex |
| Voltage Rating, Voltage Rating Description | 125 V |
| Wattage | 1875 W |
| Weight | 0.2 lb. |
| Width | 1.41 in |
| Wire Size | #12 AWG to #10 AWG |
