| [Uc] Control Circuit Voltage | 12 V AC/DC |
| Ambient Air Temperature For Operation | -18-150 ?F |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1406037EN |
| Contacts Material | silver nickel |
| Contacts Type And Composition | 2 NO + 2 NC |
| Depth | 104 mm |
| Environmental Disclosure | ENVPEP1406037EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Height | 61 mm |
| Hold-In Power Consumption In Va | 2-2 VA |
| Line Rated Current | 10 A |
| Maximum Switching Voltage | 240 V AC |
| Mercury Free, Reach Free Of Svhc, Rohs Exemption Information, Toxic Heavy Metal Free | Yes |
| Mounting Support | socket |
| Pin Number | 8 |
| Product Certifications | CE || UL Recognized || UL Listed |
| Product Compatibility | 8501NR52 || 8501NR51 |

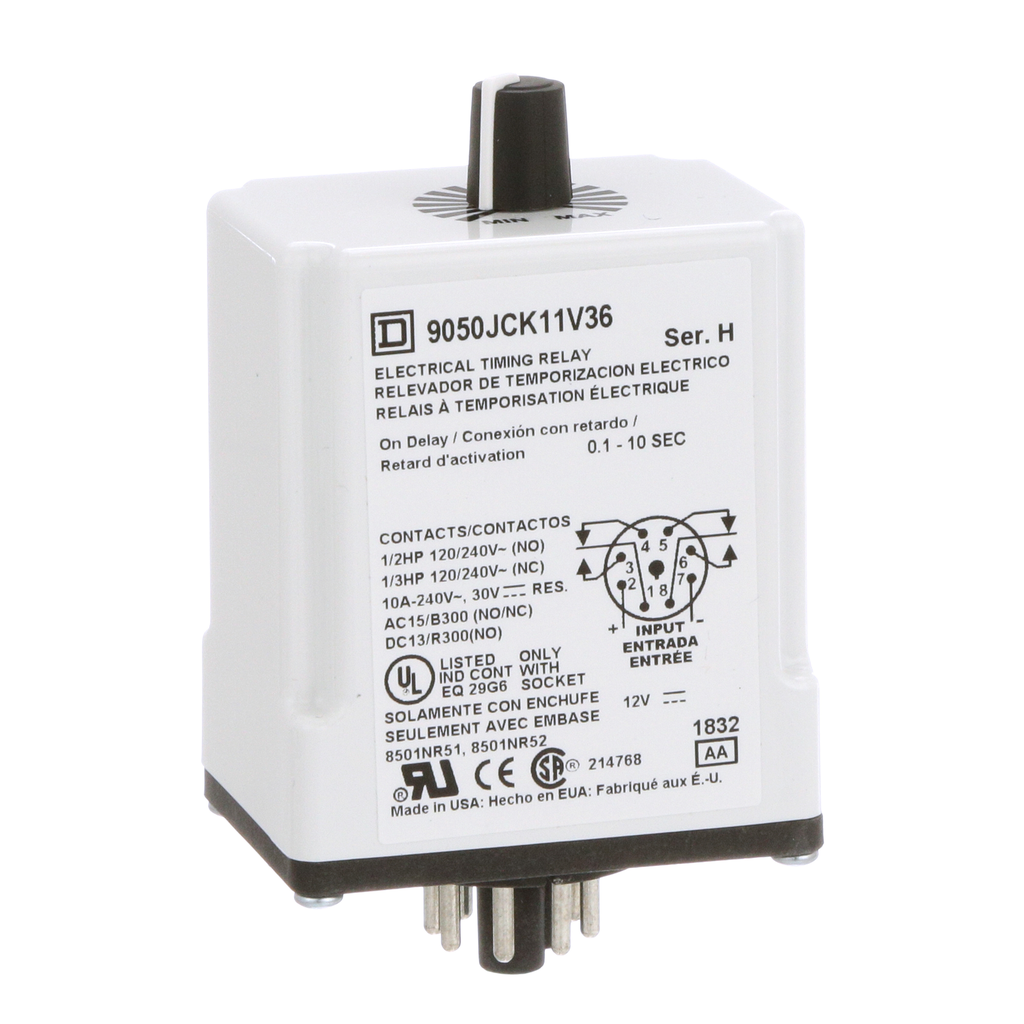

| Product Or Component Type | timer |
| Range Of Product | 9050JCK |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Shape Of Pin | tubular |
| Sustainable Offer Status | Green Premium product |
| Switch Function | DPDT |
| Time Delay Range | 0.1...10 s |
| Time Delay Type | on-delay |
| Warranty | 18 months |
| Width | 43 mm |
