Description:

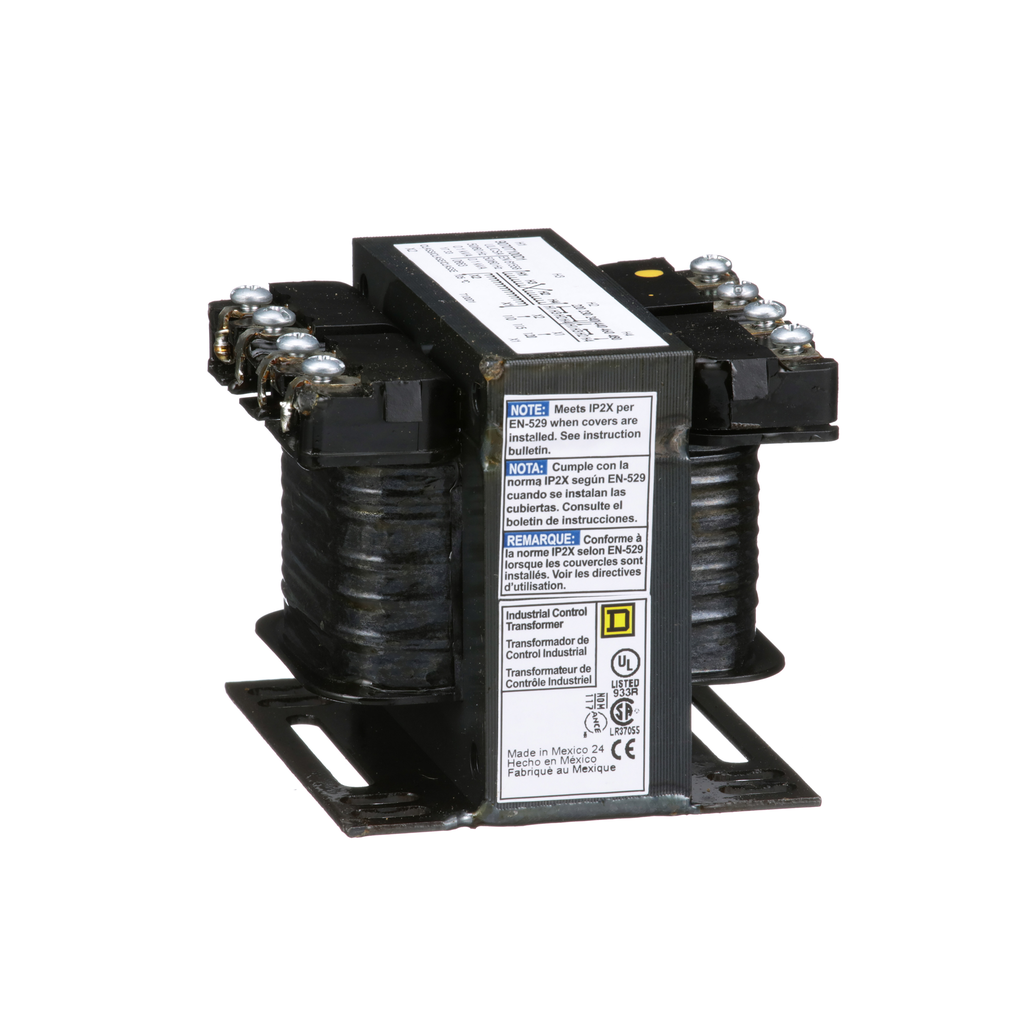

Shop SQUARE D at Mayer. Transformer, Type T, industrial control, 100 VA, 140/480 VAC primary / 120 VAC secondary, 1 phase, 50/60 Hz, 55 ?C rise
Attributes
| Key ^ | Value |
|---|---|
| California Proposition 65 : WARNING: This product can expose you to chemicals including | Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Depth | 3.34 in |
| Electrical Connection | screw clamp terminals |
| Environmental Disclosure | ENVPEP1308008EN |
| Eu Rohs Directive | Compliant |
| Height | 2.89 in |
| Insulation Temperature | 105 ?C |
| Material | copper winding |
| Mercury Free, Pvc Free, Rohs Exemption Information | Yes |
| Nema Degree Of Protection | not rated (open device) |
| Phase | 1 phase |
| Primary Voltage | 240 x 480 V 120 V || 230 x 460 V 115 V || 220 x 440 V 110 V |
| Product Certifications | UL listed file E61239 || CSA file LR37055 guide 184-N-90 |
| Product Compatibility | FSC1 |
| Product Or Component Type | Industrial Control Transformer |
| Range Of Product | T |
| Rated Power In Va | 100 VA UL || 100 VA CSA || 100 VA NOM || 100 VA CE |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Sustainable Offer Status | Green Premium product |
| Temperature Rise | 55 ?C |
| Warranty | 10 Years |
| Width | 3.38 in |
