Attributes
| Key ^ | Value |
|---|---|
| [Us] Rated Supply Voltage | 220 V |
| Ambient Air Temperature For Operation | -20-40 ?C |
| Back Emf Constant | 88 V/krpm 20 ?C |
| Brake Pull-In Power | 49.6 W |
| California Proposition 65 : WARNING: This product can expose you to chemicals including | Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Centring Collar Depth, Distance Shaft Shoulder-Flange | 4 mm |
| Centring Collar Diameter | 114.3 mm |
| China Rohs Regulation | X |
| Circle Diameter Of The Mounting Holes | 200 mm |
| Circularity Profile | ENVEOLI1504002EN |
| Continuous Power | 4500 W |
| Continuous Stall Current | 19.68 A |
| Continuous Stall Torque, Nominal Torque | 28.65 N.m LXM26D 22.9 A, 220 V, three phase || 28.65 N.m LXM28... 22.9 A, 220 V, three phase |
| Device Short Name | BCH2 |
| Electrical Connection | connector MIL |
| Environmental Disclosure | ENVPEP1504002EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Feedback Type | 20 bits single turn absolute encoder |
| Holding Brake | without |
| Ip Degree Of Protection | IP50 IM V3 || IP65 IM B5, IM V1 |
| Key Width | 10 mm |
| Length | 235 mm |
| Maximum Axial Force Fa | 497 N |
| Maximum Current Irms | 57.6 A LXM26D 4.5 kW, 220 V || 57.6 A LXM28... 4.5 kW, 220 V |
| Maximum Mechanical Speed | 3000 rpm |
| Maximum Permanent Current | 22.8 A |
| Maximum Radial Force Fr | 1200 N 1500 rpm |
| Mercury Free, Pvc Free, Reach Free Of Svhc, Rohs Exemption Information | Yes |
| Motor Flange Size | 180 mm |
| Mounting Holes Diameter | 13.5 mm |
| Mounting Support | asian standard flange |
| Net Weight | 23.64 kg |
| Nominal Output Power | 4500 W LXM26D 22.9 A, 220 V, three phase || 4500 W LXM28... 22.9 A, 220 V, three phase |
| Nominal Speed | 1500 rpm LXM26D 22.9 A, 220 V, three phase || 1500 rpm LXM28... 22.9 A, 220 V, three phase |
| Number Of Motor Stacks | 3 |
| Number Of Mounting Holes | 4 |
| Peak Stall Torque | 71.62 N.m LXM26D 22.9 A, 220 V, three phase || 71.62 N.m LXM28... 22.9 A, 220 V, three phase |
| Phase | three phase |
| Product Compatibility | LXM26D servo drive 4.5 kW, 220 V, three phase || LXM28... servo drive 4.5 kW, 220 V, three phase |

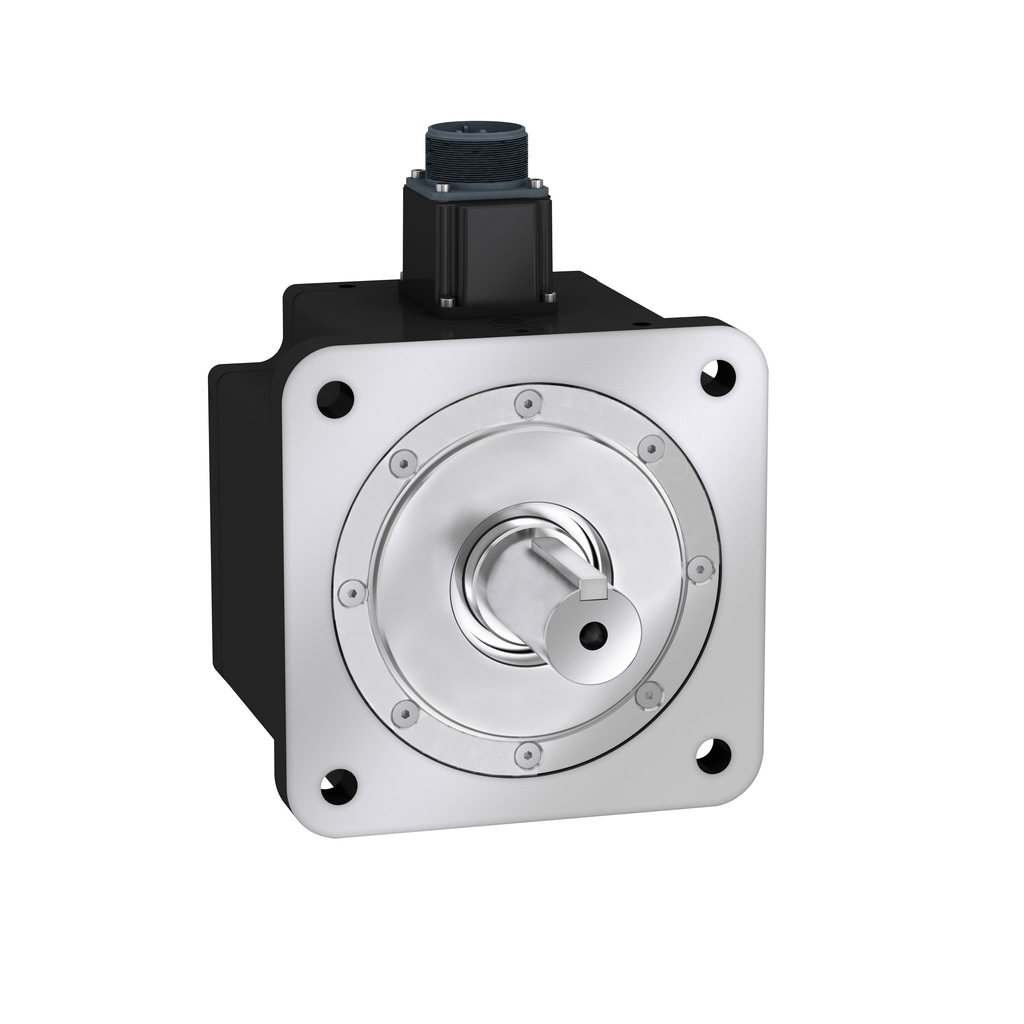

| Product Or Component Type | servo motor |
| Range Compatibility | Lexium 28 |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Rotor Inertia | 73.32 kg.cm? |
| Shaft Diameter | 35 mm |
| Shaft End | keyed |
| Shaft Length | 79 mm |
| Stator Electrical Time Constant | 19.1 ms 20 ?C |
| Stator Inductance | 3.8 mH 20 ?C |
| Stator Resistance | 0.199 Ohm 20 ?C |
| Sustainable Offer Status | Green Premium product |
| Torque Constant | 1.46 N.m/A 20 ?C |
| Type Of Cooling | natural convection |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
