| Ambient Air Temperature For Operation | 0-60 ?C |
| Ambient Air Temperature For Storage | -40-85 ?C |
| Application Specific I/O | counter || SSI encoder || serial link || HART || accurate time stamping || motion control |
| Application Structure | 1 cyclic/periodic master task || 1 periodic fast task |
| California Proposition 65 : WARNING: This product can expose you to chemicals including | Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Checks | process control |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1312016EN |
| Communication Module Processor Capacity | 6 Ethernet communication module || 24 AS-Interface module |
| Communication Service | DIO scanner || RIO scanner |
| Control Channels | programmable loops |
| Current Consumption | 295 mA 24 V DC |
| Directives | 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility |
| Environmental Characteristic | hazardous location class I division 2 |
| Environmental Disclosure | ENVPEP1312016EN_V3.pdf |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Integrated Connection Type | 1 Ethernet TCP/IP service port || 2 Ethernet TCP/IP device network || USB type mini B || 1 Ethernet HSBY port |
| Ip Degree Of Protection | IP20 |
| Marking | CE |
| Memory Description | expandable flash, 4 GB data storage || integrated RAM, 10 kB system memory || integrated RAM, 64 MB program and data || integrated RAM, 4096 kB HSBY data |
| Mercury Free, Rohs Exemption Information | Yes |
| Mtbf Reliability | 600000 H |
| Net Weight | 0.849 kg |
| Number Of Distributed Equipment | 64 |
| Number Of Instructions Per Ms | 40 Kinst/ms 100 % Boolean || 60 Kinst/ms 65 % Boolean + 35 % fixed arithmetic |
| Number Of Racks | 1 |
| Number Of Remote I/O Station | 31 - 2 X80 and Quantum drops |
| Operating Altitude | 0...6561.68 ft (0...2000 m) || 2000...5000 m with derating factor |
| Product Certifications | CE || UL || CSA || RCM || EAC || Merchant Navy |

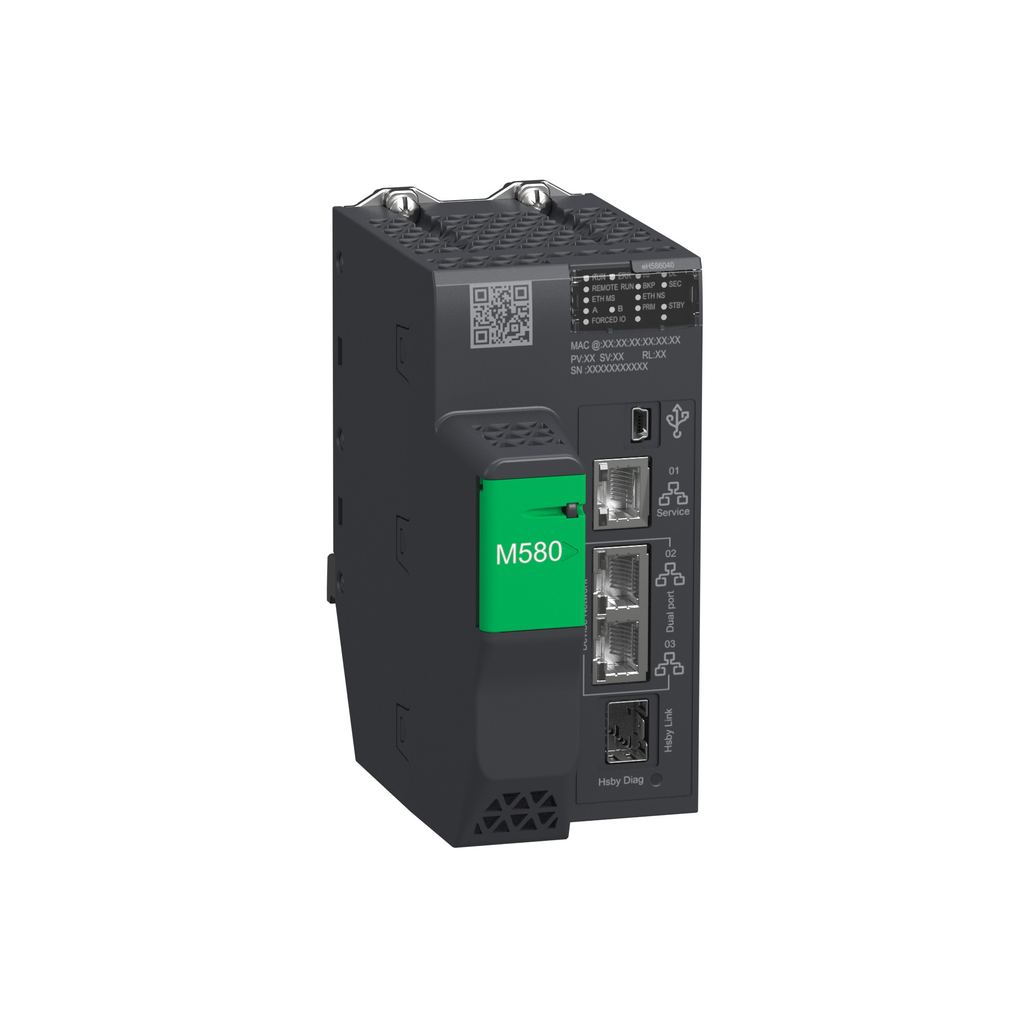

| Product Or Component Type | redundant processor module |
| Range Of Product | Modicon M580 |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Relative Humidity | 5-95 % 55-55 ?C without condensation |
| Shock Resistance | 30 gn |
| Standards | EN 61131-2 || EN/IEC 61010-2-201 || UL 61010-2-201 || CSA C22.2 No 61010-2-201 || IACS E10 || EN/IEC 61000-6-5 || EN/IEC 61850-3 |
| Status Led | 1 LED (Green) processor running (RUN) || 1 LED (Red) processor or system fault (ERR) || 1 LED (Red) I/O module fault (I/O) || 1 LED (Green) download in progress (DL) || 1 LED (Red) memory card or CPU flash fault (BACKUP) || 1 LED (green/red) ETH MS (Ethernet port configuration status) || 1 LED (green/red) Eth NS (Ethernet network status) || 1 LED (Green) peer processor running (REMOTE RUN) || 1 LED (Green) processor ID set to A (A) || 1 LED (Green) processor ID set to B (B) || 1 LED (Green) processor acting as Primary (PRIM) || 1 LED (Green) processor acting as Standby (STBY) || 1 LED (Green) I/O values overrided by user (FORCED IO) || 1 LED (Green) Hot standby link status (Hsby Diag) |
| Supply | internal power supply via rack |
| Sustainable Offer Status | Green Premium product |
| Vibration Resistance | 3 gn |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
